THUMPER
12V/24V RHM Volt Control Box - 1x Accessory 1x Engel 1x 50A Anderson
12V/24V RHM Volt Control Box - 1x Accessory 1x Engel 1x 50A Anderson
SKU:RHSCBV-S-CEA
Couldn't load pickup availability

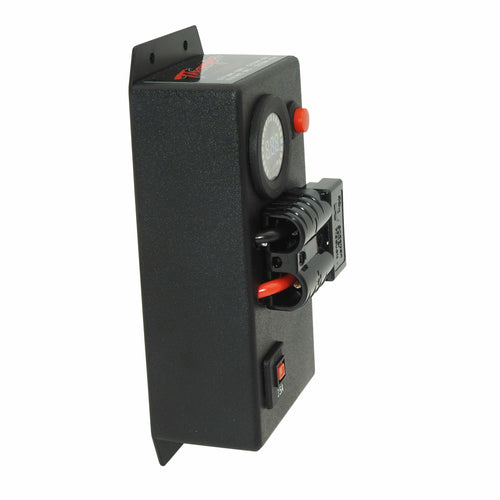

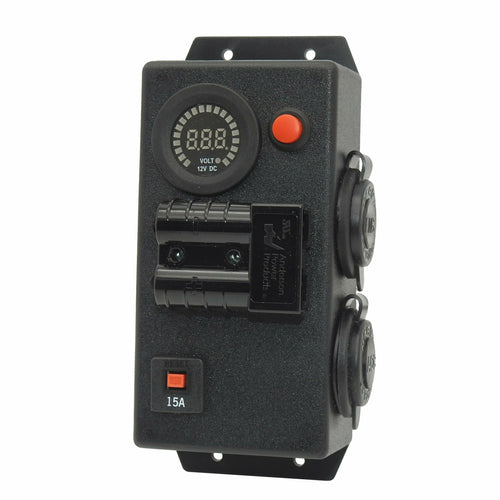

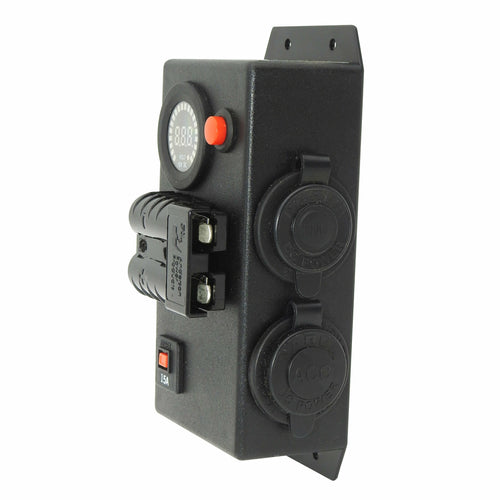

🔌 12V/24V Right Hand Mount Volt Control Box — Accessory Socket, Engel Socket, Volt Meter & 50A Anderson
Compact right hand mount 12V/24V volt control box with stainless steel accessory socket, Engel 2-prong fridge socket, genuine 50A Anderson connector, LCD digital volt meter, push-button display control, built-in 15A circuit breaker, pre-wired 6mm twin core cable, and 2-year warranty.
The 12V/24V Right Hand Mount Volt Control Box is a compact power outlet and voltage monitoring panel designed for caravans, campers, 4WDs, ute canopies, service bodies, trailers, and auxiliary battery systems.
It includes 1 marine-grade stainless steel accessory socket, 1 Engel fridge unique 2-prong socket, 1 genuine 50A Anderson connector, and an LCD digital volt meter suitable for both 12V and 24V systems.
The accessory and Engel outlets are protected by an in-built 15A circuit breaker, and the unit is supplied with approximately 250mm of 6mm twin core cable and yellow crimp joiners for installation.
✅ Key Benefits
🔌 Right Hand Mount Volt Control Box
Designed as a compact right hand mount outlet and voltage monitoring box.
🚐 12V & 24V Compatible
Suitable for both 12V and 24V electrical systems.
⚡ Marine-Grade Stainless Steel Accessory Socket
Includes 1 stainless steel accessory socket rated to 16A.
❄️ Engel 2-Prong Fridge Socket
Includes 1 Engel fridge unique 2-prong socket rated to 15A.
🔋 Genuine 50A Anderson Connector
Includes 1 genuine 50 Amp Anderson connector for compatible power connections.
📟 LCD Digital Volt Meter
Multi-voltage display suitable for 12V and 24V systems.
🔘 Push Button Display Control
Push button turns the volt meter ON / OFF.
🛡️ Built-In Circuit Protection
In-built 15A circuit breaker is wired to protect the twin outlets.
🔧 Pre-Wired for Installation
Supplied with approximately 250mm of 6mm twin core cable and yellow crimp joiners.
🛠️ 2-Year Warranty
Backed by a 2-year warranty.
🚐 Suitable Applications
🚙 4WD canopy power systems
🚐 Caravan power setups
🏕️ Camper trailer electrical systems
🛻 Ute tray and service body installations
🚚 Work vehicle accessory power
🔋 Auxiliary battery systems
❄️ Engel fridge power connections
⚡ 12V and 24V accessory outlets
📟 Battery voltage monitoring
🔌 Anderson plug power connection points
🔌 Outlet Configuration
| Outlet Type | Quantity | Rating / Detail |
|---|---|---|
| Marine-Grade Stainless Steel Accessory Socket | 1 | Rated to 16A |
| Engel Fridge 2-Prong Socket | 1 | Rated to 15A |
| Genuine Anderson Connector | 1 | 50A |
| LCD Digital Volt Meter | 1 | Multi-voltage 12V / 24V |
| Push Button | 1 | Turns volt meter ON / OFF |
| Built-In Circuit Breaker | 1 | 15A |
❄️ Engel Socket Note
The Engel socket is a dedicated Engel fridge unique 2-prong socket.
| Socket Type | Detail |
|---|---|
| Engel Socket | Unique 2-prong Engel fridge socket |
| Rating | 15A |
| Important Note | This is not a standard accessory socket |
Please confirm your Engel plug compatibility before purchase.
📟 Voltage Monitoring
| Volt Meter Feature | Details |
|---|---|
| Display Type | LCD digital volt meter |
| Voltage Compatibility | 12V and 24V |
| Control Button | Push button |
| Button Function | Turns volt meter ON / OFF |
🛡️ Circuit Protection
| Protection Feature | Details |
|---|---|
| Circuit Breaker | In-built |
| Breaker Rating | 15A |
| Protected Outlets | Accessory socket and Engel socket |
| Purpose | Helps protect the twin outlet circuits |
🔧 Wiring Details
| Wiring Feature | Details |
|---|---|
| Cable Included | Approx. 250mm length |
| Cable Type | 6mm twin core cable |
| Connectors Included | Yellow crimp joiners |
| Installation Style | Pre-wired control box |
📏 Dimensions
| Measurement | Details |
|---|---|
| Length | 54mm |
| Depth | 35mm |
| Height | 160mm |
All measurements include sockets.
📋 Technical Specifications
| Specification | Details |
|---|---|
| Product | 12V/24V Right Hand Mount Volt Control Box |
| Mount Orientation | Right hand mount |
| Voltage Compatibility | 12V / 24V |
| Accessory Socket | 1 x marine-grade stainless steel socket |
| Accessory Socket Rating | 16A |
| Engel Socket | 1 x Engel fridge unique 2-prong socket |
| Engel Socket Rating | 15A |
| Anderson Connector | 1 x genuine 50A Anderson connector |
| Volt Meter | LCD digital multi-voltage 12V / 24V |
| Volt Meter Button | Push button ON / OFF |
| Circuit Breaker | In-built 15A circuit breaker |
| Cable Included | Approx. 250mm 6mm twin core cable |
| Joiners Included | Yellow crimp joiners |
| Dimensions | 54mm L x 35mm D x 160mm H |
| Warranty | 2 years |
⚠️ Fitment & Installation Note
Please confirm your required mounting orientation, voltage system, Engel plug compatibility, accessory load, circuit protection, cable sizing, Anderson connection requirements, volt meter requirements, and clearance before purchase or installation.
Important:
✅ Right hand mount control box
✅ Suitable for 12V and 24V systems
✅ 1 x marine-grade stainless steel accessory socket
✅ 1 x Engel fridge unique 2-prong socket
✅ Engel socket rated to 15A
✅ 1 x genuine 50A Anderson connector
✅ LCD digital volt meter included
✅ Push button turns volt meter ON / OFF
✅ In-built 15A circuit breaker protects the twin outlets
✅ Supplied with approx. 250mm 6mm twin core cable
✅ Yellow crimp joiners included
✅ 2-year warranty
⛔ Engel socket is not a standard accessory socket
⛔ Confirm Engel plug compatibility before purchase
⛔ Do not exceed outlet or circuit breaker ratings
⛔ Ensure wiring and fuse protection suit the connected load
⛔ Confirm mounting clearance and orientation before drilling or cutting
⛔ Professional installation is recommended where wiring, fusing, or load calculations are required
🔎 Why Choose This Right Hand Mount Volt Control Box?
The 12V/24V Right Hand Mount Volt Control Box is a compact power outlet and battery monitoring solution for users who need accessory power, Engel fridge power, Anderson connectivity, and voltage display in one panel.
With a marine-grade stainless steel accessory socket, Engel 2-prong fridge socket, genuine 50A Anderson connector, LCD digital volt meter, push-button display control, in-built 15A circuit breaker, pre-wired cable, and 12V/24V compatibility, it is well suited to caravans, campers, 4WDs, ute canopies, trailers, service vehicles, and auxiliary battery systems.
📦 What’s Included
🔌 1 x 12V/24V Right Hand Mount Volt Control Box
⚡ 1 x Marine-Grade Stainless Steel Accessory Socket
❄️ 1 x Engel Fridge 2-Prong Socket
🔋 1 x Genuine 50A Anderson Connector
📟 1 x LCD Digital Volt Meter
🔘 1 x Push Button for LCD Display
🛡️ 1 x In-Built 15A Circuit Breaker
🔧 Approx. 250mm 6mm Twin Core Cable
🟡 Yellow Crimp Joiners
🛒 Order with Confidence
Choose the 12V/24V Right Hand Mount Volt Control Box for compact accessory power distribution, Engel fridge power, Anderson connectivity, voltage monitoring, built-in circuit protection, and reliable use in 12V or 24V vehicle and caravan systems.
