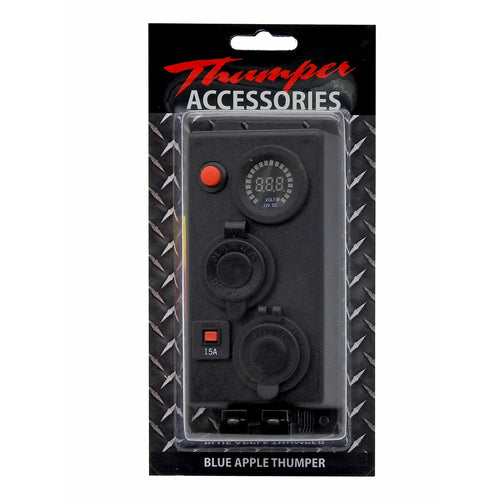

12V/24V Volt Control Box - 2x Engel + 50A Anderson

12V/24V VOLT CONTROL BOX

Dual Engel Fridge Sockets, Genuine 50A Anderson Connector & LCD Digital Voltmeter

⚡ Bring dedicated fridge power, Anderson connectivity and accurate battery voltage monitoring together in one compact control box.

This 12V/24V Volt Control Box combines two unique two-prong Engel fridge sockets, one genuine 50A Anderson connector and an LCD digital voltmeter in a clean, organised unit.

Designed for compatible 4WD, caravan, camper trailer, vehicle canopy, marine and auxiliary battery installations, it provides two dedicated fridge connections plus Anderson power and real-time system-voltage monitoring.

The twin Engel outlet circuits are protected by an integrated 15A circuit breaker, while approximately 250mm of 6mm twin-core cable and yellow crimp joiners are included to assist with installation.

⚡ KEY FEATURES

❄️ Dual Two-Prong Engel Fridge Sockets
Provides two secure connection points for compatible Engel-style fridge plugs, with each socket rated up to 15A.

🔋 Genuine 50A Anderson Connector
Provides a reliable connection point for compatible auxiliary power equipment and accessories.

📊 12V/24V LCD Digital Voltmeter
Monitor battery and electrical-system voltage directly from the control box.

🔋 Improved Lithium Battery Monitoring
The updated voltage meter provides more accurate readings for lithium batteries while remaining suitable for standard lead-acid battery systems.

⏻ Hold-Down Voltmeter Push Button
A dedicated Push button controls the LCD voltage display when required.

🛡️ Built-In Circuit Protection
An integrated 15A circuit breaker is wired to protect the twin Engel outlet circuits.

🧰 Installation Cable Included
Supplied with approximately 250mm of 6mm twin-core cable and yellow crimp joiners.

✅ 2-Year Warranty
Covered by a two-year warranty for added confidence.

❄️ DUAL ENGEL FRIDGE CONNECTIONS

The control box includes two unique two-prong Engel fridge sockets, providing secure connection points for compatible Engel-style fridge plugs.

Each Engel socket is rated up to 15A.

⚠️ IMPORTANT: THESE ARE NOT STANDARD CIGARETTE-LIGHTER OR ACCESSORY SOCKETS.

Standard accessory plugs will not fit these outlets. Confirm that your fridge or appliance uses a compatible two-prong Engel-style plug before purchasing.

🔋 GENUINE 50A ANDERSON CONNECTION

The genuine 50A Anderson connector provides a secure connection point for compatible portable equipment, auxiliary power accessories and battery-related applications.

⚠️ The Anderson connector is not fused within the control box.

Suitable external cable and circuit protection should be selected according to the wiring size, connected equipment and intended electrical load.

📊 ACCURATE BATTERY VOLTAGE MONITORING

The integrated multi-voltage LCD display allows you to quickly monitor compatible 12V and 24V electrical systems.

This updated voltage meter is designed to provide more accurate readings for lithium batteries while also supporting standard lead-acid battery systems.

A dedicated hold-down push button controls the LCD voltage display when required.

🛡️ BUILT-IN OUTLET PROTECTION

An integrated 15A circuit breaker is wired to protect the two Engel fridge socket circuits.

The twin outlets share the protected circuit and must be operated within the capacity of the installed 15A circuit breaker and wiring.

The built-in circuit breaker does not protect the genuine 50A Anderson connector.

Installation must use cable, terminals and circuit protection suitable for the connected equipment and total electrical load.

📐 PRODUCT SPECIFICATIONS

Product: 12V/24V Volt Control Box

System compatibility: 12V DC / 24V DC

Engel fridge sockets: 2 × unique two-prong Engel-style sockets

Engel socket rating: Up to 15A per socket

Accessory-plug compatibility: Not compatible with standard cigarette-lighter / accessory plugs

Anderson connector: 1 × genuine 50A Anderson connector

Internal Anderson protection: Not fused within the control box

Outlet circuit protection: 1 × built-in 15A circuit breaker protecting the twin Engel outlets

Voltage display: LCD digital voltmeter

Voltmeter compatibility: 12V and 24V systems

Battery compatibility: Lithium and lead-acid batteries

Display control: Hold-down push button

Included cable: Approximately 250mm of 6mm twin-core cable

Included connectors: Yellow crimp joiners

Length: 54mm

Depth: 35mm

Height: 160mm

Warranty: 2 years

All listed measurements include the fitted sockets and connectors.

📦 WHAT’S INCLUDED?

• 1 × 12V/24V Volt Control Box
• 2 × Two-prong Engel fridge sockets
• 1 × Genuine 50A Anderson connector
• 1 × Built-in 15A circuit breaker
• 1 × LCD digital voltmeter
• 1 × Hold-down voltmeter push button
• Approximately 250mm of 6mm twin-core cable
• Yellow crimp joiners

🚙 SUITABLE FOR

A practical fridge-power and battery-monitoring solution for compatible installations in:

• 4WDs and touring vehicles
• Caravans
• Camper trailers
• Vehicle canopies
• Boats and marine installations
• Auxiliary battery systems
• Work vehicles
• Custom 12V and 24V electrical systems

Installation must be completed using appropriately rated wiring, terminals, fuses and circuit protection for the intended application.

❓ FREQUENTLY ASKED QUESTIONS

Is this control box compatible with both 12V and 24V systems?

Yes. The control box and LCD digital voltmeter are designed for compatible 12V and 24V DC electrical systems.

Are the Engel outlets standard accessory sockets?

No. They are unique two-prong Engel-style fridge sockets and are not compatible with standard cigarette-lighter or accessory plugs.

What is the rating of each Engel fridge socket?

Each Engel-style socket is rated up to 15A.

Will a standard cigarette-lighter plug fit the Engel sockets?

No. Compatible two-prong Engel-style plugs are required.

Can both Engel sockets be used at the same time?

Yes, provided the combined load remains within the capacity of the shared 15A protected circuit, installed wiring and electrical system.

How are the Engel outlets protected?

The twin Engel outlet circuits are protected by one integrated 15A circuit breaker.

Is the Anderson connector protected by the built-in circuit breaker?

No. The genuine 50A Anderson connector is not fused within the control box and requires suitable external circuit protection for the installation.

Is the Anderson connector genuine?

Yes. The control box includes one genuine 50A Anderson connector.

Can the voltmeter monitor lithium batteries?

Yes. The updated LCD voltmeter is designed to provide accurate readings for lithium batteries as well as standard lead-acid batteries.

How is the LCD voltage display controlled?

The control box includes a dedicated hold-down push button for operating the LCD voltage display.

Is installation cable included?

Yes. Approximately 250mm of 6mm twin-core cable and yellow crimp joiners are supplied.

Do the listed dimensions include the sockets?

Yes. All listed measurements include the fitted sockets and connectors.

What warranty is included?

The 12V/24V Volt Control Box is covered by a two-year warranty.

⚡ KEEP YOUR FRIDGE POWER ORGANISED & ACCESSIBLE

Bring dual Engel fridge connections, Anderson power and accurate battery monitoring together in one compact control box.

With two dedicated Engel-style outlets, integrated circuit protection, a genuine 50A Anderson connector and improved lithium-compatible voltage monitoring, this unit provides a practical central connection point for touring, camping, marine and auxiliary electrical systems.

Order today and create a cleaner, more convenient power installation for your vehicle, caravan, boat or off-grid setup.
