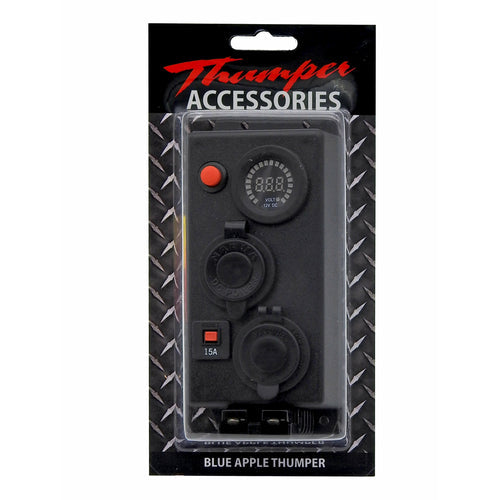

12V/24V Volt Control Box - 2x Accessory + 50A Anderson

12V/24V VOLT CONTROL BOX

2 Marine-Grade Accessory Sockets, Genuine 50A Anderson Connector & LCD Digital Voltmeter

⚡ Bring convenient accessory power, Anderson connectivity and accurate battery voltage monitoring together in one compact control box.

This 12V/24V Volt Control Box combines two marine-grade stainless-steel accessory sockets, one genuine 50A Anderson connector and an LCD digital voltmeter in a clean, organised unit.

Designed for compatible 4WD, caravan, camper trailer, vehicle canopy, marine and auxiliary battery installations, it provides convenient access to power outlets while allowing you to monitor battery voltage at a glance.

The twin accessory outlets are protected by an integrated 15A circuit breaker, while approximately 250mm of 6mm twin-core cable and yellow crimp joiners are included to assist with installation.

---

⚡ KEY FEATURES

🔌 Dual Marine-Grade Stainless-Steel Accessory Sockets
Provides two convenient connection points for compatible accessory plugs and equipment, with each socket rated up to 16A.

🔋 Genuine 50A Anderson Connector
Provides a reliable connection point for compatible auxiliary power equipment and accessories.

📊 12V/24V LCD Digital Voltmeter
Monitor battery and electrical-system voltage directly from the control box.

🔋 Improved Lithium Battery Monitoring
The updated voltmeter provides more accurate readings for lithium batteries while remaining suitable for standard lead-acid battery systems.

⏻ Switchable Voltage Display
A dedicated push button allows the LCD voltmeter to be turned on or off when required.

🛡️ Built-In Circuit Protection
An integrated 15A circuit breaker is wired to protect the twin accessory outlet circuits.

🧰 Installation Cable Included
Supplied with approximately 250mm of 6mm twin-core cable and yellow crimp joiners.

✅ 2-Year Warranty
Covered by a two-year warranty for added confidence.

---

🔌 DUAL MARINE-GRADE ACCESSORY POWER

The control box includes two marine-grade stainless-steel accessory sockets for compatible plugs, appliances and electrical equipment.

Each accessory socket is rated up to 16A, providing convenient access to power for suitable 12V and 24V accessories.

The stainless-steel marine-grade construction makes the outlets a practical choice for touring vehicles, caravans, canopies and compatible marine installations.

⚠️ IMPORTANT: The two accessory sockets share one built-in 15A circuit breaker.

Although each socket is individually rated up to 16A, the combined load across both outlets must remain within the capacity of the shared 15A protected circuit and installed wiring.

---

🔋 GENUINE 50A ANDERSON CONNECTION

The genuine 50A Anderson connector provides a secure connection point for compatible portable equipment, auxiliary power accessories and battery-related applications.

⚠️ The Anderson connector is not fused within the control box.

Suitable external cable and circuit protection should be selected according to the wiring size, connected equipment and intended electrical load.

---

📊 ACCURATE BATTERY VOLTAGE MONITORING

The integrated multi-voltage LCD display allows you to quickly monitor compatible 12V and 24V electrical systems.

This updated voltage meter is designed to provide more accurate readings for lithium batteries while also supporting standard lead-acid battery systems.

A dedicated push button allows the LCD display to be turned on when checking voltage and switched off when it is not required.

---

🛡️ BUILT-IN OUTLET PROTECTION

An integrated 15A circuit breaker is wired to protect the two marine-grade accessory outlet circuits.

The twin outlets share this protected circuit and must be operated within the capacity of the installed 15A circuit breaker and wiring.

The built-in circuit breaker does not protect the genuine 50A Anderson connector.

Installation must use cable, terminals and circuit protection suitable for the connected equipment and total electrical load.

---

📐 PRODUCT SPECIFICATIONS

Product: 12V/24V Volt Control Box

System compatibility: 12V DC / 24V DC

Accessory sockets: 2 × marine-grade stainless-steel accessory outlet sockets

Accessory socket rating: Up to 16A per socket

Shared outlet protection: 1 × built-in 15A circuit breaker

Anderson connector: 1 × genuine 50A Anderson connector

Internal Anderson protection: Not fused within the control box

Voltage display: LCD digital voltmeter

Voltmeter compatibility: 12V and 24V systems

Battery compatibility: Lithium and lead-acid batteries

Display control: Push-button on/off switch

Included cable: Approximately 250mm of 6mm twin-core cable

Included connectors: Yellow crimp joiners

Length: 54mm

Depth: 35mm

Height: 160mm

Warranty: 2 years

All listed measurements include the fitted sockets and connectors.

---

📦 WHAT’S INCLUDED?

• 1 × 12V/24V Volt Control Box
• 2 × Marine-grade stainless-steel accessory sockets
• 1 × Genuine 50A Anderson connector
• 1 × Built-in 15A circuit breaker
• 1 × LCD digital voltmeter
• 1 × Voltmeter on/off push button
• Approximately 250mm of 6mm twin-core cable
• Yellow crimp joiners

---

🚙 SUITABLE FOR

A practical power and battery-monitoring solution for compatible installations in:

• 4WDs and touring vehicles
• Caravans
• Camper trailers
• Vehicle canopies
• Boats and marine installations
• Auxiliary battery systems
• Work vehicles
• Custom 12V and 24V electrical systems

Installation must be completed using appropriately rated wiring, terminals, fuses and circuit protection for the intended application.

---

❓ FREQUENTLY ASKED QUESTIONS

Is this control box compatible with both 12V and 24V systems?

Yes. The control box and LCD digital voltmeter are designed for compatible 12V and 24V DC electrical systems.

How many accessory sockets are included?

The control box includes two marine-grade stainless-steel accessory sockets.

What is the rating of each accessory socket?

Each accessory socket is rated up to 16A.

Are the accessory sockets marine grade?

Yes. Both accessory outlets feature marine-grade stainless-steel construction.

Can both accessory sockets supply 16A at the same time?

No. Although each socket is individually rated up to 16A, both outlets share one 15A circuit breaker. The combined current drawn through the twin outlets must remain within the capacity of the shared protected circuit.

How are the accessory outlets protected?

The twin accessory outlet circuits are protected by one integrated 15A circuit breaker.

Is the Anderson connector protected by the built-in circuit breaker?

No. The genuine 50A Anderson connector is not fused within the control box and requires suitable external circuit protection for the installation.

Is the Anderson connector genuine?

Yes. The control box includes one genuine 50A Anderson connector.

Can the voltmeter monitor lithium batteries?

Yes. The updated LCD voltmeter is designed to provide accurate readings for lithium batteries as well as standard lead-acid batteries.

Can the LCD voltage display be switched off?

Yes. A dedicated push button allows the LCD voltmeter to be turned on or off when required.

Is installation cable included?

Yes. Approximately 250mm of 6mm twin-core cable and yellow crimp joiners are supplied.

Do the listed dimensions include the sockets?

Yes. All listed measurements include the fitted sockets and connectors.

What warranty is included?

The 12V/24V Volt Control Box is covered by a two-year warranty.

---

⚡ COMPLETE YOUR 12V OR 24V POWER SETUP

Bring dual marine-grade accessory power, Anderson connectivity and accurate battery monitoring together in one compact control box.

With stainless-steel outlets, integrated circuit protection, a genuine 50A Anderson connector and improved lithium-compatible voltage monitoring, this unit provides a practical central connection point for touring, camping, marine and auxiliary electrical systems.

Order today and create a cleaner, more convenient 12V or 24V power installation.
