SUNMAN
230W eARC FLEXIBLE SHADE RESISTANT SOLAR PANEL
230W eARC FLEXIBLE SHADE RESISTANT SOLAR PANEL
SKU:SMF230J-8X8UW-S
Couldn't load pickup availability

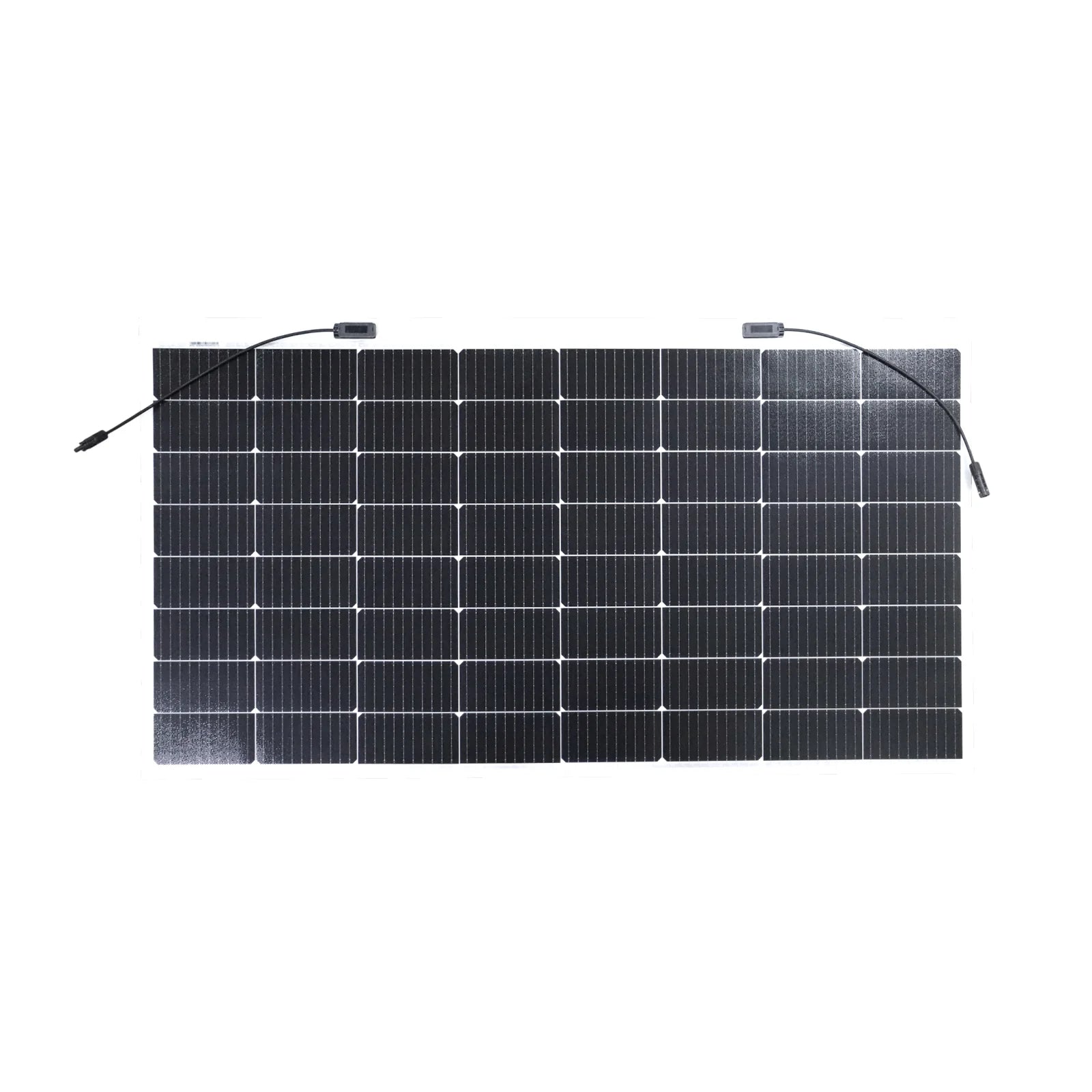

☀️ Sunman eArc 230W Flexible Solar Panel
Lightweight 230W flexible Mono-PERC solar panel with high-efficiency monocrystalline cells, IP68 junction box, MC4-compatible connectors, and ultra-thin 2mm profile.
The Sunman eArc 230W Flexible Solar Panel is a compact, lightweight, and efficient solar panel designed for caravans, motorhomes, yachts, trains, buses, mobile power systems, and fixed solar applications.
Built using advanced Mono-PERC monocrystalline solar technology, the eArc 230W panel delivers strong energy production in a flexible, ultra-thin format. Its robust composite construction removes the need for heavy glass and rigid framing, making it suitable for applications where weight, shape, and mounting flexibility are important.
With a lightweight 3.31kg design, 230W maximum power output, MC4-compatible connectors, and a slim 1510mm x 820mm x 2mm profile, this panel is ideal for efficient solar charging where conventional framed panels may not be practical.
✅ Key Benefits

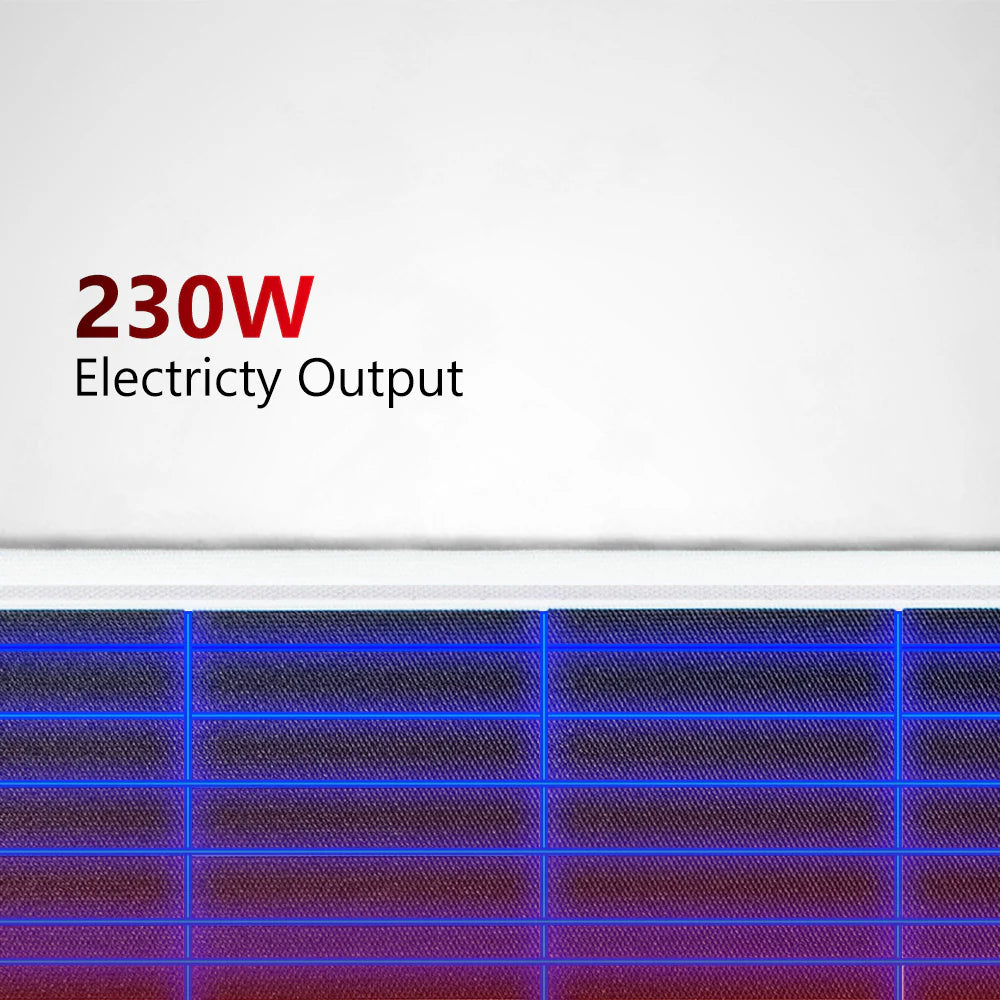

☀️ 230W Solar Output
Delivers up to 230W maximum power for efficient solar energy production.
⚡ High-Efficiency Mono-PERC Cells
Uses monocrystalline Mono-PERC solar cell technology for strong performance.

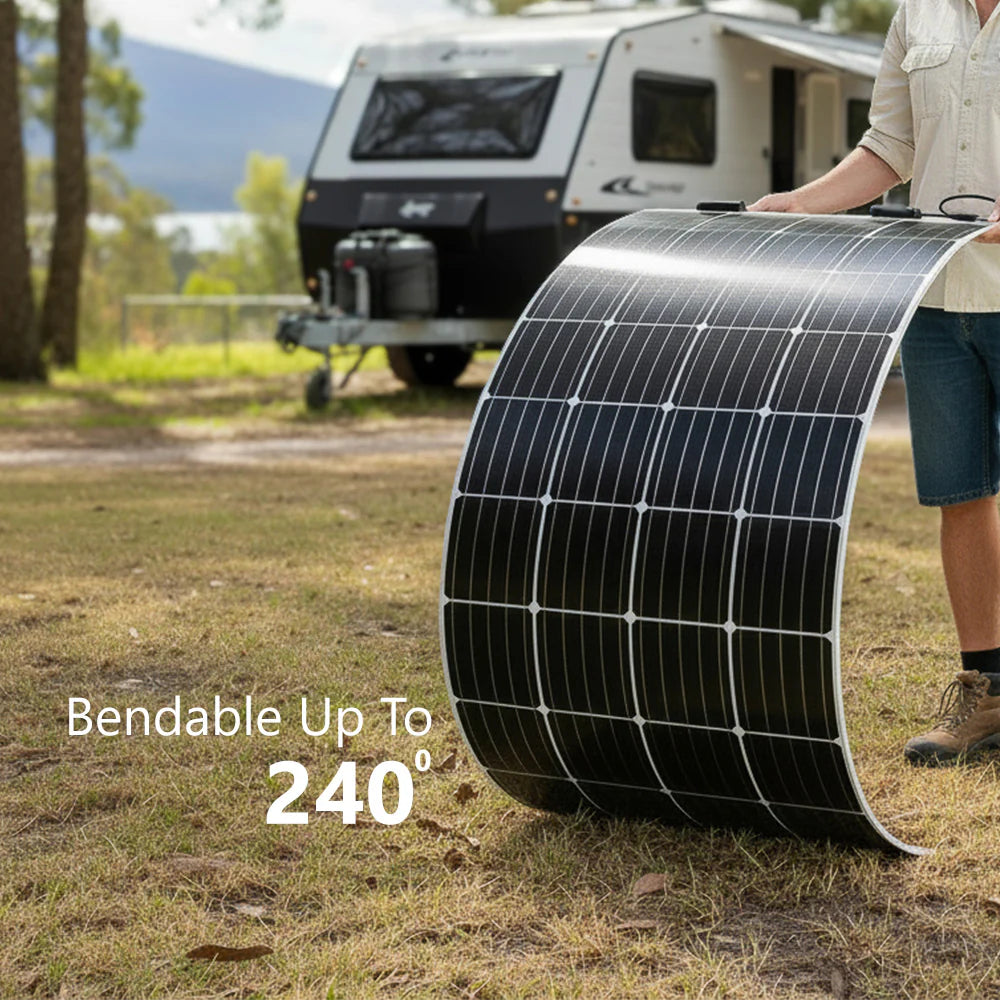

🪶 Lightweight Flexible Design
Weighs only 3.31kg, making it easier to mount on mobile and weight-sensitive applications.

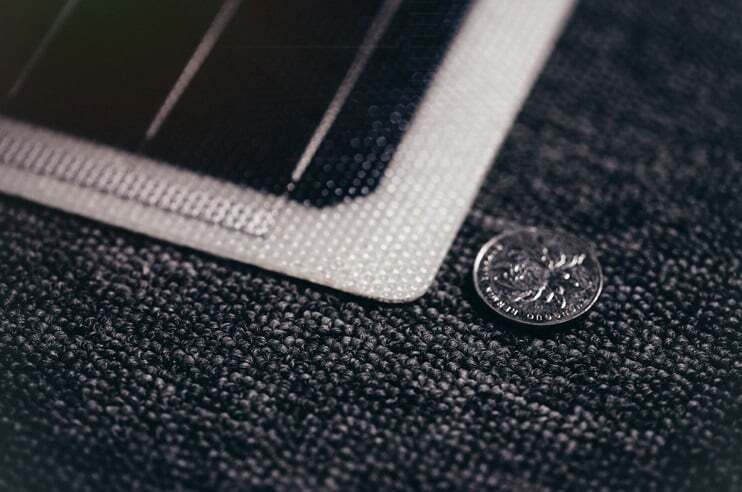

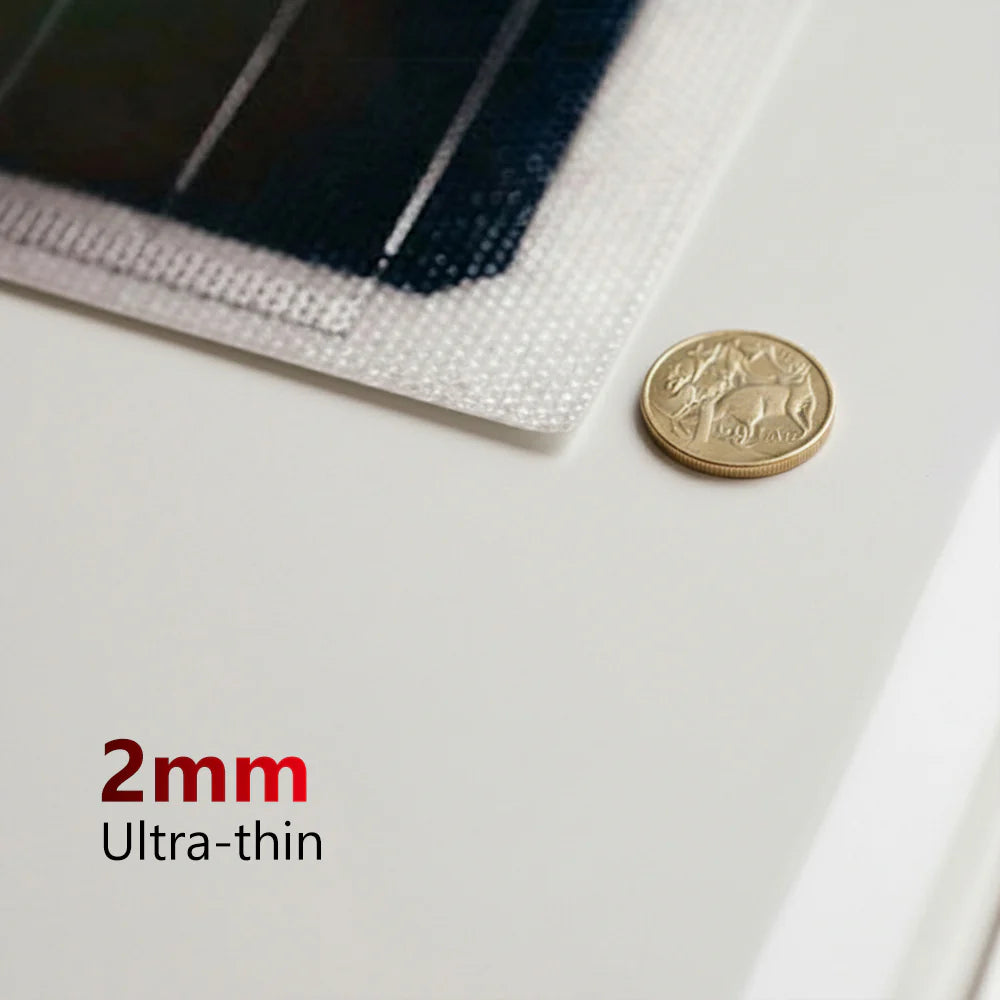

📏 Ultra-Thin 2mm Profile
Low-profile design helps reduce bulk compared with traditional framed glass panels.
🧱 Durable Composite Construction
Crafted using advanced composite material for strength without heavy glass or rigid framing.
🚐 Ideal for Mobile Applications
Suitable for caravans, motorhomes, yachts, buses, trains, and other mobile solar setups.
🏠 CEC Approved
Approved by the Clean Energy Council for suitable residential and commercial use.
🌱 Supported Renewable Technology
Endorsed by the Clean Energy Finance Corporation and Australian Renewable Energy Agency.
🔌 MC4-Compatible Connectors
Supplied with MC4-compatible connectors for solar system integration.

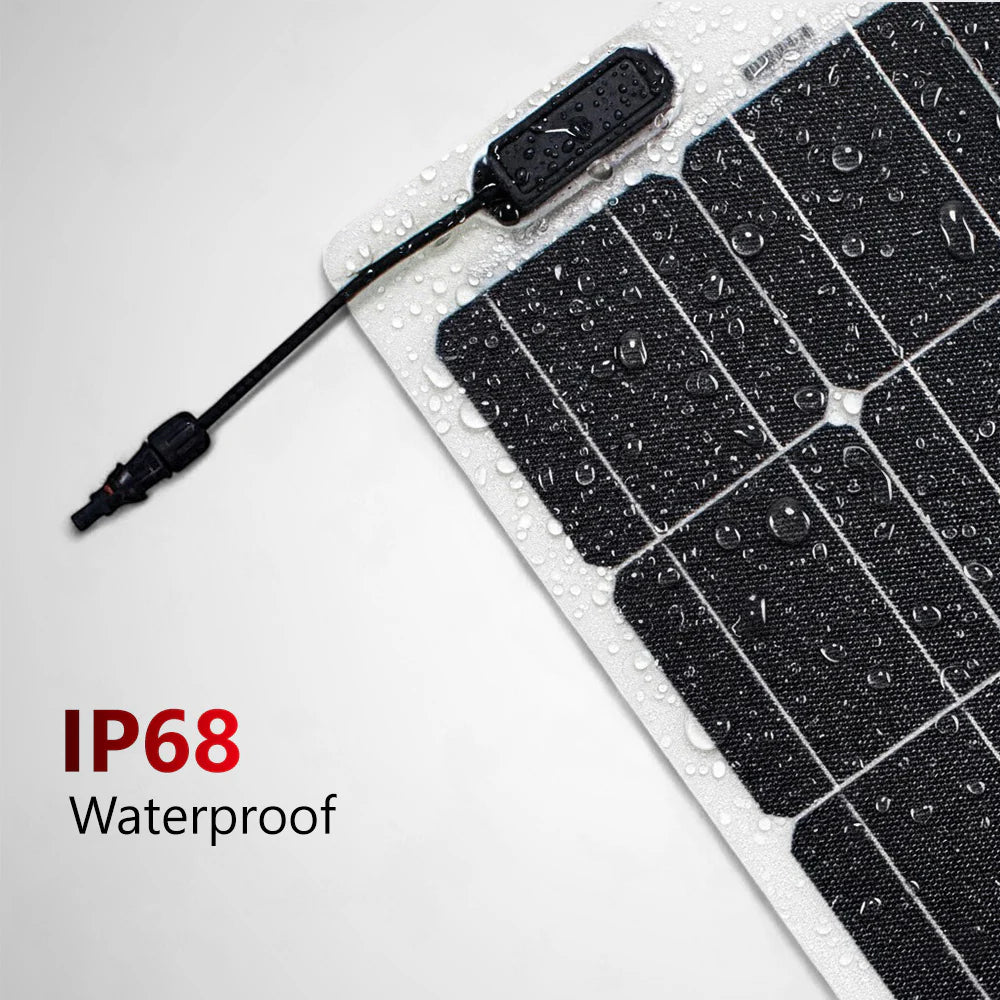

🛡️ IP68 Junction Box
Each junction box is IP68 rated and includes one bypass diode.
🔧 Multiple Mounting Options
Compatible with adhesive tape, structural silicone, or eyelet mounting options.
🚐 Suitable Applications
🚐 Caravans and motorhomes
⛵ Yachts and marine applications
🚌 Buses and coaches
🚆 Trains and transport systems
🏕️ Camping and touring solar systems
🔋 12V and off-grid power systems
🏠 Suitable residential solar applications
🏢 Commercial solar applications
☀️ Lightweight solar installations
🧰 Custom solar projects
🔋 Solar Performance
The Sunman eArc 230W panel is designed to provide reliable solar charging performance from a compact flexible panel.
| Performance Feature | Details |
|---|---|
| Maximum Power | 230W |
| Maximum Power Voltage — Vmp | 18.9V |
| Current at Pmax — Imp | 12.31A |
| Short-Circuit Current — Isc | 13.56A ±5% |
| Open-Circuit Voltage — Voc | 21.4V ±5% |
| Power Tolerance | 0 / +5W |
| Maximum System Voltage | 1000V DC IEC |
🧱 Lightweight Flexible Construction

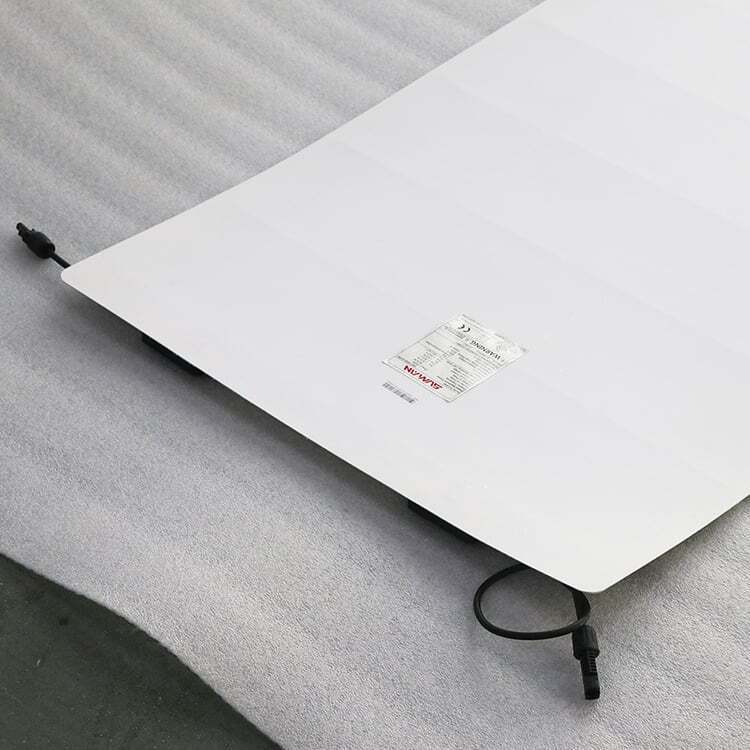

Sunman eArc solar panels are built using a durable composite material designed to provide strength without the weight of traditional framed glass panels.
| Construction Feature | Details |
|---|---|
| Panel Type | Flexible solar panel |
| Cell Type | Monocrystalline Mono-PERC |

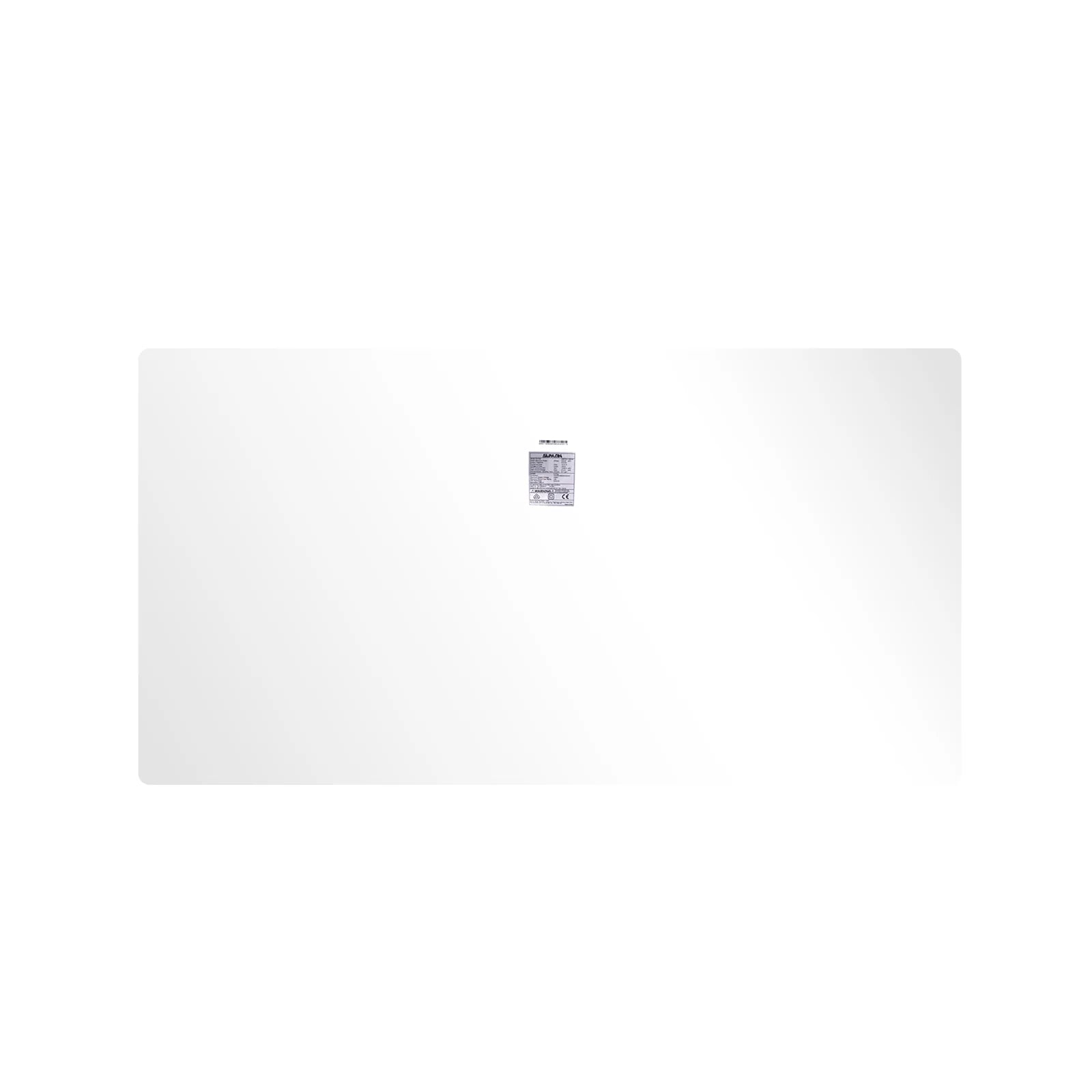

| Backsheet | White |
| Frame Style | Frameless flexible design |
| Glass-Free Construction | Yes |
| Weight | 3.31kg |
| Thickness | 2mm |

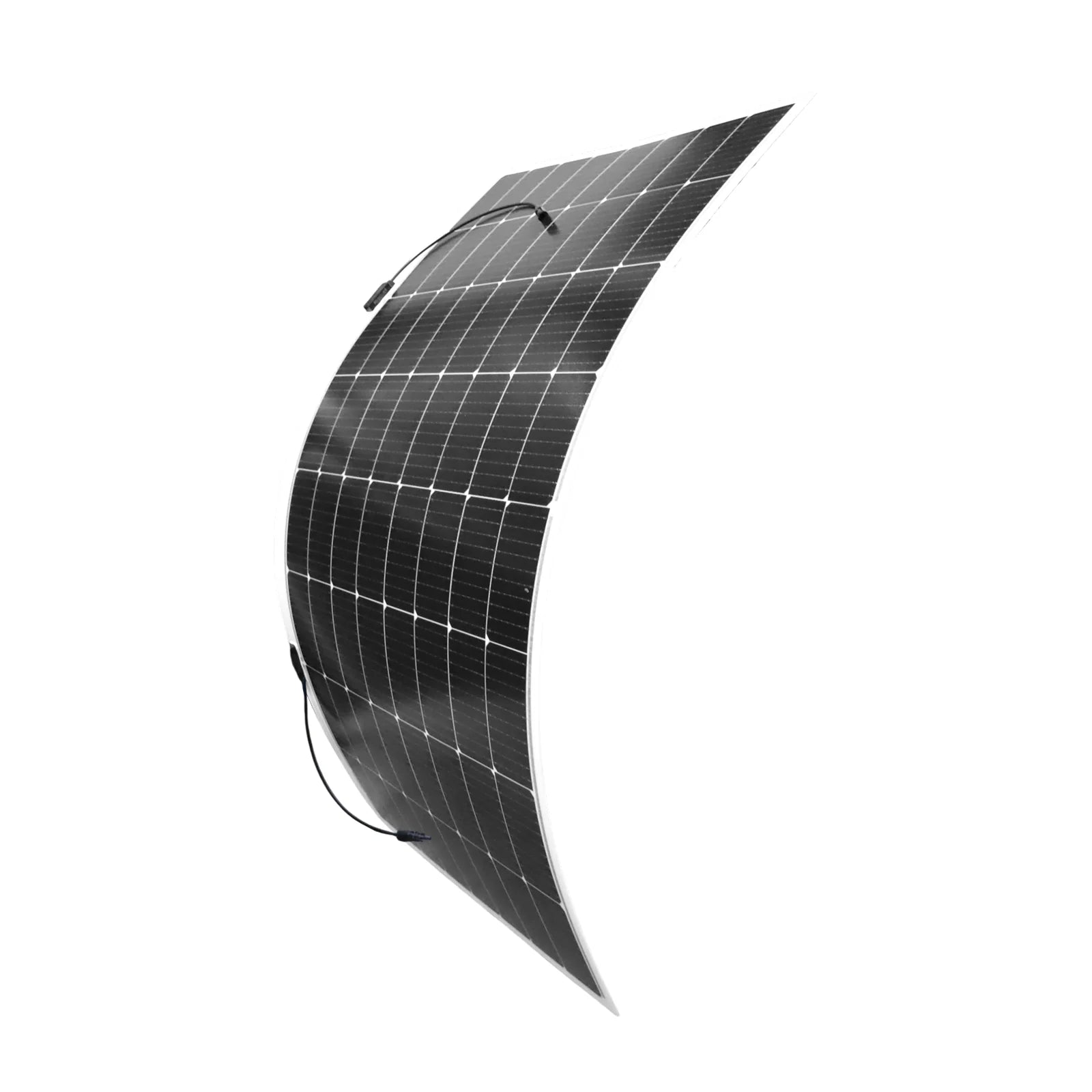

This makes the panel suitable for curved or lightweight installations where standard rigid solar panels may not be ideal.

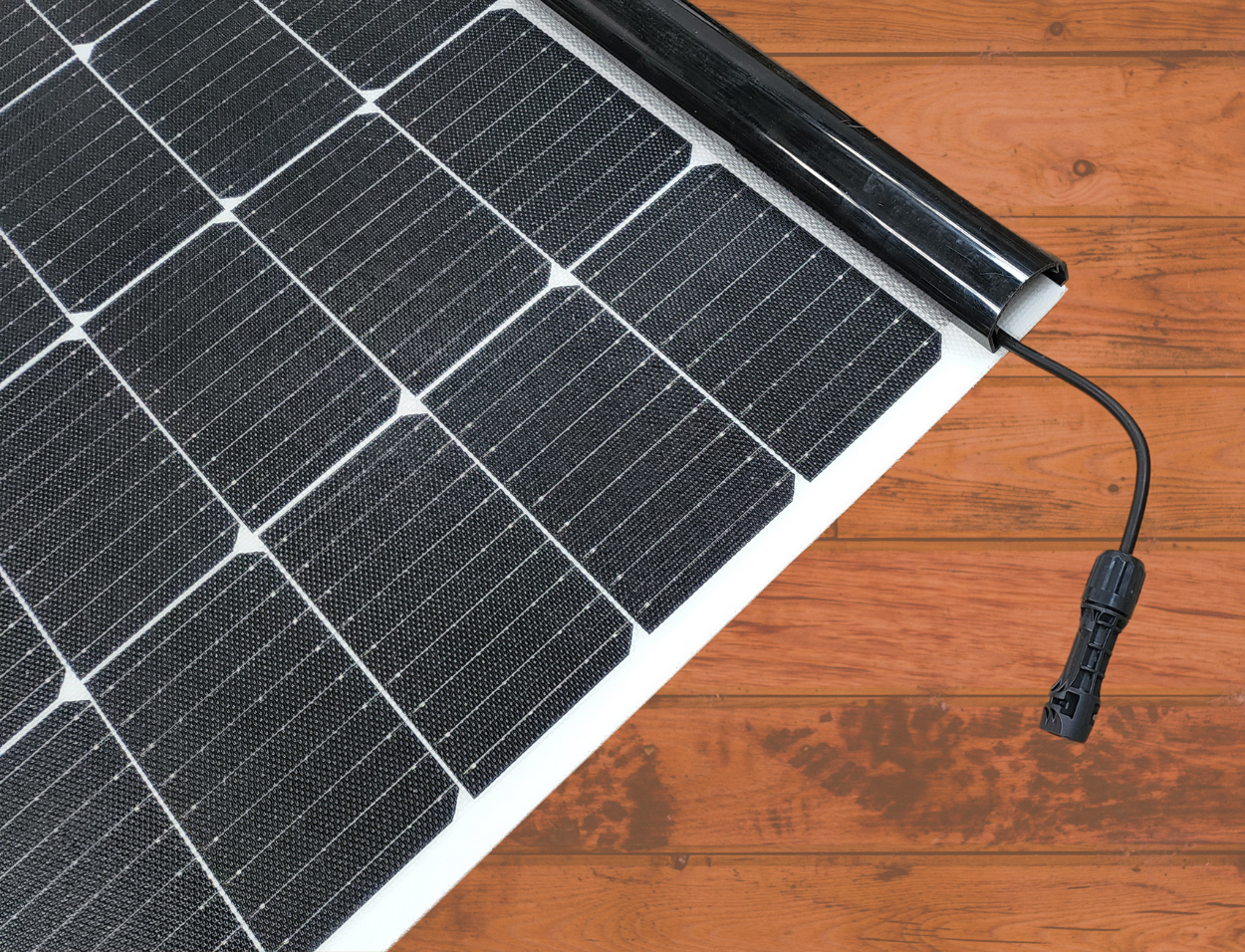

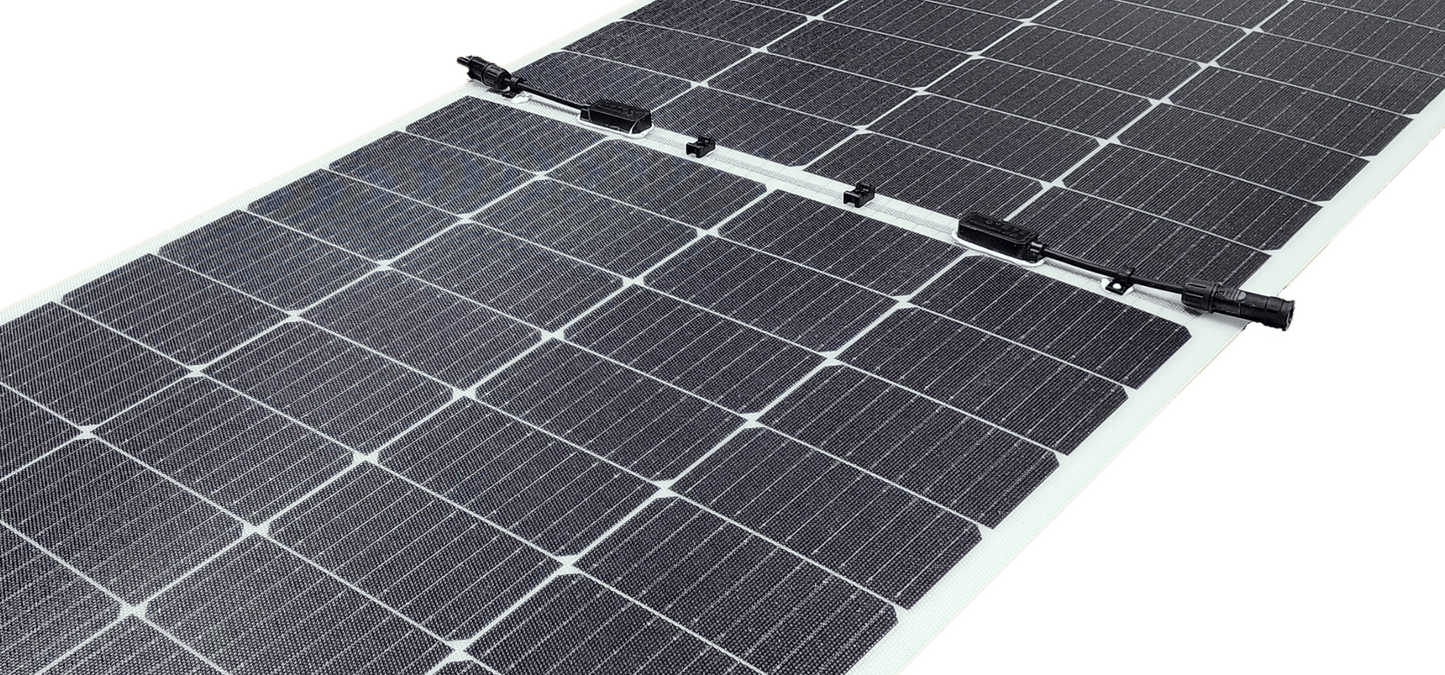

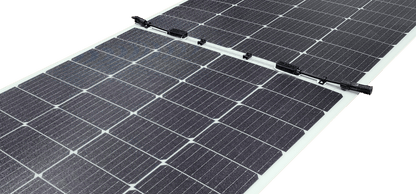

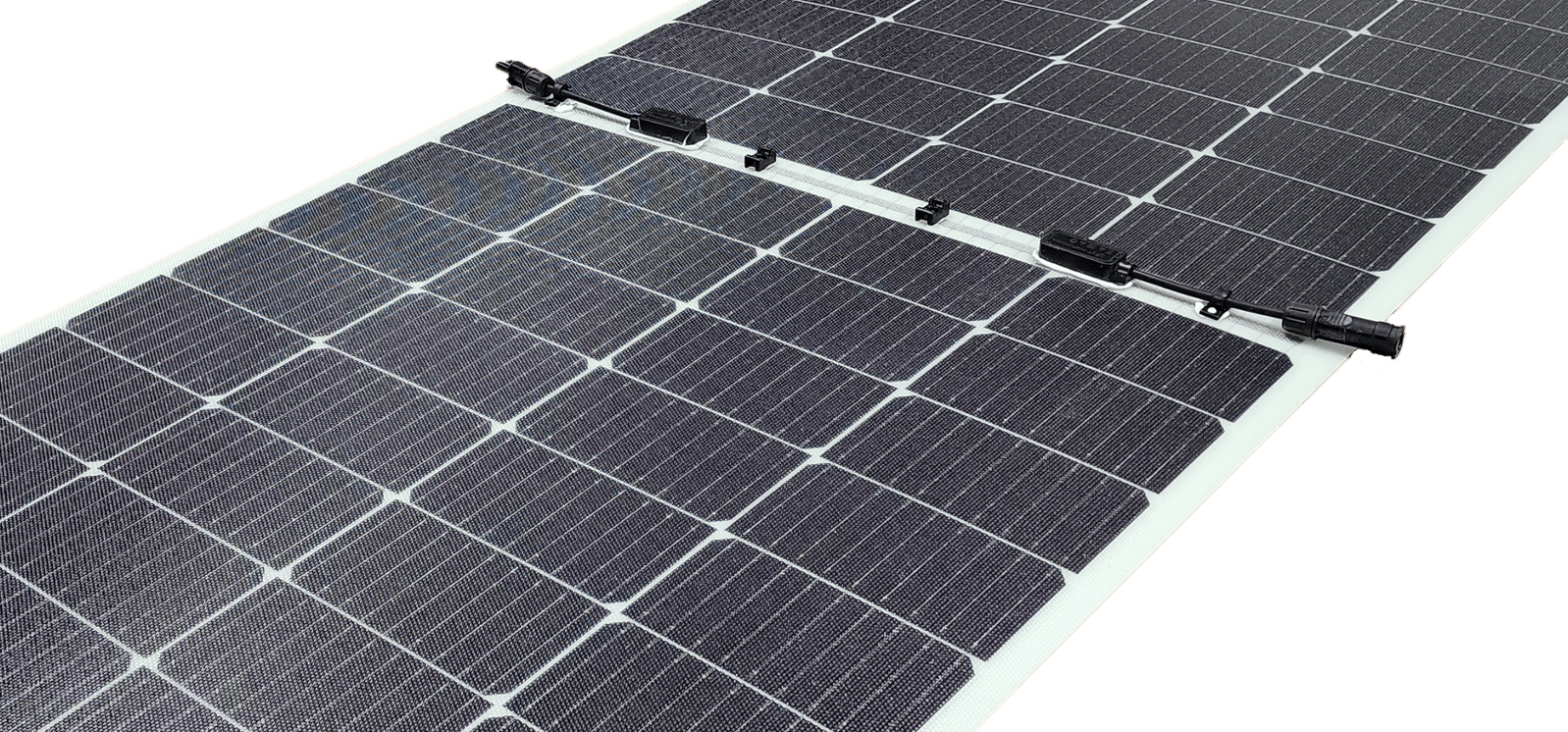

🔌 Electrical & Connection Details
| Connection Feature | Details |
|---|---|
| Junction Box | IP68 rated |
| Bypass Diode | 1 bypass diode per junction box |
| Output Cable Type | Photovoltaic technology cable |
| Cable Size | 4.0mm² |
| Cable Length | Positive 150mm / Negative 450mm |
| Connector | MC4 compatible |
🔧 Optional Mounting Solutions
Multiple mounting options are available depending on the surface and installation requirements.
| Mounting Option | Details |
|---|---|
| High Bond Double-Sided Adhesive Tape | Low-profile secure bond for smooth surfaces |
| Tape Size | 2.3mm H x 12mm W x 16.5m L |
| Structural Silicone — Fix8 | Can be used to adhere the panel to a suitable surface |
| Eyelets | Eyelets can be pressed into the panel for bolt or screw mounting |
Always follow the correct mounting instructions and confirm surface suitability before installation.
📏 Technical Specifications
| Specification | Details |
|---|---|
| Product | Sunman eArc 230W Flexible Solar Panel |
| Model | SMF230J-8X8UW |
| Panel Type | Flexible Mono-PERC solar panel |
| Maximum Power — Pmax | 230W |
| Maximum Power Voltage — Vmp | 18.9V |
| Current at Pmax — Imp | 12.31A |
| Short-Circuit Current — Isc | 13.56A ±5% |
| Open-Circuit Voltage — Voc | 21.4V ±5% |
| Operating Temperature | 41°C |
| Maximum System Voltage | 1000V DC IEC |
| Power Tolerance | 0 / +5W |
| Backsheet | White |
| Junction Box | IP68 rated |
| Output Cables | 4.0mm² photovoltaic cable, +150mm / -450mm |
| Connector | MC4 compatible |

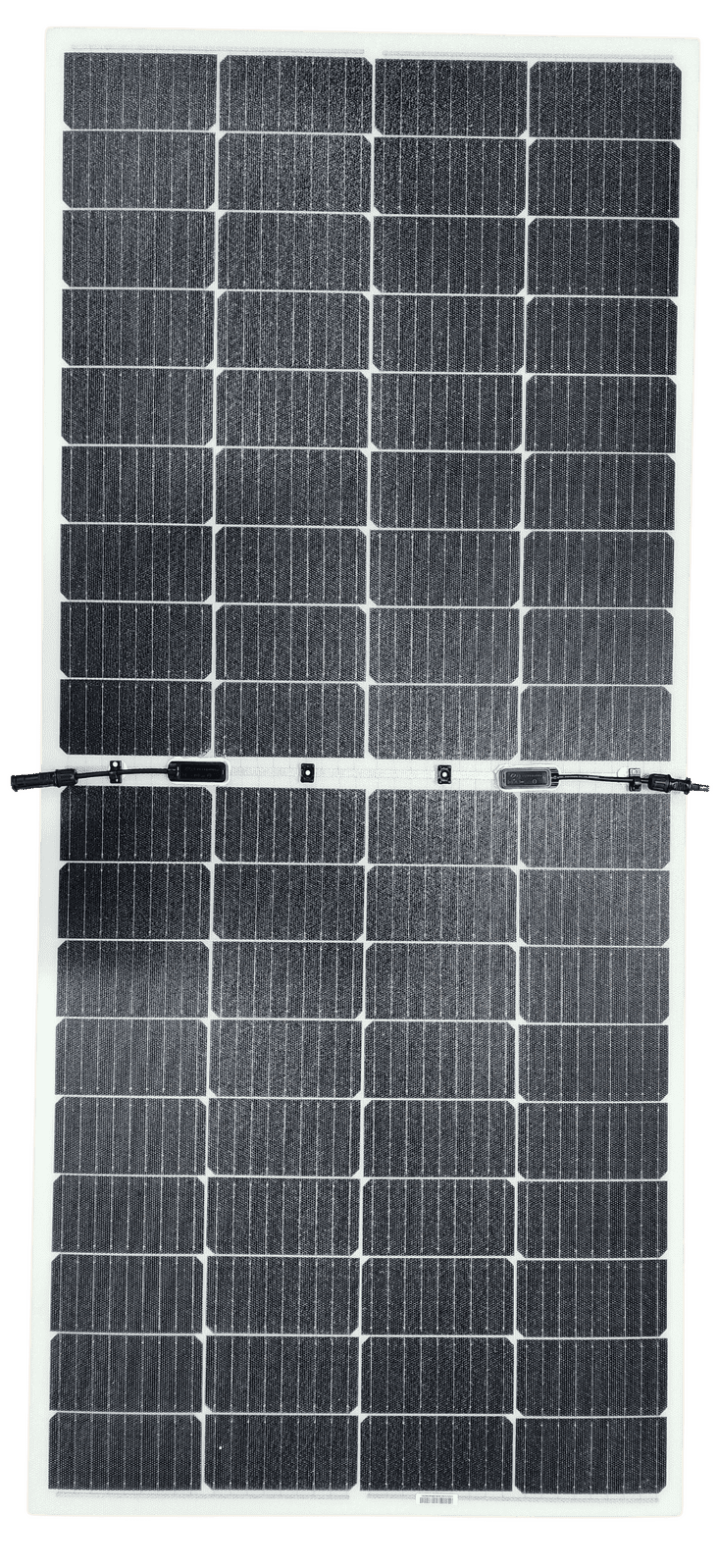

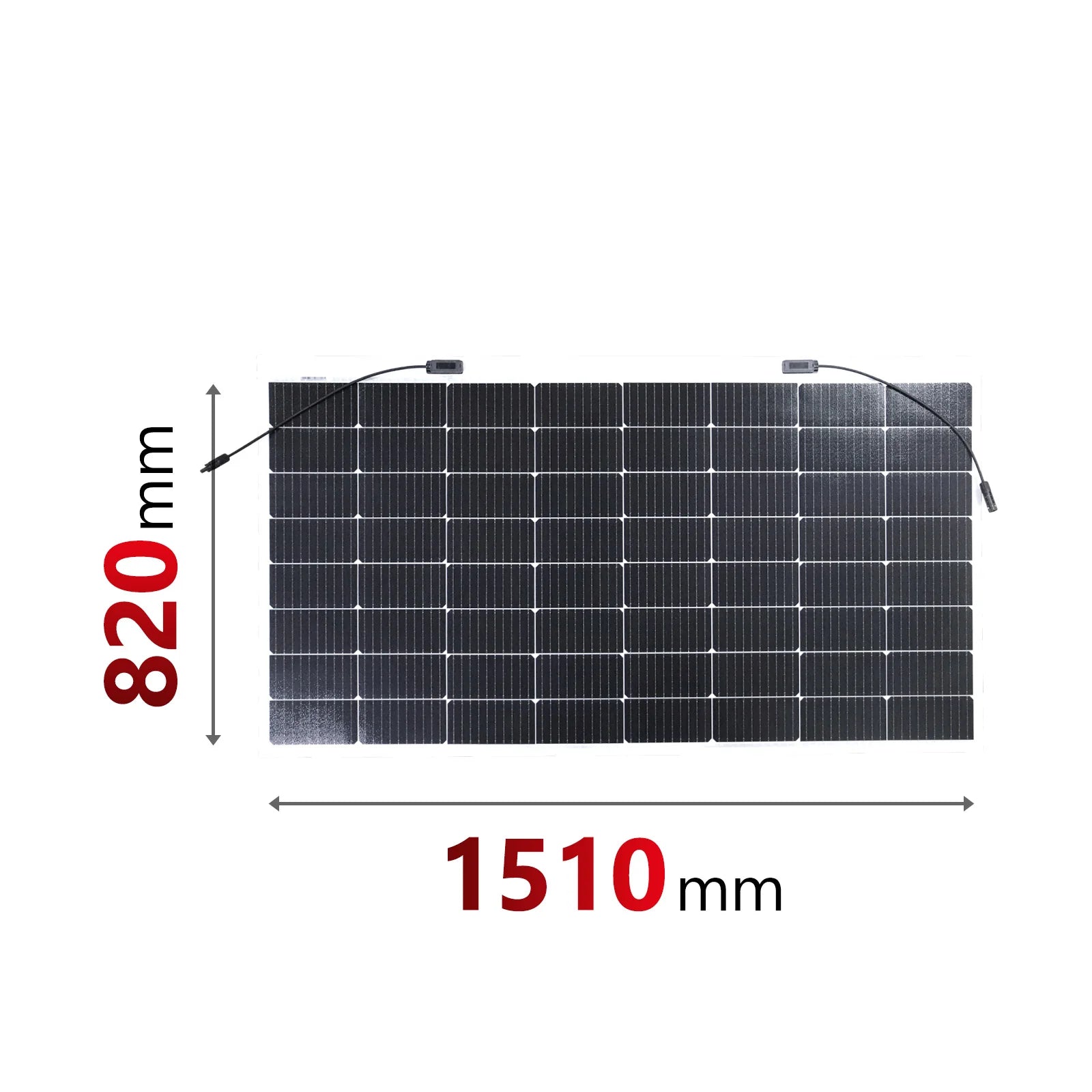

📐 Dimensions & Weight
| Measurement | Details |
|---|---|
| Length | 1510mm |
| Width | 820mm |
| Thickness | 2mm |
| Weight | 3.31kg |
🛡️ Warranty
| Application | Warranty |
|---|---|
| Building Applications | 10-year product warranty |
| Mobile Applications | 5-year product warranty |
Warranty terms may depend on installation method, application, and product use.
⚠️ Fitment & Installation Note
Please confirm your required panel wattage, available mounting space, cable length, regulator compatibility, system voltage, surface suitability, mounting method, airflow, and installation environment before purchase or installation.
Important:
✅ 230W flexible solar panel
✅ Suitable for mobile and fixed solar applications
✅ Lightweight 3.31kg construction
✅ Ultra-thin 2mm profile
✅ MC4-compatible connector
✅ IP68 rated junction box
✅ Suitable for use with compatible solar regulators
✅ Optional adhesive, silicone, or eyelet mounting options available
✅ CEC approved for suitable residential and commercial use
⛔ If adding to an existing solar array, confirm panel compatibility before purchase
⛔ Professional installation is recommended for residential, commercial, marine, and vehicle-mounted systems
🔎 Why Choose the Sunman eArc 230W Flexible Solar Panel?
The Sunman eArc 230W Flexible Solar Panel is designed for users who need efficient solar output in a lightweight, low-profile, flexible format.
With 230W power output, Mono-PERC solar technology, composite frameless construction, MC4-compatible wiring, IP68 junction box protection, and multiple mounting options, it is a strong choice for caravans, motorhomes, yachts, buses, trains, off-grid power systems, and lightweight solar installations.
📦 What’s Included
☀️ 1 x Sunman eArc 230W Flexible Solar Panel — SMF230J-8X8UW
🛒 Order with Confidence
Choose the Sunman eArc 230W Flexible Solar Panel for lightweight solar charging, flexible installation, efficient Mono-PERC performance, durable composite construction, and reliable off-grid energy production.
