24V 310Ah/330Ah Vanlife LiFePO4 Battery

🔋 24V VanLiFe 310Ah / 330Ah Lithium Battery

LiFePO4 25.6V | 250A BMS | Australian Built | High-Capacity 24V Power

The 24V VanLiFe 310Ah / 330Ah Lithium Battery is built for serious 24V off-grid, caravan, marine, commercial, and high-demand power systems.

Designed and hand built in Australia, this battery combines automotive-grade IEC 62619 certified LiFePO4 cells, laser-welded bus bar connections, cable-free internal construction, and a rugged zinc-plated powder-coated steel enclosure for dependable long-term performance.

With a powerful 250A continuous charge and discharge BMS, this battery is ideal for larger 24V systems running inverters, appliances, solar storage, and demanding off-grid loads.

⚡ Key Features

🔋 310Ah / 330Ah Capacity Options
High-capacity lithium storage for extended runtime in demanding 24V systems.

⚡ 250A Continuous Charge & Discharge
Designed for high-output applications requiring serious current capability.

⚖️ Active + Passive Cell Balancing
Helps maintain cell health, improve charging efficiency, and support long battery life.

🔩 Laser-Welded Bus Bar Connections
Strong, reliable high-current connections directly to the cell pack.

🚫 Cable-Free Internal Construction
Clean internal design reduces potential failure points and improves long-term reliability.

🛡️ Sealed Steel Enclosure
Zinc-plated and powder-coated steel case with vent outlet and high-temperature sealing.

🇦🇺 Designed & Hand Built in Australia
Each unit is individually quality checked and tested twice before dispatch.

📘 AS/NZS3001.2:2022 Installation-Focused Design
Includes high/low temperature, voltage, and over-current protection features required for modern installation standards.

🔒 BMS Protection

🌡️ Temperature Protection

🔌 Charging Profile

For best performance, use a compatible 24V lithium charger with the following settings:

• Bulk Charge: 28.4V – 29.2V
• Ideal Bulk Charge: 28.8V
• Absorption: 28.4V – 29.2V
• Ideal Absorption: 28.8V
• Float: 26.8V – 27.2V
• Ideal Float: 27.0V

🔄 Long Cycle Life

Built with automotive-grade LiFePO4 cells rated to 8000 cycles at 70% depth of discharge, making this battery ideal for long-term daily cycling and serious off-grid use.

📊 Technical Specifications

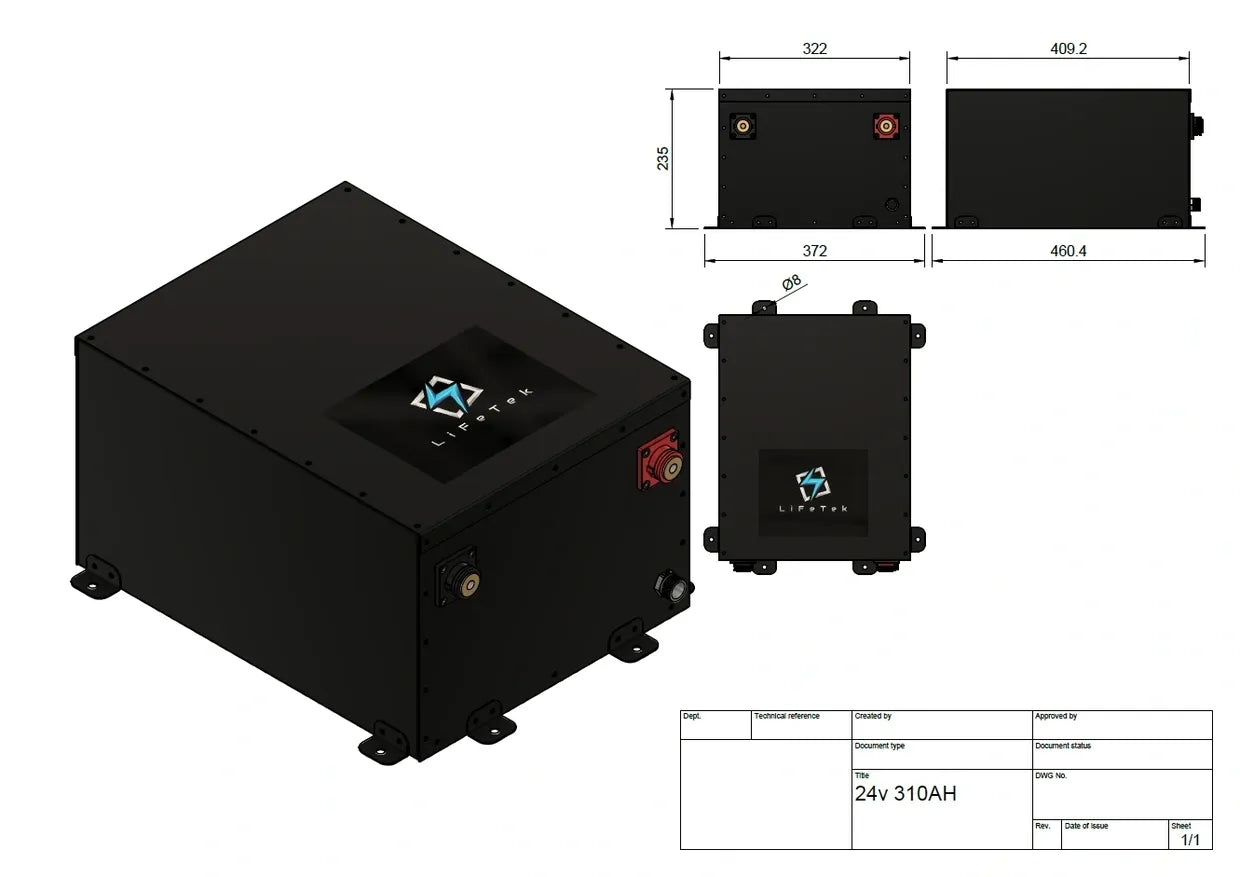

📏 Dimensions

24V 310Ah/330Ah Model

• Length: 460.40mm
• Width: 372mm
• Height: 235mm

Mounting feet include 8mm mounting holes.

⚠️ Mounting feet tabs may be trimmed if space is limited, but do not cut into the battery case itself, as this will void warranty.

🏕️ Ideal Applications

🚐 Caravans & motorhomes
☀️ 24V off-grid solar systems
⛵ Marine power systems
🚚 Commercial vehicles
🏕 Remote touring setups
🔌 High-output inverter systems
🏡 Backup and storage power systems

✅ Why Choose the 24V VanLiFe 310Ah / 330Ah?

✔ Purpose-built for 24V systems
✔ High-capacity 310Ah / 330Ah lithium options
✔ Powerful 250A continuous charge and discharge
✔ Active and passive cell balancing
✔ Automotive-grade IEC 62619 certified cells
✔ Laser-welded bus bar construction
✔ Cable-free internal design
✔ Sealed powder-coated steel enclosure
✔ Designed and hand built in Australia
✔ Individually twice QC checked and tested
✔ 7 + 3 year warranty with after-warranty repair service available

🛒 Serious 24V Power for Demanding Systems

Upgrade your 24V setup with a high-capacity Australian-built lithium battery engineered for long life, high output, and reliable off-grid performance.
