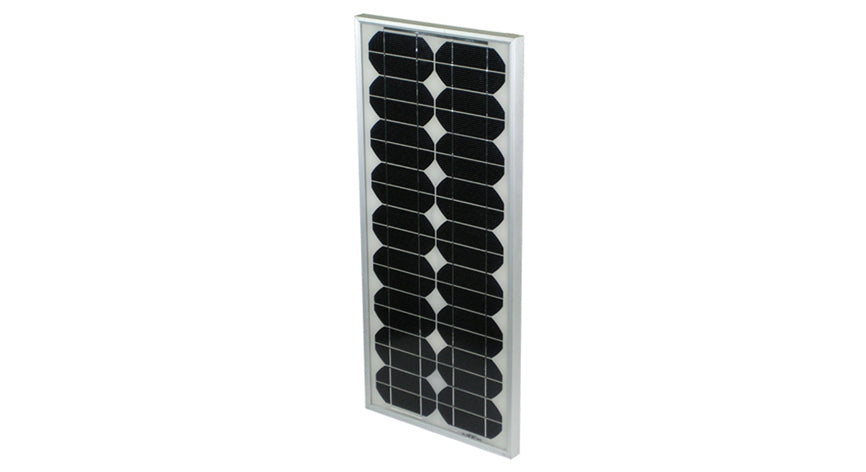

18V 20W FIXED SOLAR PANEL (6520D)

The 18V 20W Fixed Solar Panel (6520D) delivers reliable power with a maximum output of 20 watts and an open-circuit voltage of 22.8 V.

Featuring monocrystalline silicon cells and 3mm tempered glass, it ensures high efficiency and durability.

Its heavy-duty metal frame and fully weatherproof design make it suitable for harsh environments.

The panel operates efficiently across a temperature range of -40° to +90°C and supports system voltages up to 1000 V.

Shade tolerance and an included junction box enhance performance and installation ease. Backed by a 25-year limited warranty for long-term confidence.

Features:

• Max power
  20 W
• Open voltage (VOC)
  22.8 V
• Short current (ISC)
  1.3 A
• Mpp voltage (Vmpp)
  18.7 V
• Mpp current (Impp)
  1.07 A
• Temp Range
  40° – +90°
• Maximum system voltage
  1000 V
• Dimensions
  420 mm x 355 mm x 17 mm

Technical Specifications:
