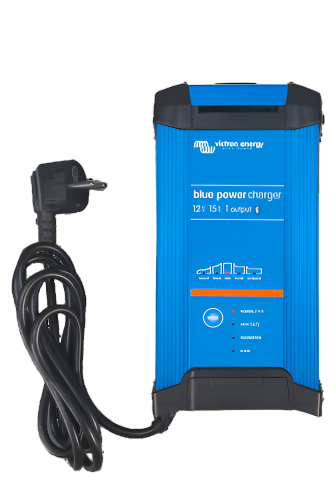

Blue Smart IP22 12V 15A Battery Charger

🔋 Victron Blue Smart IP22 Charger 12V – 15A

1 Output | Bluetooth Battery Charger | 6-Stage Adaptive Charging

The Victron Blue Smart IP22 12V 15A 1 Output Battery Charger is a professional-grade smart charger with built-in Bluetooth, designed for workshops, vehicles, boats, camper-vans, motorcycles, classic cars, and general 12V battery maintenance.

With high efficiency charging, programmable charge profiles, Li-ion support, fully discharged battery recovery, and VE.Smart Networking, this charger offers advanced battery care in a compact and easy-to-install design.

⚡ Key Features

📱 Built-In Bluetooth Smart

Monitor voltage, current, charge status, and charging history using the VictronConnect app.

Bluetooth also allows you to:

• Change charger settings
• Select battery profiles
• Enable Expert mode
• Update the charger when new features become available

🔋 12V 15A Charging Output

Provides 15A charge current for 12V battery systems, making it ideal for small to medium battery banks.

🧠 Adaptive 6-Stage Charging

The charger uses a microprocessor-controlled adaptive charge algorithm to optimise charging based on how the battery is being used.

Charging stages include:

• Test
• Bulk
• Absorption
• Recondition
• Float
• Storage

🔧 Fully Programmable Charge Algorithm

Using the VictronConnect app, you can adjust:

• Absorption voltage
• Float voltage
• Storage voltage
• Recondition settings
• Temperature compensation
• Charge timing and expert parameters

🔋 Lithium Compatible

Suitable for Li-ion batteries using a dedicated bulk, absorption, and float charge profile.

♻️ Fully Discharged Battery Recovery

The charger can begin charging even when a battery has been discharged to 0 volts.

It can also reconnect to a fully discharged Li-ion battery with an internal disconnect function.

🌙 NIGHT & LOW Modes

When using NIGHT or LOW mode, the output current is reduced to 7.5A, and the charger operates noiselessly.

• NIGHT mode: Automatically ends after 8 hours
• LOW mode: Can be ended manually

🌡️ Over-Temperature Protection

Output current reduces as temperature increases, helping protect the charger in hot environments.

📊 40-Cycle History Log

The VictronConnect app provides historical usage data over the charger’s lifetime, plus detailed statistics for the last 40 charge cycles.

🔗 VE.Smart Networking

VE.Smart Networking allows wireless communication between compatible Victron products.

This enables:

• Battery voltage compensation
• Battery temperature compensation
• Current sensing
• Synchronized parallel charging

Up to 10 chargers can be synchronised in a VE.Smart network to operate like one larger charger.

🚗 Perfect For

✔ Cars and classic vehicles
✔ Motorcycles
✔ Boats and marine battery systems
✔ Camper-vans
✔ Caravans
✔ Workshop charging
✔ 12V battery maintenance
✔ Lithium, AGM, gel, flooded, and lead-acid batteries

🔋 Charge Voltage Settings

⚙️ Charging Specifications

🛡️ Protection Features

• Battery reverse polarity protection
• Output short-circuit protection
• Over-temperature protection

🌡️ Operating Range

• Operating Temperature: -40°C to +60°C
• Full Rated Output: Up to 40°C
• Humidity: Up to 98% non-condensing

📏 Physical Specifications

💡 LED Status Indicators

The charger includes 11 LEDs for clear status indication:

• Test
• Bulk
• Absorption
• Recondition
• Float
• Storage
• Ready

The mode button allows selection of:

• Normal
• High
• Recondition
• Li-ion

✅ Why Choose the Victron Blue Smart IP22 12V 15A?

✔ Built-in Bluetooth monitoring
✔ 15A smart charging output
✔ Fully programmable charge profiles
✔ Lithium, AGM, gel, flooded, and lead-acid compatible
✔ Fully discharged battery recovery
✔ NIGHT and LOW quiet charging modes
✔ 40-cycle history log
✔ VE.Smart Networking support
✔ Synchronized parallel charging up to 10 chargers
✔ Compact aluminium enclosure

🛒 Smart Charging for 12V Batteries

Keep your 12V battery charged, protected, and ready to use with the Victron Blue Smart IP22 12V 15A 1 Output Battery Charger.
