12V/24V 65L Upright Caravan Fridge (DC65-X)
12V/24V 65L Upright Caravan Fridge (DC65-X)
SKU:DC65-X
Couldn't load pickup availability
❄️ BUSHMAN DC65-X 65L HEAVY DUTY UPRIGHT CARAVAN FRIDGE
2026 Heavy Duty 65L 12V/24V Upright Fridge – Secop Danfoss BD35-HD Compressor, 43°C Tropical Rating, Reversible Door & Free Mounting Kit
🚐 Compact, efficient and designed for serious mobile installations, the Bushman DC65-X 65L Caravan Fridge is a heavy-duty upright 12V/24V refrigerator built for caravans, camper trailers, canopies, vans, boats and off-grid touring setups.
Updated for the 2026 Heavy Duty Series, the DC65-X features Bushman’s new Secop Danfoss BD35-HD compressor, a supplied tropical rating for ambient temperatures up to 43°C, low average power consumption and a robust refrigeration system designed for demanding mobile environments.
Inside, height-adjustable heavy-duty wire shelves, large door balconies with retaining rails, room for suitable tall bottles and a practical crisper tub make the 65L cabinet easy to organise while travelling.
The DC65-X is designed for built-in installation and includes a mounting kit as standard. Its reversible door, Anderson connection and compact 525mm cabinet height make it a practical choice for custom cabinetry where available space is limited.
⚡ KEY FEATURES
❄️ 65L Compact Upright Fridge
Provides useful refrigerator and freezer storage in a compact upright cabinet suited to vans, caravans, camper trailers, boats and canopy installations.
⚙️ 2026 Secop Danfoss BD35-HD Compressor
Updated Heavy Duty Series compressor designed for reliable mobile refrigeration and demanding off-road applications.
🛡️ 7-Year 12V Compressor Warranty
Backed by Bushman’s supplied 7-year warranty on the 12V compressor.
🌴 Tropical Rated to 43°C Ambient
Designed for operation in demanding Australian conditions with a supplied tropical rating of approximately 43°C ambient temperature.
⚡ Ultra-Efficient Bushman Cooling System
Supplied average power use is approximately 1.0Ah per hour at 25°C ambient temperature on a 12V system.
🔋 12V / 24V DC Operation
Suitable for common caravan, vehicle, truck, camper, boat and off-grid battery systems.
🔗 Anderson Plug Connection
Includes an approximately 1.2m 12V/24V Anderson lead for straightforward connection to a compatible electrical system.
🔩 Free Mounting Kit Included
The supplied mounting kit makes it easier to integrate the fridge into compatible cabinetry.
↔️ Reversible Door
Provides greater installation flexibility when fitting the refrigerator beside cabinetry, walls or other equipment.
🧱 Height-Adjustable Shelves
Internal shelving can be repositioned to better suit different food, bottle and container sizes.
🔩 Heavy-Duty Wire Shelves
Upgraded shelving is designed to cope with vibration and bumps during touring and off-road use.
🥤 Large Door Shelves
Provides convenient storage for bottles, jars and frequently accessed refrigerator items.
🛡️ Door Balcony Retaining Rails
Rails help prevent stored items moving excessively while the vehicle or boat is underway.
🍾 Room for Tall Bottles
Internal layout provides practical vertical space for suitable taller drink bottles.
🥬 Handy Crisper Tub
Dedicated storage compartment provides a convenient location for fruit, vegetables and smaller food items.
🛞 Soft Custom Rubber Feet
Bushman’s soft rubber feet are designed to help cushion the refrigerator during mobile use.
📞 Lifetime Bushman Customer Support
Lifetime Bushman customer support is included according to the supplied product information.
🚐 COMPACT 65L UPRIGHT FRIDGE FOR MOBILE INSTALLATIONS
The DC65-X is designed for users who want the convenience of an upright refrigerator without requiring the space of a larger caravan fridge.
Its compact cabinet is particularly well suited to:
- 🚐 Smaller caravans
- 🚐 Campervan conversions
- ⛺ Camper trailers
- 🛻 Ute canopies
- 🚤 Boats
- 🚚 Trucks and work vehicles
- 🏕️ Custom camping builds
- 🔋 Off-grid installations
The upright design gives you convenient front-door access without needing to lift a chest-fridge lid or slide the entire refrigerator out of cabinetry.
⚙️ NEW 2026 SECOP DANFOSS BD35-HD COMPRESSOR
The 2026 DC65-X Heavy Duty Series is fitted with the Secop Danfoss BD35-HD compressor.
Bushman describes this as part of its latest Heavy Duty 12V compressor platform and positions the DC65-X for demanding trucking, off-road and touring applications.
Compressor: Secop Danfoss BD35-HD
Compressor drive: Variable speed
Supplied operating current range: Approximately 2A to 4.5A
12V compressor warranty: 7 Years
The supplied Bushman information also states that the compressor platform is German designed and Japanese owned.
🌴 TROPICAL RATED TO 43°C AMBIENT
The DC65-X carries a supplied tropical rating for operation in ambient temperatures up to approximately 43°C.
This is particularly useful in Australian caravans, camper trailers, canopies and boats where cabinet and surrounding temperatures can become high during summer travel.
⚠️ IMPORTANT: Tropical rating does not eliminate the need for correct ventilation. The refrigeration system must still receive suitable airflow when installed inside cabinetry.
⚡ ULTRA-EFFICIENT BUSHMAN COOLING SYSTEM
The DC65-X uses a genuine Bushman-designed cooling system developed to provide efficient refrigeration with low electrical demand.
The supplied average power-use figure is approximately 1.0 Amp/hr over 24 hours with:
Ambient temperature: 25°C
Fridge temperature: Approximately 4°C
Supply voltage: 12V
Average supplied consumption: Approximately 1.0Ah per hour
Variable-speed compressor current draw: Approximately 2A to 4.5A
⚠️ IMPORTANT: Actual power consumption and battery runtime will vary according to ambient temperature, thermostat setting, food load, ventilation, door-opening frequency, wiring condition, battery voltage and other electrical loads.
❄️ FRIDGE & FREEZER TEMPERATURES
The DC65-X combines a main refrigerator compartment with an internal freezer section.
Supplied fridge temperature: Approximately 4°C ±2°C
Supplied freezer temperature: Approximately -12°C ±2°C
This provides practical refrigeration for everyday food and drinks while retaining a compact frozen-storage area.

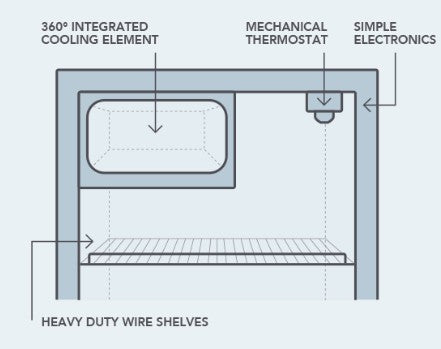

🔩 HEIGHT-ADJUSTABLE HEAVY-DUTY SHELVES
The internal shelves can be adjusted vertically to better suit the food, bottles and containers you need to carry.
Bushman also specifies upgraded heavy-duty wire shelving designed for off-road and mobile use.
This provides additional flexibility compared with a fixed shelf arrangement and makes it easier to optimise the available 65L capacity.

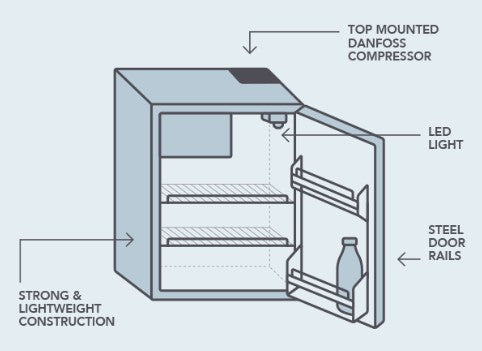

🥤 LARGE DOOR BALCONIES WITH RETAINING RAILS
The DC65-X features large door storage areas for convenient access to bottles and frequently used food items.
Retaining rails help keep items in place while the vehicle, caravan or boat is moving.
This is particularly useful in off-road and marine applications where movement and vibration are common.
🍾 ROOM FOR TALL BOTTLES
Despite its compact overall size, the DC65-X provides space to stand suitable tall bottles upright.
This helps maximise the practical usefulness of the cabinet for drinks, milk and other everyday touring supplies.
🥬 HANDY CRISPER TUB
A crisper tub is included as part of the DC65-X storage system.
This provides a separate area for fruit, vegetables and smaller refrigerated items while helping keep the main cabinet organised.

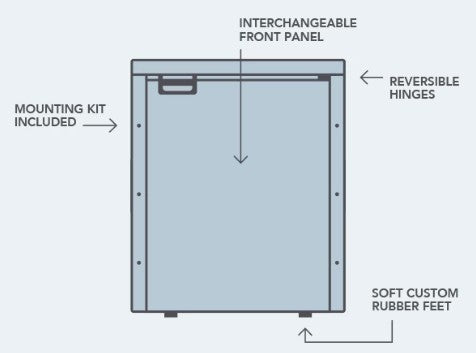

🔩 FREE MOUNTING KIT INCLUDED
The DC65-X is designed for built-in installation and includes a mounting kit as standard.
This allows the refrigerator to be installed into compatible caravan, canopy, camper or boat cabinetry without needing to source a separate factory mounting kit.
The fridge can also be flush mounted to suitable cabinet work where the installation dimensions and ventilation requirements are met.
📐 MINIMUM FLUSH-MOUNT CUT-OUT
The supplied minimum cut-out dimensions for a flush-mounted installation are:
Height: Approximately 530mm
Width: Approximately 455mm
Depth: Approximately 515mm
The supplied installation information states that these dimensions allow approximately a 50mm gap at the rear when installed with the door sitting proud of the cabinetwork.
⚠️ IMPORTANT: Confirm all ventilation, wiring and service-access requirements before constructing cabinetry around the refrigerator.
↔️ REVERSIBLE DOOR
The DC65-X features a reversible door, allowing the opening direction to be configured to better suit the installation.
This is particularly useful in compact caravans, camper trailers, boats and canopies where surrounding cabinetry can determine the most practical door direction.
🛞 CUSTOM SOFT RUBBER FEET
Bushman incorporates custom soft rubber feet into the DC65-X design.
These are intended to provide additional cushioning for the refrigerator during travelling and help complement its heavy-duty mobile construction.
🔋 12V & 24V DC OPERATION
The Bushman DC65-X operates from either 12V or 24V DC power.
This makes it suitable for a broad range of electrical systems including:
- 🚐 Caravan auxiliary batteries
- ⛺ Camper trailer systems
- 🛻 Ute canopy electrical systems
- 🚤 Boat battery systems
- 🚚 12V and 24V truck systems
- 🚐 Campervan conversions
- 🔋 Off-grid battery installations
🔗 1.2M ANDERSON LEAD
The DC65-X is supplied with an approximately 1.2m 12V/24V Anderson lead.
The Anderson connection provides a robust electrical interface for compatible fixed and semi-permanent mobile installations.
⚠️ IMPORTANT: Use correctly sized vehicle wiring, appropriate circuit protection and suitable connectors for the electrical installation.
🚚 DESIGNED FOR DEMANDING MOBILE & OFF-ROAD USE
Bushman positions the DC65-X as a heavy-duty refrigerator suitable for demanding trucking and off-road applications.
The combination of upgraded wire shelves, door retaining rails, variable-speed compressor, compact cabinet and soft rubber feet is designed to make the fridge practical for installations that regularly experience vibration and rough roads.
🚤 A PRACTICAL FRIDGE FOR BOATS
The 65L capacity and compact upright format make the DC65-X a popular option for compatible boat installations.
Its 12V/24V operation means it can integrate with suitable marine battery systems where correct electrical installation, ventilation and secure mounting are provided.
⚠️ IMPORTANT: For marine installations, ensure the complete installation is appropriate for the intended environment and protected from unsuitable moisture exposure.
🚐 IDEAL FOR VANS & SMALLER CARAVANS
At approximately 525mm high and 450mm wide, the DC65-X provides useful upright storage without occupying the space required by a full-size caravan refrigerator.
This makes it a strong option for compact van conversions and smaller caravan layouts where every millimetre of cabinetry matters.
🛻 GREAT FOR UTE CANOPIES
The compact upright format also suits compatible ute canopy builds where front-opening access is preferred.
Its reversible door and included mounting kit give installers additional flexibility when designing storage systems around the refrigerator.
📏 EXTERNAL DIMENSIONS & WEIGHT
Cabinet height: Approximately 525mm
Height including handle: Approximately 530mm
Width: Approximately 450mm
Depth: Approximately 515mm
Weight: Approximately 18kg
📐 FLUSH-MOUNT CUT-OUT DIMENSIONS
Minimum cut-out height: Approximately 530mm
Minimum cut-out width: Approximately 455mm
Minimum cut-out depth: Approximately 515mm
Supplied rear installation allowance: Approximately 50mm gap when installed as specified with the door sitting proud of the cabinetwork
📋 TECHNICAL SPECIFICATIONS
Brand: Bushman
Product: DC65-X Caravan Fridge
Series: 2026 Heavy Duty Upright Fridge Series
Capacity: 65L
Operating voltage: 12V / 24V DC
Power connection: Anderson
Anderson lead length: Approximately 1.2m
Compressor: Secop Danfoss BD35-HD
Compressor type: Variable-speed drive
Supplied compressor current draw: Approximately 2A to 4.5A
Fridge temperature: Approximately 4°C ±2°C
Freezer temperature: Approximately -12°C ±2°C
Tropical rating: Approximately 43°C ambient
Average supplied power use: Approximately 1.0Ah per hour
Power-use test condition: 25°C ambient, 12V operation
Cabinet height: Approximately 525mm
Height including handle: Approximately 530mm
Width: Approximately 450mm
Depth: Approximately 515mm
Minimum flush-mount cut-out: Approximately 530mm H × 455mm W × 515mm D
Weight: Approximately 18kg
Door: Reversible
Shelves: Height-adjustable heavy-duty wire shelves
Door storage: Large balconies with retaining rails
Crisper tub: Included
Mounting kit: Included
12V compressor warranty: 7 Years
Customer support: Lifetime Bushman customer support as supplied
🏆 PRODUCTREVIEW CARAVAN FRIDGE RECOGNITION
The supplied Bushman information states that the range has received ProductReview Best Caravan Fridge recognition across the years from 2020 through 2026.
- 🏆 2020
- 🏆 2021
- 🏆 2022
- 🏆 2023
- 🏆 2024
- 🏆 2025
- 🏆 2026
🇦🇺 BUSHMAN HEAVY DUTY DESIGN
Bushman describes the 2026 Heavy Duty Series as featuring Australia’s first and only Secop Danfoss Heavy Duty Series 12V compressor paired with a 7-year compressor warranty.
The DC65-X combines this compressor platform with Bushman’s own cooling-system design, off-road-focused shelving and practical mobile installation features.
🚐 SUITABLE APPLICATIONS
- 🚐 Caravans
- 🚐 Campervans
- ⛺ Camper trailers
- 🛻 Ute canopies
- 🚤 Boats
- 🚚 Trucks
- 🚙 4WD touring builds
- 🏕️ Camping installations
- 🔋 12V off-grid systems
- ⚡ 24V vehicle systems
- 🗺️ Long-distance touring
- 🏜️ Remote travel setups
📦 WHAT’S INCLUDED?
- ❄️ 1 × Bushman DC65-X 65L Heavy Duty Upright Fridge
- 🔩 1 × Supplied Mounting Kit
- 🔗 1 × Approximately 1.2m 12V/24V Anderson Lead
- 🔩 Height-Adjustable Heavy-Duty Wire Shelves
- 🥬 1 × Crisper Tub
- 🚪 Reversible Door Assembly
- 🛡️ Supplied 7-Year 12V Compressor Warranty
- 📞 Lifetime Bushman Customer Support as stated in the supplied information
⚠️ No 240V power adaptor, battery, solar equipment or other accessories are stated as included in the supplied product information.
⚠️ INSTALLATION & FITMENT INFORMATION
The DC65-X is designed for built-in use, so the available cabinet space and ventilation should be planned before installation.
Check the following:
- Required refrigerator capacity – 65L
- Available cabinet height
- Available cabinet width
- Available cabinet depth
- Minimum flush-mount cut-out requirements
- Rear ventilation allowance
- Door-opening clearance
- Required door hinge direction
- Access to thermostat and refrigerator contents
- Suitable mounting location for the supplied kit
- Suitable 12V or 24V DC supply
- Correct wiring size
- Appropriate circuit protection
- Battery capacity and expected runtime
- Service access around the refrigeration system
⚠️ IMPORTANT: The supplied minimum flush-mount cut-out is approximately 530mm high × 455mm wide × 515mm deep.
⚠️ IMPORTANT: The supplied installation information refers to approximately 50mm rear clearance when fitted with the door sitting proud of the cabinetwork.
⚠️ IMPORTANT: Maintain suitable ventilation around the refrigerator and cooling system, particularly in enclosed cabinetry.
⚠️ IMPORTANT: Use correctly sized wiring, connectors and circuit protection for the installation.
⚠️ IMPORTANT: Confirm that the supporting battery system has sufficient usable capacity for the required operating time.
❓ FREQUENTLY ASKED QUESTIONS
What is the Bushman DC65-X?
The DC65-X is a compact 65L upright refrigerator designed for built-in 12V/24V installations in caravans, camper trailers, canopies, vans, boats and other mobile applications.
Is the DC65-X part of the 2026 Heavy Duty Series?
Yes. The supplied product information identifies the DC65-X as part of Bushman’s updated 2026 Heavy Duty Upright Fridge Series.
What compressor does the DC65-X use?
The supplied specification lists the Secop Danfoss BD35-HD compressor.
What is the compressor warranty?
Bushman supplies a 7-year warranty on the 12V compressor according to the supplied product information.
Is the DC65-X tropical rated?
Yes. The supplied tropical rating is approximately 43°C ambient.
Does it run on 12V?
Yes. The DC65-X supports 12V DC operation.
Does it run on 24V?
Yes. It also supports 24V DC systems.
Does the fridge include an Anderson connection?
Yes. An approximately 1.2m 12V/24V Anderson lead is supplied.
How much power does the DC65-X use?
The supplied average figure is approximately 1.0Ah per hour at 25°C ambient temperature on a 12V system.
What is the compressor current draw?
The supplied variable-speed compressor range is approximately 2A to 4.5A while operating.
Will actual battery consumption vary?
Yes. Actual consumption depends on ambient temperature, selected thermostat setting, fridge contents, ventilation, door-opening frequency, wiring, battery voltage and other electrical loads.
What temperature does the refrigerator run at?
The supplied fridge temperature is approximately 4°C ±2°C.
What temperature does the freezer run at?
The supplied freezer temperature is approximately -12°C ±2°C.
Does the DC65-X have a crisper?
Yes. A crisper tub is included.
Are the shelves adjustable?
Yes. The supplied product information states that the shelves are height adjustable.
Are the shelves suitable for off-road use?
Bushman describes the upgraded wire shelves as heavy-duty and designed to handle bumps associated with mobile and off-road travel.
Do the door shelves have retaining rails?
Yes. The supplied information states that rails are fitted to the door balconies to help prevent items moving while underway.
Can I stand tall bottles upright?
Yes. Bushman specifically identifies room for suitable tall bottles as one of the DC65-X storage features.
Can the door opening direction be changed?
Yes. The DC65-X has a reversible door to provide additional installation flexibility.
Is a mounting kit included?
Yes. Bushman supplies a mounting kit with the DC65-X as a standard item.
Can the fridge be flush mounted?
Yes. The supplied product information states that the DC65-X can be flush mounted to compatible cabinetwork.
What size cut-out does the DC65-X require?
The supplied minimum flush-mount cut-out is approximately 530mm high × 455mm wide × 515mm deep.
Does it need ventilation behind the fridge?
Yes. The supplied installation information refers to approximately 50mm of rear space in the stated flush-mount configuration. Suitable ventilation remains essential.
How big is the DC65-X?
The supplied external dimensions are approximately 525mm high × 450mm wide × 515mm deep.
How tall is it including the handle?
The supplied overall height including the handle is approximately 530mm.
How much does it weigh?
The supplied weight is approximately 18kg.
Is the DC65-X suitable for a caravan?
Yes. The DC65-X is designed specifically as a compact upright refrigerator for mobile applications including smaller caravans.
Can I install it in a camper trailer?
Yes. Camper trailers are specifically listed among the popular applications for this model.
Is it suitable for a ute canopy?
Yes. Canopy installations are included in the supplied applications, provided the fridge fits the available space and receives suitable ventilation and electrical supply.
Can I install the DC65-X in a van?
Yes. Vans are one of the applications specifically identified in the supplied Bushman information.
Is the DC65-X suitable for a boat?
Yes. Boats are specifically mentioned as a popular application for the DC65-X, subject to correct installation, ventilation, electrical supply and mounting.
Is it designed for off-road use?
Bushman describes the refrigeration system and heavy-duty shelving as designed for demanding trucking and off-road applications.
What are the soft rubber feet for?
The custom soft rubber feet are designed to help cushion the fridge during mobile use.
Does Bushman provide customer support?
Yes. Lifetime Bushman customer support is stated as part of the supplied product information.
Has the Bushman caravan fridge received awards?
The supplied information states that Bushman has received ProductReview Best Caravan Fridge recognition across the years from 2020 through 2026.
Does the DC65-X run from 240V?
The supplied specifications for this listing identify the refrigerator as a 12V/24V DC model. A 240V power adaptor or transformer is not stated as included with the DC65-X.
What comes with the DC65-X?
The supplied product information includes the 65L refrigerator, mounting kit, approximately 1.2m Anderson lead, adjustable shelving and crisper tub.
How do I know if the DC65-X will fit my cabinet?
Compare your available space against the approximately 525mm high × 450mm wide × 515mm deep fridge dimensions and the approximately 530mm × 455mm × 515mm minimum flush-mount cut-out. Also account for rear ventilation, door clearance, electrical wiring and installation access.
❄️ COMPACT HEAVY-DUTY REFRIGERATION FOR VANS, CANOPIES, BOATS & CARAVANS
Choose the Bushman DC65-X when you want a compact upright refrigerator with practical storage, low power demand and a heavy-duty cooling system designed for mobile Australian adventures.
With the 2026 Secop Danfoss BD35-HD compressor, 12V/24V operation, 43°C tropical rating, adjustable heavy-duty shelves, reversible door, crisper tub, Anderson connection and supplied mounting kit, the DC65-X is built to integrate neatly into serious touring setups.
Get dependable upright refrigeration in a compact 65L package backed by Bushman’s supplied 7-year 12V compressor warranty and lifetime customer support.
Share
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.
