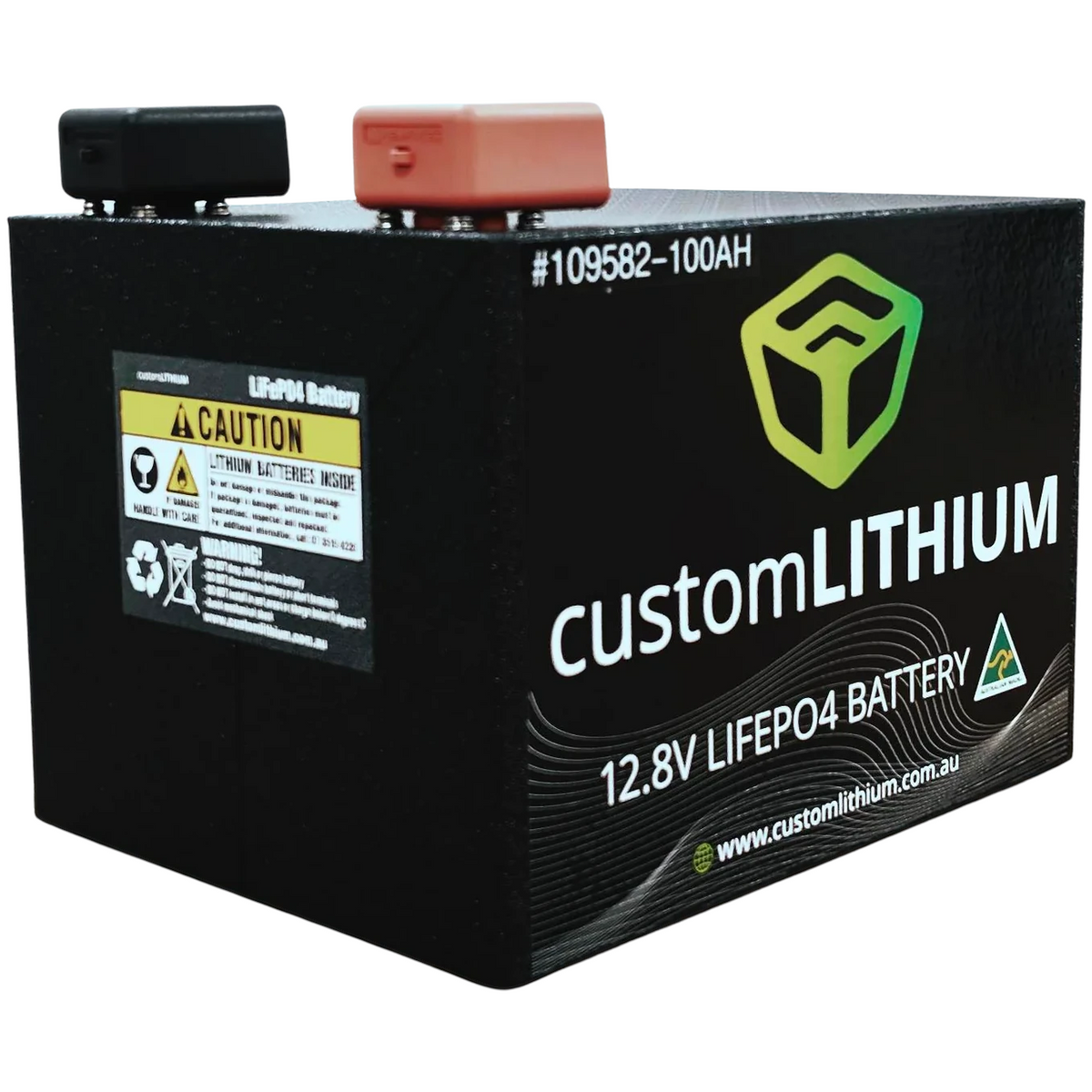

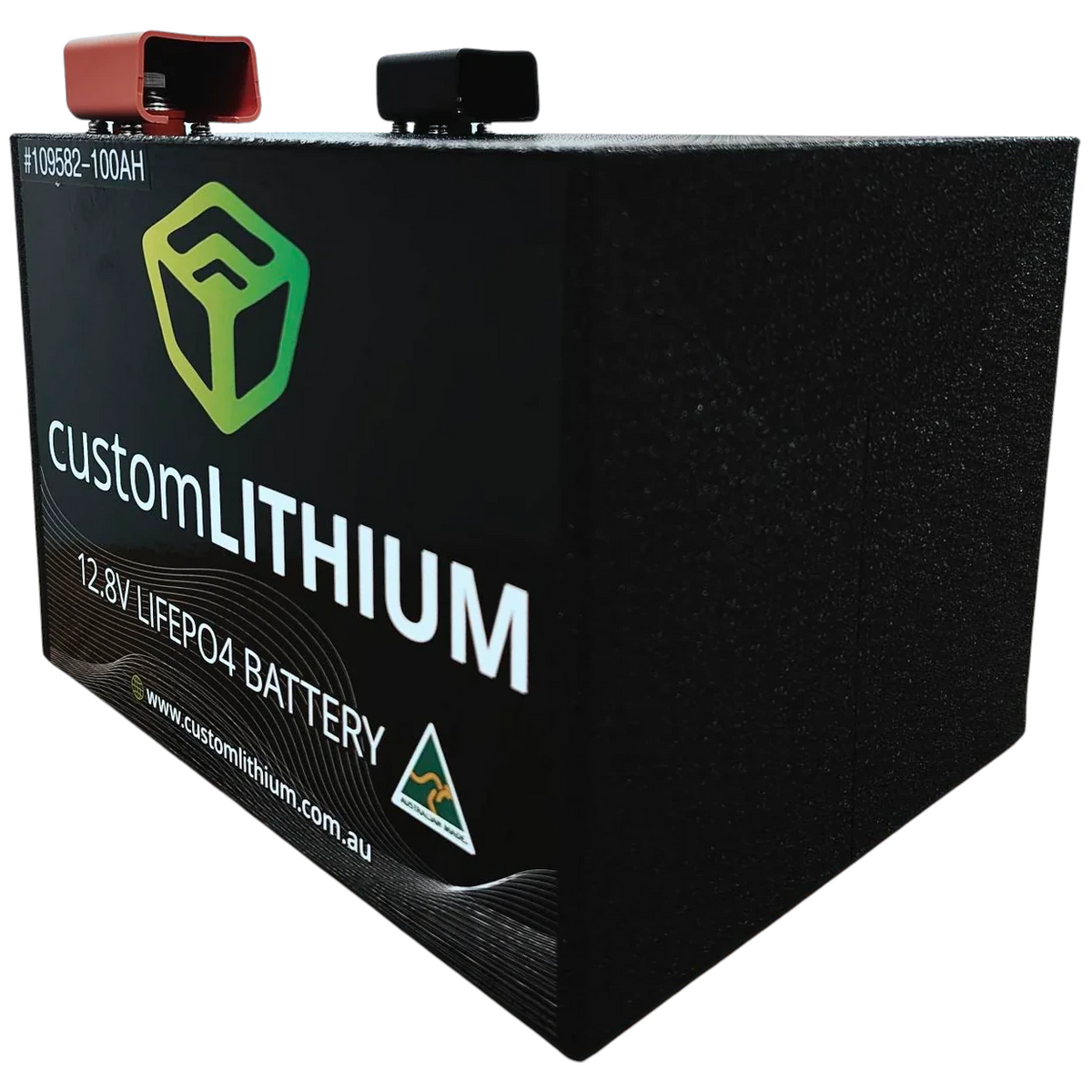

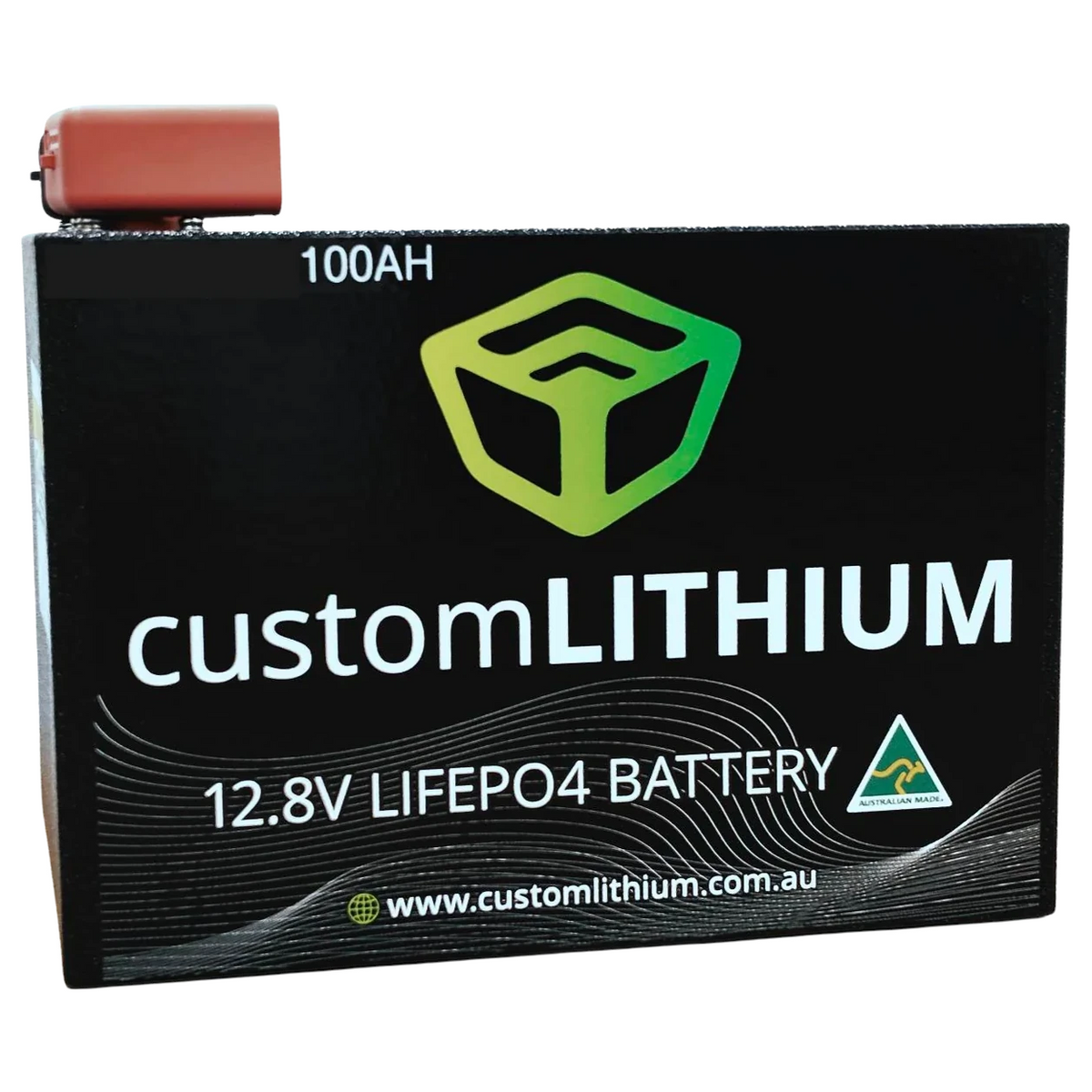

Compact 100Ah LiFePO4 Battery | 180A BMS

🔋 CUSTOM LITHIUM COMPACT 100AH LiFePO4 BATTERY – AUSTRALIAN MADE

100Ah • 12.8V LiFePO4 • 180A Continuous BMS • Active Balancing • 11.2kg • 7 Year Warranty

The Custom Lithium Compact 100Ah Battery is designed for caravans, RVs and compact auxiliary power systems where space is limited but reliable lithium performance is essential.

Built in Brisbane using premium A-grade automotive LiFePO4 cells, this compact 12.8V battery combines a high-current BMS, active cell balancing and a tough ABS enclosure in a package weighing only 11.2kg.

With a 180A continuous discharge rating, it provides substantially more current capability than many conventional compact 100Ah batteries, making it suitable for demanding 12V systems and appropriately designed inverter installations.

---

⭐ KEY FEATURES

🇦🇺 Australian Made
Built in Brisbane and supplied as a certified Australian Made product, supporting local manufacturing and workmanship.

🔋 100Ah LiFePO4 Capacity
A practical capacity for caravans and RVs running refrigeration, lighting, electronics and other auxiliary equipment during shorter off-grid stays.

⚡ 180A Continuous Discharge
High-current capability makes the battery suitable for demanding 12V loads and compatible inverter systems when the overall installation is correctly designed.

⚖️ Only 11.2kg
Provides 100Ah of lithium capacity at a fraction of the weight of many equivalent lead-acid battery installations.

📐 Compact 243 × 190 × 200mm Design
Designed specifically for caravans, RVs and installations where available battery space is limited.

🧠 Heltech BMS
The integrated battery management system protects against operating conditions such as over-discharge and excessive temperature.

⚖️ Active Cell Balancing
An active balancer helps maintain consistency between individual cells for more stable battery performance.

🛡️ High-Strength ABS Enclosure
The custom enclosure reduces overall footprint while protecting the internal battery components.

🚙 Built for Corrugations & Touring
Internal components are insulated against vibration to help protect the battery during remote-area and off-road travel.

🧪 Individually Bench Tested
Each battery is individually tested before supply as part of Custom Lithium's quality-control process.

🛡️ 7 Year Warranty
Backed by a full 7-year manufacturer warranty.

---

🚐 DESIGNED FOR CARAVANS & RVS

The Compact range is designed to provide useful lithium capacity without consuming excessive storage space.

A 100Ah battery is well suited to medium-use systems and shorter off-grid stays where typical loads may include:

• ❄️ 12V fridge or freezer
• 💡 Caravan & camp lighting
• 📡 Starlink
• 💻 Computers & electronics
• 📷 Camera & charging equipment
• 💨 Air compressors
• 🔌 Compatible 240V inverter systems
• ☕ Coffee machines through a correctly sized inverter
• 🍳 Induction cooking through a correctly designed inverter system

---

🔋 PREMIUM LiFePO4 CELL TECHNOLOGY

The battery uses A-grade automotive LiFePO4 cells. LiFePO4 chemistry is widely used in auxiliary and off-grid applications because of its thermal stability, long service life and high usable capacity compared with traditional lead-acid batteries.

The battery is also equipped with a high-current BMS and active cell balancing to manage and protect individual cells during operation.

---

📊 TECHNICAL SPECIFICATIONS

Capacity: 100Ah

Nominal Voltage: 12.8V

Continuous Discharge: 180A

Peak Discharge / Protection: 800–1000A as specified by manufacturer

Recommended Charge Current: 50A

Charge Voltage: 14.2–14.6V

Absorption / Float Voltage: 13.4–13.6V

Low-Voltage Cut-Off: 10.5V

Operating Temperature: 0°C to 65°C

Terminals: M8

Dimensions: 243mm L × 190mm W × 200mm H

Weight: 11.2kg

Battery Chemistry: LiFePO4

BMS: Heltech High-Current BMS

Cell Balancing: Active Balancer

Warranty: 7 Years

Manufactured: Brisbane, Australia

---

🇦🇺 AUSTRALIAN MADE

Custom Lithium batteries are built in Brisbane and supplied as Australian Made.

For caravan and touring customers, this provides the benefit of locally manufactured battery systems backed by Australian warranty support.

---

📋 STANDARDS & COMPONENT COMPLIANCE

Custom Lithium states that its batteries are manufactured using high-quality IEC 62619-certified components and meet the recommendations of AS/NZS 3001.

---

❓ QUICK FAQ

Can I replace an AGM battery with this lithium battery?

Potentially, but the complete charging system must be lithium compatible. Check your DC-DC charger, solar regulator and 240V charger to ensure they support the required lithium charging profile before changing from AGM to LiFePO4.

What size DC-DC charger should I use?

The manufacturer recommends up to approximately 50A standard charging. A 40A charger provides relatively fast recovery, while 25A or 30A chargers can also be used but will take longer to recharge the battery.

What charging voltages does it require?

The supplied specifications state a charge voltage of 14.2–14.6V and absorption/float voltage of 13.4–13.6V.

Can it run an inverter?

Yes, the battery's 180A continuous discharge capability makes it suitable for compatible inverter installations. Maximum usable inverter size depends on the inverter's DC current demand, efficiency, surge requirements, cable sizing, fusing and complete system design.

What happens if the battery shuts down from being discharged too far?

A lithium-compatible charger with an appropriate battery-recovery or power-supply function may be required to wake the BMS. Follow the battery and charger manufacturer's recovery procedure rather than bypassing the BMS or applying uncontrolled charging current.

---

🔋 COMPACT SIZE. HIGH CURRENT. AUSTRALIAN MADE.

At just 243 × 190 × 200mm and 11.2kg, the Custom Lithium Compact 100Ah combines useful off-grid capacity, a high-current 180A BMS, active balancing and Australian manufacturing in a battery designed specifically for caravan and RV installations.

More usable power. Less weight. More room for the rest of your setup.
