🔩 CUSTOM LITHIUM FORD RANGER DC-DC MOUNTING BRACKET – 2022+

Vehicle-Specific Mounting Bracket • Ford Ranger 2022+ • REDARC BCDC • Victron MPPT & Orion • Alpha 50 Compatible with Amplifier Relocation

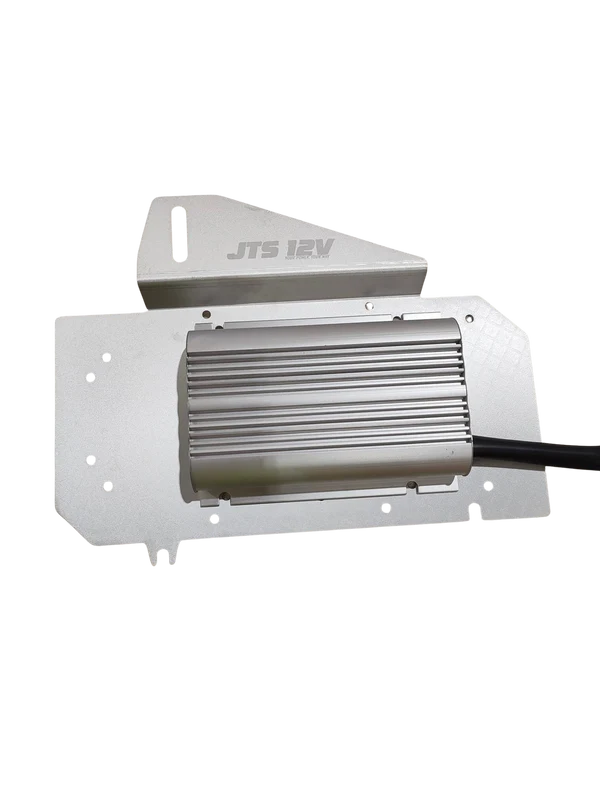

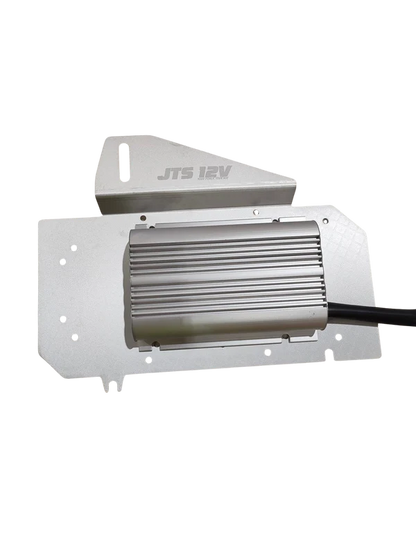

The Custom Lithium Ford Ranger DC-DC Mounting Bracket is designed specifically for Ford Ranger models from 2022 onwards, providing a dedicated mounting solution for a range of popular REDARC and Victron charging equipment.

Designed to simplify the installation of a vehicle auxiliary battery system, the bracket supports several REDARC BCDC chargers as well as a combined Victron SmartSolar 100/20 MPPT and Orion 50A DC-DC charger setup.

The bracket can also be used with a REDARC Alpha 50, although the factory amplifier must be relocated approximately 20–50mm to create sufficient clearance.

---

⭐ KEY FEATURES

🚙 Designed for Ford Ranger 2022+
Purpose-built to suit Next Generation Ford Ranger models from 2022 onwards.

🔩 Vehicle-Specific Charger Mounting
Provides a dedicated location for compatible DC-DC charging equipment as part of an auxiliary battery installation.

⚡ REDARC BCDC Compatible
Designed to suit multiple REDARC Core and BCDC charger models.

🔵 Victron Compatible
Can accommodate a Victron 100/20 MPPT solar controller together with an Orion 50A DC-DC charger as specified.

⚡ REDARC Alpha 50 Option
The Alpha 50 can be fitted, but amplifier relocation is required to provide sufficient installation clearance.

🧰 Cleaner Auxiliary Battery Installation
Helps provide a more organised mounting solution for charging equipment in a vehicle-specific Ranger installation.

🇦🇺 Australian Made
The supplied product information identifies the Custom Lithium mounting solution as Australian Made.

---

🚙 VEHICLE FITMENT

Designed to suit:

• Ford Ranger – 2022 onwards
• Next Generation Ford Ranger applications

---

⚡ COMPATIBLE REDARC CHARGERS

The supplied product information states that the bracket suits:

• REDARC BCDC Core 25
• REDARC BCDC Core 40
• REDARC BCDC25D
• REDARC BCDC40D
• REDARC BCDC50D

These options allow the bracket to be used across a range of vehicle charging requirements depending on battery capacity and desired charging rate.

---

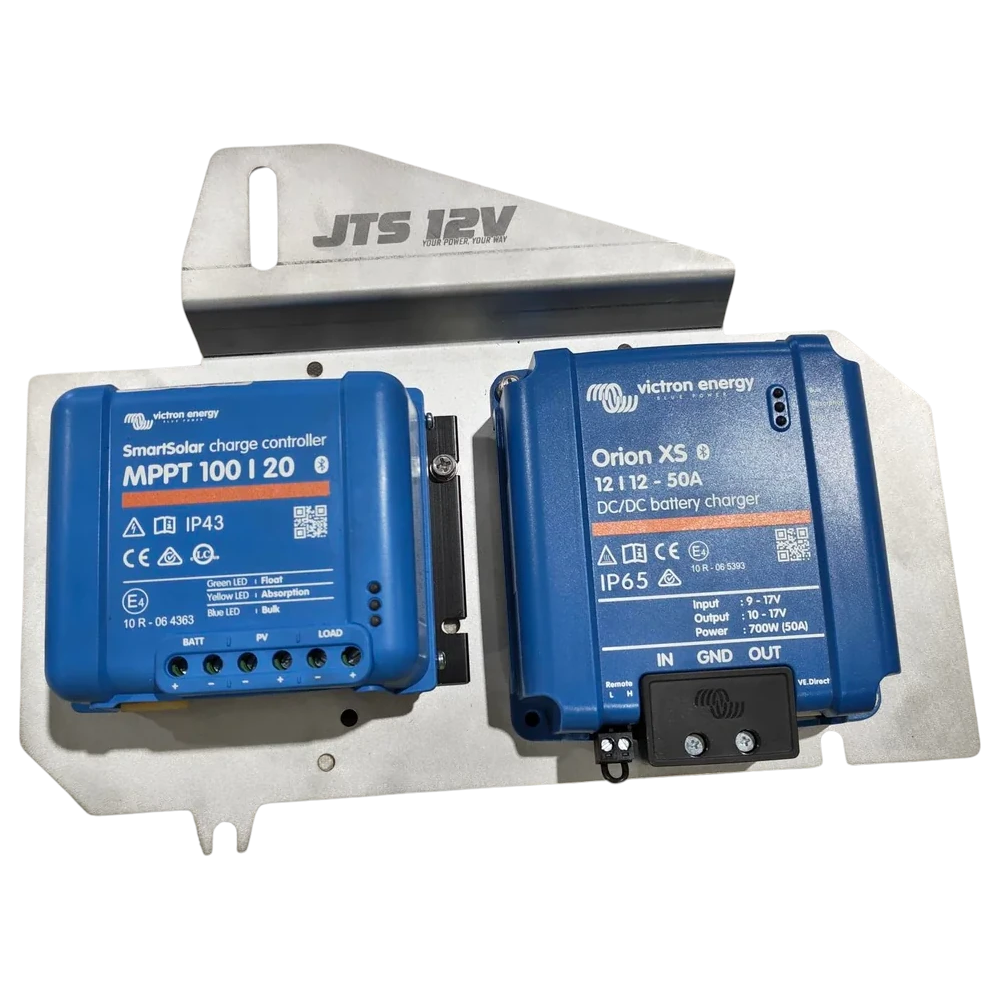

🔵 VICTRON CHARGER & SOLAR OPTION

The bracket is also specified to suit a combination of:

• Victron SmartSolar MPPT 100/20
• Victron Orion 50A DC-DC Charger

This provides an alternative charging layout for systems using separate Victron DC-DC and solar charging components.

---

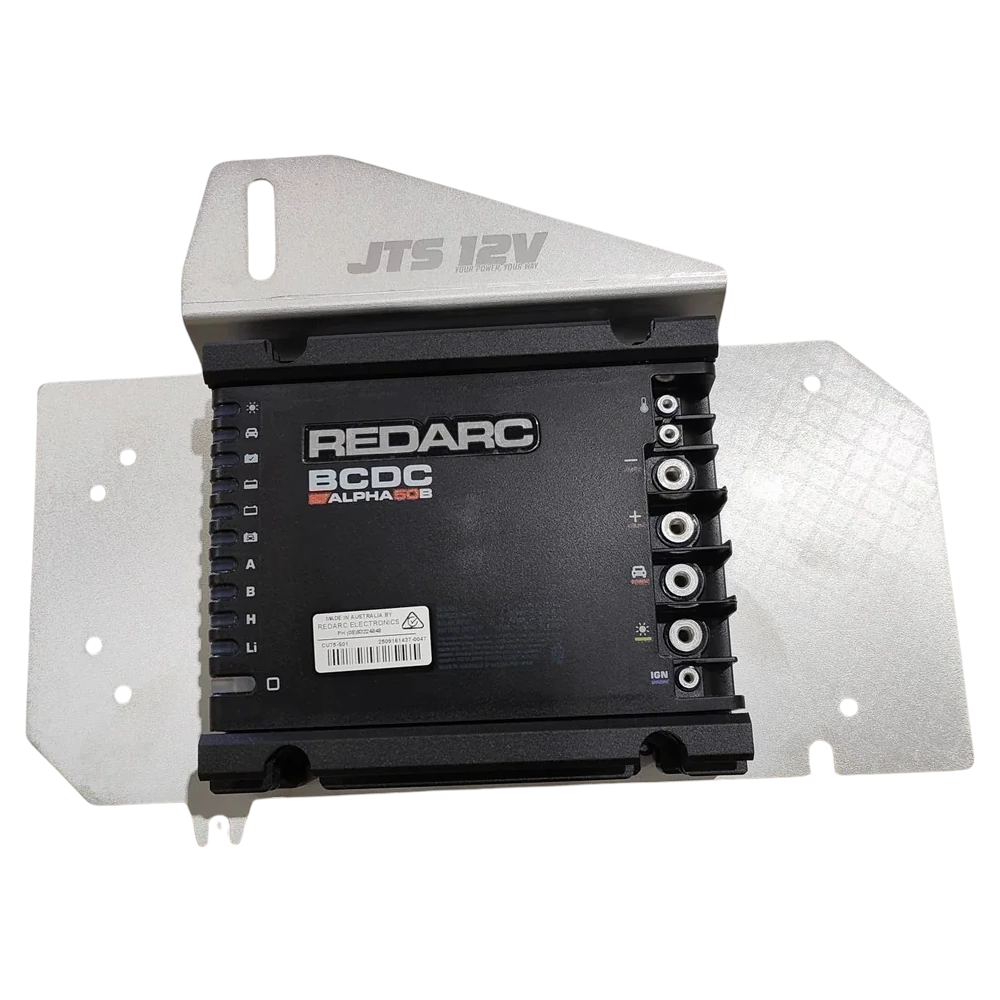

⚡ REDARC ALPHA 50 INSTALLATION

The REDARC Alpha 50 can be used with this mounting arrangement, but additional vehicle modification is required.

The supplied information states that the factory amplifier must be relocated by approximately 20–50mm to create the required clearance for the Alpha 50 charger.

⚠️ Amplifier relocation is required when fitting a REDARC Alpha 50. The exact amount of movement may vary between approximately 20mm and 50mm depending on the vehicle and installation.

---

🚐 BUILD A COMPLETE RANGER AUXILIARY POWER SYSTEM

The mounting bracket can form part of a complete Ford Ranger dual-battery system incorporating:

• Auxiliary LiFePO4 battery
• Compatible REDARC or Victron DC-DC charger
• Solar charging
• Battery monitoring
• Appropriate fuse protection
• Fridge & accessory circuits
• Inverter systems where required

The bracket helps provide a dedicated and organised mounting location for the charging hardware within the overall system.

---

🇦🇺 AUSTRALIAN MADE

The supplied product information identifies Custom Lithium's mounting solution as proudly Australian Made.

Choosing locally designed and manufactured components supports Australian manufacturing and helps provide vehicle-specific solutions developed around Australian touring applications.

---

🛠️ INSTALLATION NOTES

• Designed for Ford Ranger models from 2022 onwards
• Suits REDARC Core 25 & Core 40
• Suits REDARC BCDC25D, BCDC40D & BCDC50D
• Suits Victron SmartSolar 100/20 MPPT with Orion 50A DC-DC charger
• REDARC Alpha 50 can be used with amplifier relocation
• Alpha 50 requires approximately 20–50mm amplifier relocation

⚠️ Vehicle charging systems should be installed with correctly sized cabling, fuse protection, secure mounting and appropriate ventilation. Professional installation is recommended.

---

❓ QUICK FAQ

Which Ford Ranger models does this bracket suit?

It is designed for Ford Ranger models from 2022 onwards.

Does it suit the REDARC Core 25 and Core 40?

Yes. The supplied fitment information lists both the REDARC Core 25 and Core 40 as compatible.

Does it suit the REDARC BCDC50D?

Yes. The bracket is specified to suit the BCDC25D, BCDC40D and BCDC50D.

Can I use Victron charging equipment?

Yes. The supplied information states that the bracket suits a Victron 100/20 MPPT controller together with an Orion 50A DC-DC charger.

Can I fit a REDARC Alpha 50?

Yes, but the vehicle's amplifier must be relocated approximately 20–50mm to provide sufficient clearance.

Is this an Australian-made product?

The supplied product information identifies the Custom Lithium mounting solution as proudly Australian Made.

---

🔩 A VEHICLE-SPECIFIC CHARGER MOUNT FOR THE NEXT GEN FORD RANGER

Designed for Ford Ranger models from 2022 onwards, the Custom Lithium DC-DC Mounting Bracket provides a dedicated mounting solution for compatible REDARC and Victron charging hardware, helping create a cleaner and more integrated auxiliary battery installation.

Vehicle-specific fitment. Multiple charger options. Australian made.
