200W TOPCon Folding Solar Panel | No Controller

☀️ EXOTRONIC 200W FUSION PORTABLE FOLDING SOLAR PANEL – NO CONTROLLER

200W • 25.2% TOPCon Cells • Dual 100W Sections • Tempered Glass • Complete Cable Kit

The Exotronic 200W Fusion Portable Folding Solar Panel combines high-efficiency TOPCon solar technology with rugged folding construction for caravans, camper trailers, 4WDs, camping and off-grid power systems.

Featuring 25.2% efficient TOPCon monocrystalline cells and two independently wired 100W sections, the Fusion 200W is designed to deliver reliable portable solar charging while providing improved tolerance to partial shading.

⚡ KEY FEATURES

☀️ 200W Portable Solar Output
Provides useful portable solar capacity for caravan, RV, 4WD, camping and off-grid battery systems.

⚙️ 25.2% TOPCon Solar Cells
Advanced TOPCon monocrystalline cell technology is designed for high energy conversion, improved low-light performance and reduced internal electrical losses.

🌤️ Two Independent 100W Sections
The folding panel consists of two independently wired 100W sections, helping improve performance when one section is affected by partial shade.

🧳 Compact Folding Design
Folds down to approximately 690 × 670 × 40mm for easier transport and storage.

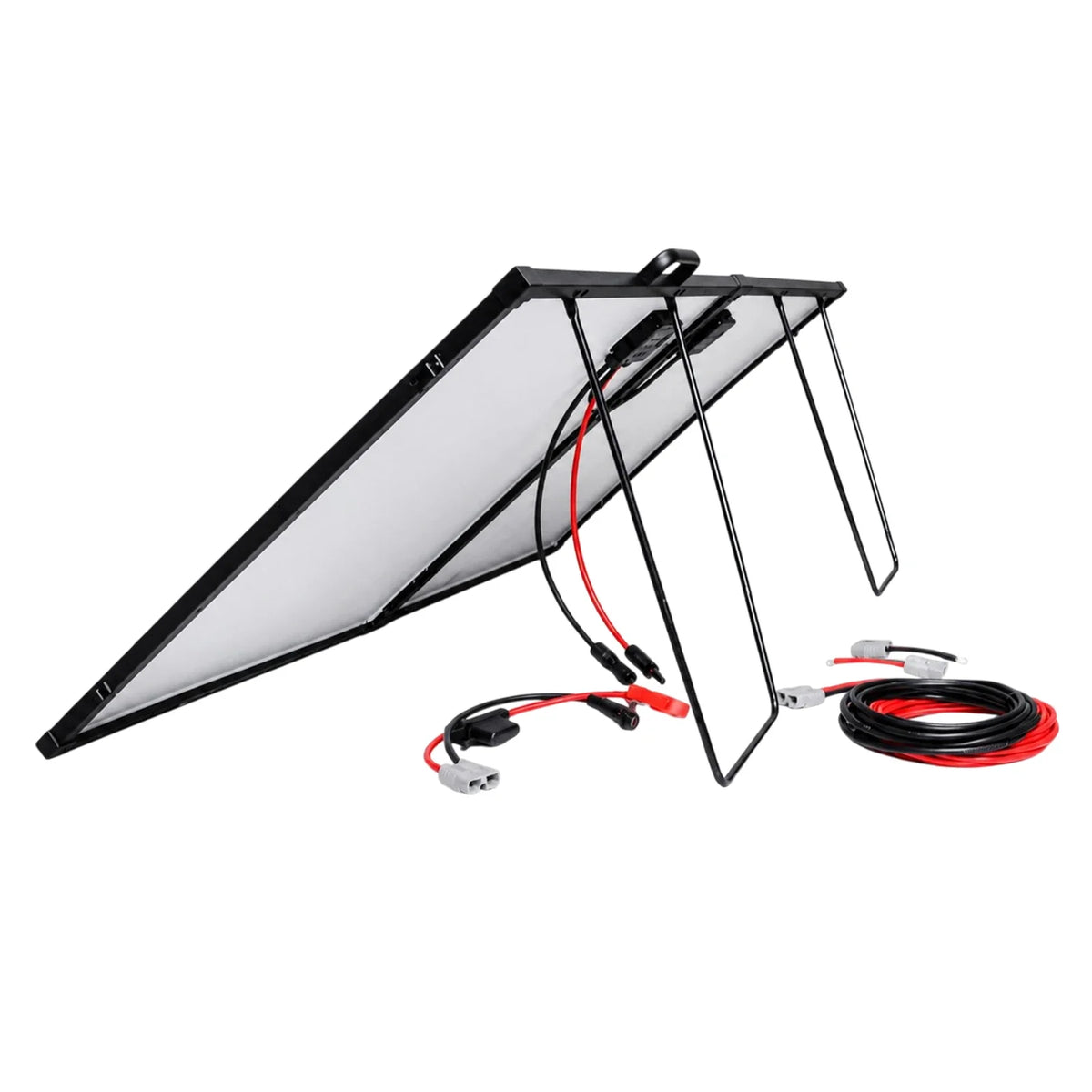

🦵 Fold-Away Support Legs
Integrated legs allow the panel to be positioned toward available sunlight when set up at camp.

🛡️ 3.2mm Tempered Glass
Provides a durable front surface suited to regular portable use and outdoor environments.

⬛ Black Anodised Aluminium Frame
Provides structural support with a durable corrosion-resistant finish.

🧳 Carry Handle, Latches & Protective Corners
Designed for repeated transport, storage and setup in touring and off-grid applications.

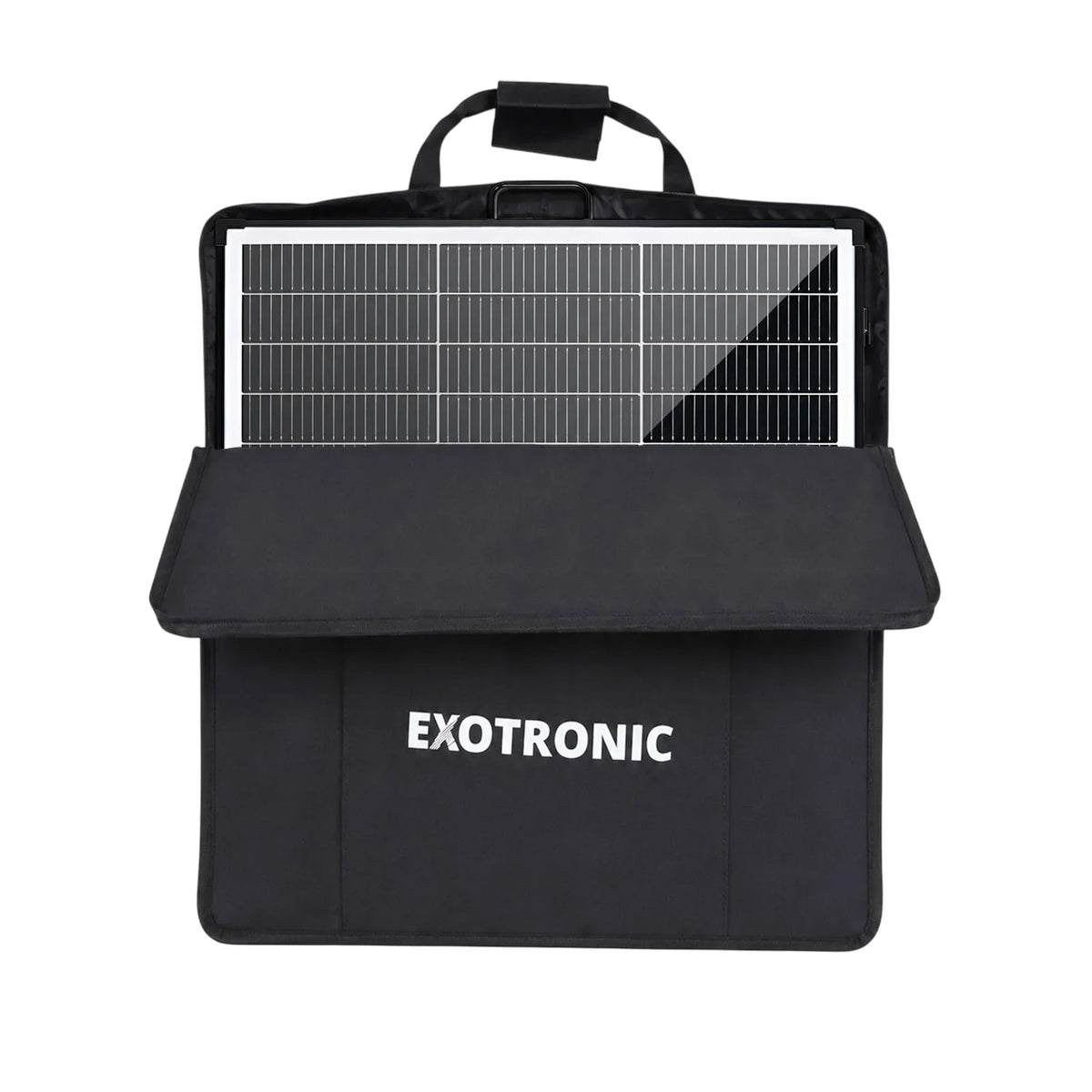

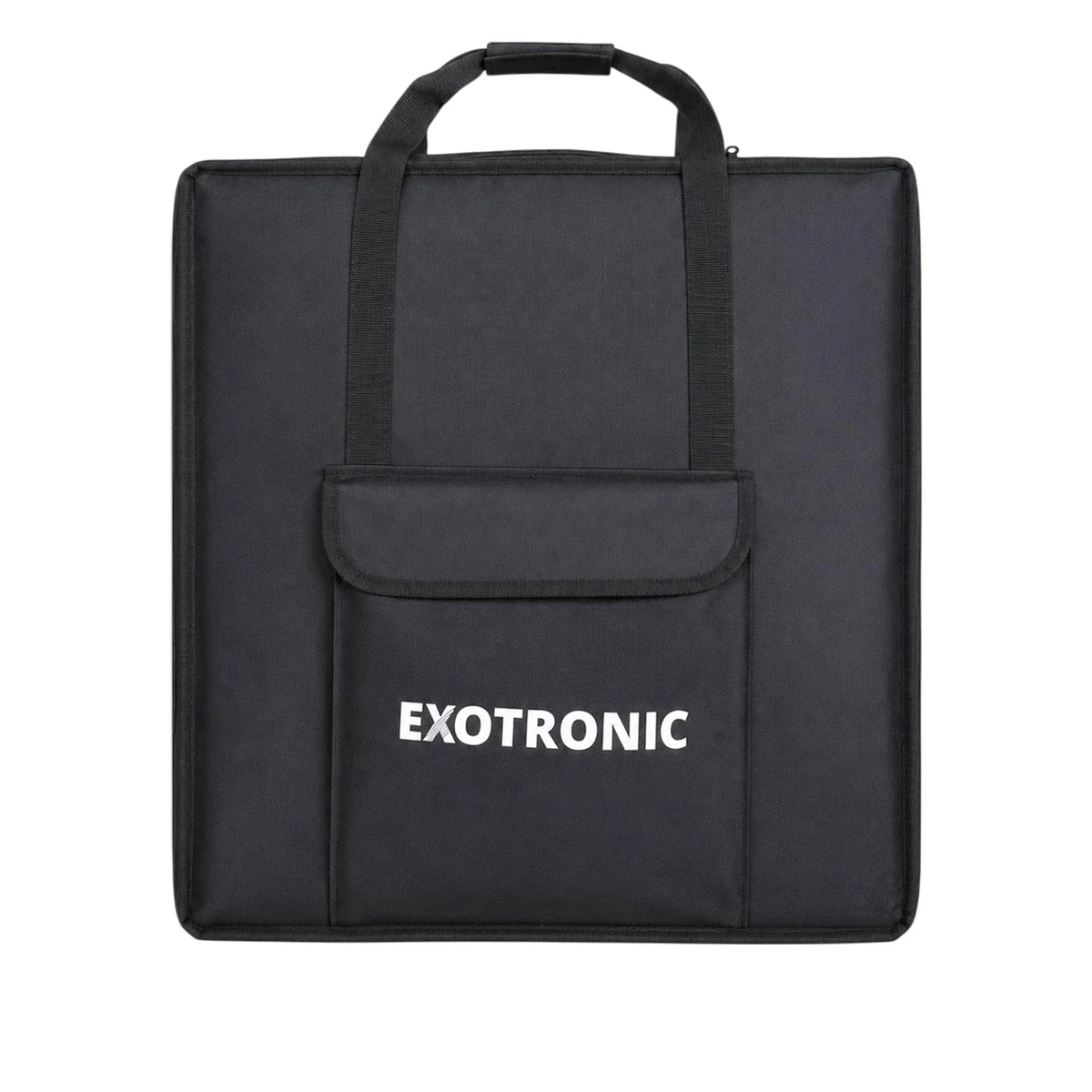

🎒 Padded Canvas Carry Bag
A protective carry bag is included for transport and storage.

🌤️ DUAL-SECTION DESIGN FOR IMPROVED SHADE TOLERANCE

The Exotronic 200W Fusion uses two independently wired 100W solar sections.

This arrangement can help reduce the effect of partial shading compared with a single electrically dependent panel section, making it particularly useful around caravans, camper trailers and campsites where trees, awnings or other objects can cast intermittent shade.

🔌 COMPLETE PORTABLE CONNECTION KIT

🔌 5m Marine-Grade Solar Cable
Includes a 5m length of 4mm² PV1-F tinned-copper marine cable with MC4 to 50A grey Anderson connection.

🔋 Two Anderson Tails
Includes two 50A grey Anderson tails for integration with compatible existing MPPT or PWM solar regulators.

🐊 Fused Alligator Clip Lead
Includes alligator clips to 50A grey Anderson connection with a 30A fuse for compatible applications including starter-battery charging or assisting with waking some lithium battery BMS systems.

🌊 Tinned Copper Cabling
Tinned-copper cable provides improved corrosion resistance for touring, coastal and marine environments.

🚐 IDEAL FOR

• 🚐 Caravans & RVs
• ⛺ Camper trailers
• 🚙 4WD touring & overlanding
• 🏕️ Camping & off-grid travel
• 🔋 Compatible lithium & lead-acid battery systems
• 🚤 Marine & boating applications
• 🏠 Tiny homes & remote off-grid setups
• 🛠️ Remote worksites
• 🚨 Emergency backup power systems

📋 ELECTRICAL SPECIFICATIONS

Model: Exo-FP-TCN-200

Rated Power: 200W

Maximum Power Voltage (Vmp): 21.8V

Maximum Power Current (Imp): 9.18A

Open Circuit Voltage (Voc): 25.3V

Short Circuit Current (Isc): 9.98A

Maximum System Voltage: 1000V DC

Maximum Fuse Rating: 15A

Panel Configuration: Two Independently Wired 100W Sections

Electrical specifications shown are the total output of both folding panel sections.

📐 DIMENSIONS & CONSTRUCTION

Folded Dimensions: 690 × 670 × 40mm

Unfolded Dimensions: 690 × 1340 × 17mm

Front: 3.2mm Tempered Glass

Frame: Black Anodised Aluminium Alloy

Junction Box: IP65 / IP67 as supplied

Connectors: MC4 Compatible

🌡️ TEMPERATURE RATINGS

NMOT: 41°C ±3°C

Temperature Coefficient of Pmax: -0.37%/°C

Temperature Coefficient of Voc: -0.29%/°C

Operating Temperature: -40°C to +85°C

⚠️ SOLAR CONTROLLER NOT INCLUDED

⚠️ This version does not include a solar charge controller.

A compatible solar regulator, MPPT controller or DC-DC charger with a suitable solar input is required when using the panel to charge a battery system.

Always confirm the connected charger's solar input voltage, current and maximum panel capacity before use.

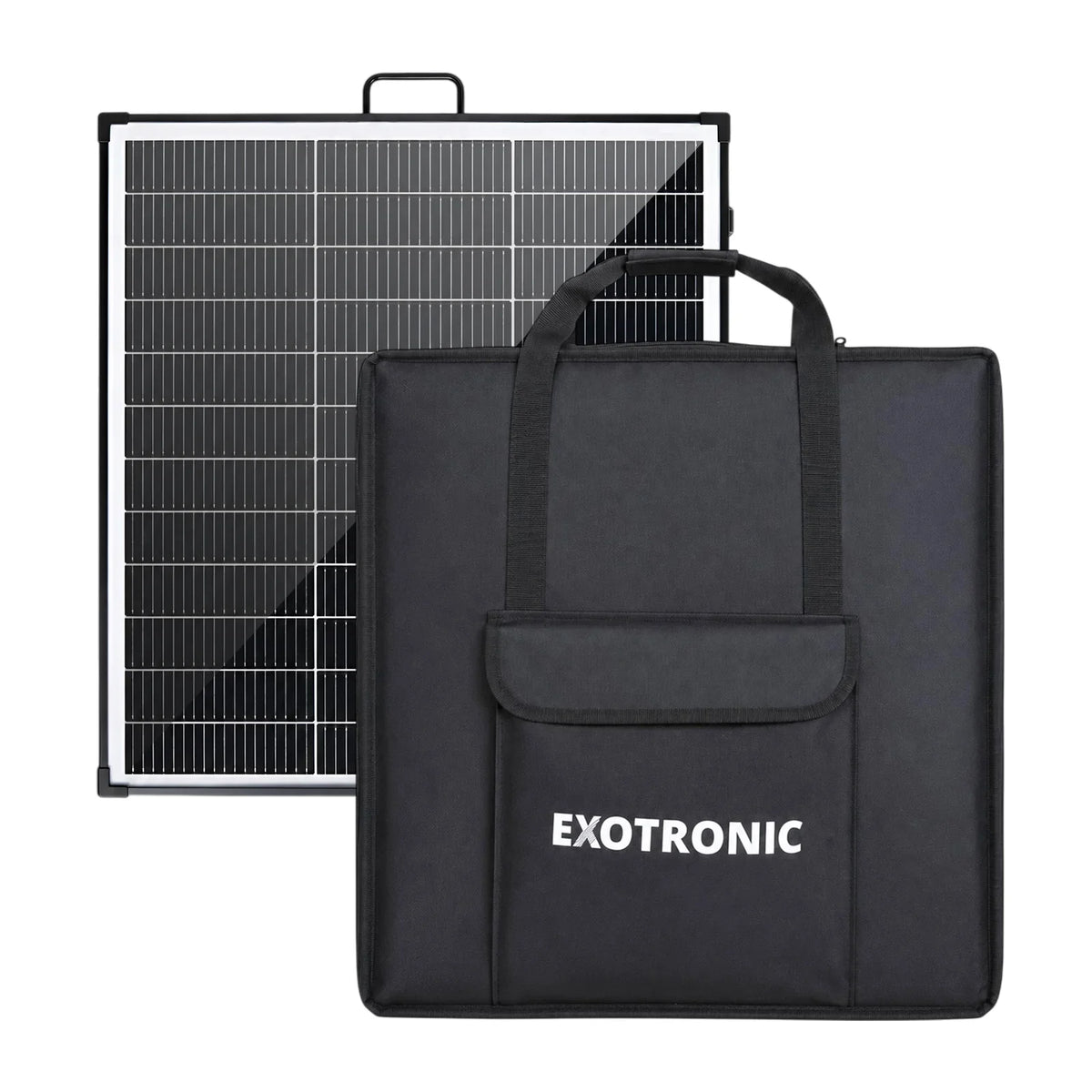

📦 WHAT'S INCLUDED

• ☀️ Exotronic 200W Fusion Portable Folding Solar Panel
• 🎒 Padded canvas carry bag
• 🔌 5m 4mm² PV1-F tinned-copper MC4 to 50A grey Anderson cable
• 🔌 Two 50A grey Anderson tails
• 🐊 Anderson to alligator clip lead with 30A fuse

📦 PRODUCT DETAILS

SKU: Exo-FP-TCN-200

Model Number: Exo-FP-TCN-200

Barcode: 9361784003818

❓ QUICK FAQ

Does this 200W folding panel include a solar controller?

No. This version is supplied without a solar charge controller.

What makes it more shade tolerant?

The panel uses two independently wired 100W sections, helping the unaffected section continue producing power when partial shade falls across the other section.

How big is it when folded?

Folded dimensions are approximately 690 × 670 × 40mm. Fully opened, it measures approximately 690 × 1340 × 17mm.

Does it include the connection leads?

Yes. The supplied kit includes a 5m marine-grade MC4-to-Anderson cable, two Anderson tails and a fused Anderson-to-alligator clip lead.

Can it be connected to a DC-DC charger with solar input?

Yes, provided the charger's solar input accepts the panel's 21.8V Vmp, 25.3V Voc and current output and the manufacturer's installation requirements are followed.

☀️ PREMIUM 200W PORTABLE SOLAR BUILT FOR TOURING

With 25.2% efficient TOPCon cells, two independently wired 100W sections, rugged tempered-glass construction and a comprehensive portable cable kit, the Exotronic Fusion 200W is built for dependable solar charging wherever the road takes you.
