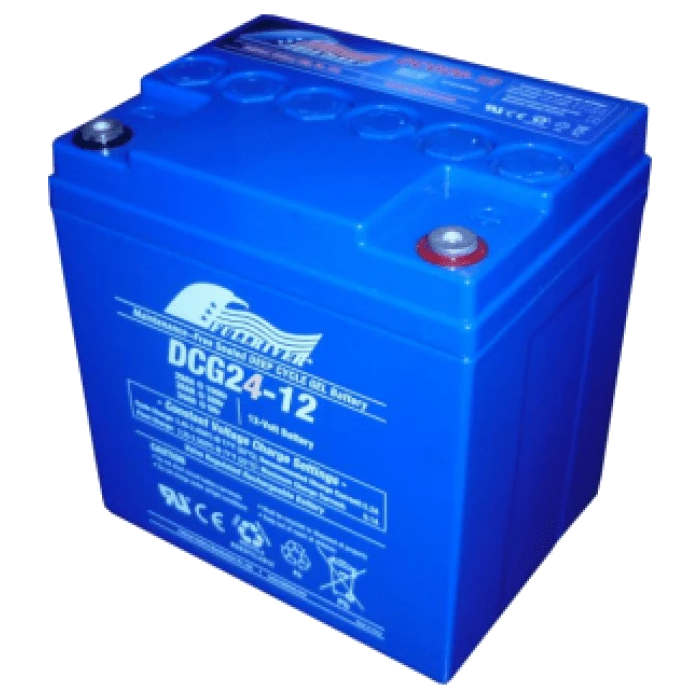

12V 24Ah Deep Cycle GEL Battery (DCG24-12)

🔋 FULLRIVER DCG24-12 DEEP CYCLE GEL BATTERY

12V 24Ah Deep Cycle Gel Battery – M5 Terminals, 32-Minute Reserve Capacity & Long Cycle Life

⚡ Compact, dependable deep cycle power with durable Gel technology and maintenance-free operation.

The Fullriver DCG24-12 is a premium 12V 24Ah Deep Cycle Gel battery engineered for applications requiring reliable repeated discharge and recharge, consistent stored-energy performance and long service life.

Part of Fullriver’s DCG Series, the DCG24-12 combines 99.994% pure virgin lead plates, heavy-duty over-the-partition welds and Fullriver’s proprietary thixotropic gel electrolyte formulation to support dependable cycling performance, vibration resistance and durability.

With sealed maintenance-free construction, 24Ah capacity, a 32-minute reserve capacity at 25A and flexible installation capability, it is a practical choice for compatible mobility, solar, caravan, marine, backup, standby and commercial deep cycle applications.

---

⚡ KEY FEATURES

🔋 12V Deep Cycle Gel Performance
Designed for true deep-cycle applications requiring repeated discharge and recharge operation.

⚡ 24Ah Capacity at 20HR Rate
Provides reliable stored energy for compatible 12V equipment, auxiliary systems and battery banks.

🧪 Advanced Gel Electrolyte Technology
Fullriver’s proprietary thixotropic gel formulation helps minimise electrolyte stratification and supports dependable cycling performance.

💪 99.994% Pure Virgin Lead Plates
High-purity lead plate construction supports durability, consistent performance and long service life.

🔩 Heavy-Duty Internal Weld Construction
Over-the-partition welds help improve structural strength and resistance to shock and vibration.

⏳ Approximately 1300 Cycles at 50% DOD
Designed for extended cycling performance when correctly charged and operated within suitable conditions.

⏱️ 32-Minute Reserve Capacity
Rated for approximately 32 minutes at a 25A load.

🔒 Sealed Recombinant Construction
Provides maintenance-free operation and reduced off-gassing compared with conventional flooded batteries.

🔄 Flexible Installation
Can be installed in multiple compatible orientations, except upside down.

🌡️ Excellent Slow-Discharge Performance
Gel chemistry is particularly well suited to applications involving sustained, lower-rate energy discharge.

🧯 Flame-Resistant ABS Case
Durable ABS plastic housing with a UL94-HB flame-resistance rating.

🔌 M5 Terminal Connections
Provides secure electrical connections for compatible deep cycle installations.

---

🔋 BUILT FOR TRUE DEEP CYCLE USE

The Fullriver DCG24-12 is specifically designed for applications where a battery is regularly discharged and recharged during normal operation.

Its Gel construction is suited to systems where dependable stored energy, sustained discharge performance and long cycle life are more important than high-current engine cranking.

This makes the DCG24-12 a strong choice for compatible mobility equipment, renewable energy systems, auxiliary power installations, backup systems and commercial equipment.

---

🧪 ADVANCED THIXOTROPIC GEL ELECTROLYTE

The DCG24-12 uses Fullriver’s proprietary gel electrolyte formulation rather than a conventional free-flowing liquid electrolyte.

This thixotropic Gel technology helps minimise electrolyte stratification and supports stable performance during repeated cycling.

Gel chemistry is particularly suited to many slow-discharge applications where energy is delivered over an extended period.

---

💪 HEAVY-DUTY PURE LEAD CONSTRUCTION

The DCG24-12 uses 99.994% pure virgin lead plates combined with robust internal construction.

Thick plate design and heavy-duty over-the-partition welds help improve resistance to shock and vibration while supporting dependable deep cycle performance.

This construction makes the battery suitable for demanding mobile and equipment applications where durability is important.

---

⏳ DESIGNED FOR LONG CYCLE LIFE

The Fullriver DCG Series is engineered to provide extended service life in suitable deep cycle applications.

The supplied performance information indicates approximately 1300 cycles at 50% depth of discharge when the battery is correctly charged and operated under suitable conditions.

Actual battery life will vary depending on depth of discharge, charging method, operating temperature, load profile and overall system conditions.

---

🔒 SEALED & MAINTENANCE-FREE

The DCG24-12 uses sealed recombinant construction, eliminating the need for routine watering or electrolyte top-ups.

This provides cleaner and lower-maintenance operation than a conventional flooded lead-acid battery.

Its sealed design also helps reduce off-gassing during normal operation, although all installations should still follow applicable battery ventilation and equipment requirements.

---

🔄 FLEXIBLE INSTALLATION OPTIONS

The sealed Gel construction allows the DCG24-12 to be installed in multiple compatible orientations.

The battery should not be installed upside down.

Always ensure the battery is securely restrained and installed according to the requirements of the equipment, vehicle or battery enclosure.

---

⏱️ RESERVE CAPACITY

The DCG24-12 provides useful reserve-energy performance across different load levels.

• Reserve capacity at 25A: 32 minutes
• Reserve capacity at 75A: 5 minutes

These figures provide an additional indication of the battery’s stored-energy capability alongside its amp-hour ratings.

---

🔧 SUITABLE APPLICATIONS

• Mobility equipment
• Electric mobility applications
• Solar and renewable energy systems
• Caravan and RV auxiliary power
• Marine auxiliary systems
• Backup and standby power systems
• Floor cleaning machines
• Compact deep cycle battery banks
• Commercial equipment
• Personal deep-cycle applications
• Compatible 12V auxiliary power systems

---

📐 PRODUCT SPECIFICATIONS

Brand: Fullriver

Model: DCG24-12

Series: DCG Series

Battery type: Deep Cycle Gel

Nominal voltage: 12V

Group size: N/A

Capacity at 1HR rate: 15Ah

Capacity at 5HR rate: 22Ah

Capacity at 20HR rate: 24Ah

Capacity at 100HR rate: 27Ah

Reserve capacity at 25A: 32 minutes

Reserve capacity at 75A: 5 minutes

Internal resistance: 10.00mΩ

Lead purity: 99.994% pure virgin lead

Electrolyte type: Thixotropic Gel

Case material: ABS plastic

Flame-resistance rating: UL94-HB

Terminal type: M5

Recommended terminal torque: 20–30 in-lbs

Weight: Approximately 9.0kg

Cycle performance: Approximately 1300 cycles at 50% depth of discharge under suitable operating conditions

---

📏 DIMENSIONS

Length: 166mm

Width: 126mm

Height: 175mm

Height including terminals: 175mm

---

📦 WHAT’S INCLUDED?

• 1 × Fullriver DCG24-12 12V 24Ah Deep Cycle Gel Battery

---

⚠️ FITMENT & COMPATIBILITY INFORMATION

Please confirm the electrical, physical and charging requirements of your equipment before purchasing.

Check the required:

• Battery voltage – 12V
• Battery chemistry – Gel
• Battery capacity
• Physical dimensions
• Terminal type – M5
• Terminal orientation and polarity
• Terminal torque requirements
• Charging profile
• Available installation space
• Deep cycle application requirements

⚠️ IMPORTANT: Gel batteries require a compatible charging profile. Do not assume that a charger configured for another battery chemistry is suitable. Confirm charger compatibility before installation.

⚠️ IMPORTANT: Do not install the battery upside down. Always securely restrain the battery and follow the equipment manufacturer’s installation requirements.

---

❓ FREQUENTLY ASKED QUESTIONS

What type of battery is the Fullriver DCG24-12?

The DCG24-12 is a sealed 12V Deep Cycle Gel battery from Fullriver’s DCG Series.

What is the battery capacity?

The battery is rated at 24Ah at the 20-hour discharge rate.

What are the other capacity ratings?

The supplied specifications list 15Ah at the 1-hour rate, 22Ah at the 5-hour rate, 24Ah at the 20-hour rate and 27Ah at the 100-hour rate.

Is the DCG24-12 a true deep cycle battery?

Yes. It is designed specifically for repeated deep cycle discharge and recharge applications.

What is the difference between Gel and AGM?

Both are sealed lead-acid technologies, but they retain electrolyte differently. AGM batteries absorb electrolyte into glass mat separators, while Gel batteries use a gelled electrolyte. Gel batteries require a compatible charging profile and are particularly suited to many sustained-discharge and repeated cycling applications.

What is the reserve capacity?

The DCG24-12 provides approximately 32 minutes of reserve capacity at a 25A load and approximately 5 minutes at a 75A load.

How many cycles can the DCG24-12 provide?

The supplied performance information indicates approximately 1300 cycles at 50% depth of discharge under suitable charging and operating conditions. Actual service life will vary with usage and operating conditions.

Does the battery require maintenance?

No routine watering or electrolyte top-ups are required because the DCG24-12 uses sealed Gel construction.

Can the battery be mounted on its side?

The sealed design allows installation in multiple compatible orientations, but the battery should not be installed upside down. Always follow the requirements of the equipment and battery enclosure.

Is the DCG24-12 suitable for solar applications?

Yes. It may be suitable for compatible solar and renewable-energy systems designed around a 12V Gel battery with an appropriate charging profile.

Can it be used in a caravan or RV?

Yes, where the electrical system requires a compatible 12V deep cycle Gel battery with matching capacity, dimensions, terminals and charging requirements.

Is the battery suitable for marine auxiliary power?

It may be suitable for compatible marine auxiliary applications where its voltage, capacity, dimensions, terminals and charging requirements match the electrical system.

Can the DCG24-12 be used for mobility equipment?

Yes, where the equipment requires a compatible 12V 24Ah Gel battery with M5 terminals and matching physical dimensions.

Can the DCG24-12 be used for engine starting?

The DCG24-12 is designed as a deep cycle Gel battery. No dedicated CCA rating has been supplied, so it should not be selected as an engine-starting battery unless the equipment manufacturer specifically confirms suitability.

What terminals does the battery use?

The DCG24-12 uses M5 terminals with a recommended terminal torque of 20–30 in-lbs.

What are the battery dimensions?

The battery measures approximately 166mm long, 126mm wide and 175mm high including the terminals.

How much does the battery weigh?

The DCG24-12 weighs approximately 9.0kg.

What is the internal resistance?

The supplied internal resistance specification is approximately 10.00mΩ.

Is the battery case flame resistant?

Yes. The ABS plastic case has a supplied UL94-HB flame-resistance rating.

Can I use a standard AGM charger with this battery?

Only if the charger manufacturer confirms that its charging profile is suitable for Gel batteries. Gel and AGM batteries can require different charging settings, so compatibility should always be confirmed before use.

How do I know if the DCG24-12 will replace my existing battery?

Compare the required voltage, battery chemistry, capacity, physical dimensions, M5 terminal configuration and charging profile with your existing battery and equipment specifications before purchase.

---

🔋 LONG-LIFE DEEP CYCLE GEL POWER IN A COMPACT PACKAGE

Choose the Fullriver DCG24-12 when you need dependable repeated cycling, maintenance-free operation and durable Gel battery technology from a compact 12V battery.

With 24Ah capacity, approximately 1300 cycles at 50% depth of discharge, 32-minute reserve capacity, pure virgin lead construction and a sealed Gel electrolyte system, the DCG24-12 is built for compatible mobility, solar, caravan, marine, backup and equipment applications.

Power your 12V system with dependable Fullriver Deep Cycle Gel performance.
