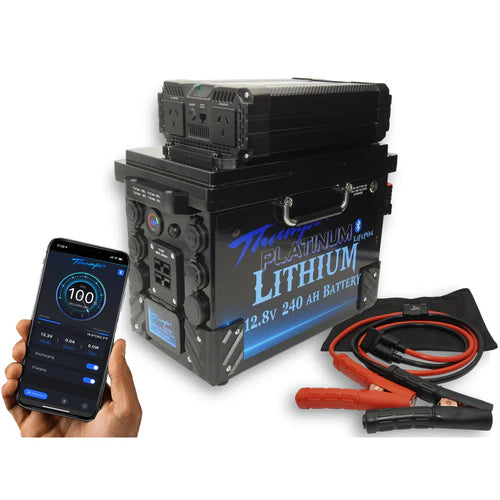

Lithium 240Ah 1500W Inverter DC-DC Getaway Battery Hub
Lithium 240Ah 1500W Inverter DC-DC Getaway Battery Hub
SKU:TBH240-1500-RD25
Couldn't load pickup availability

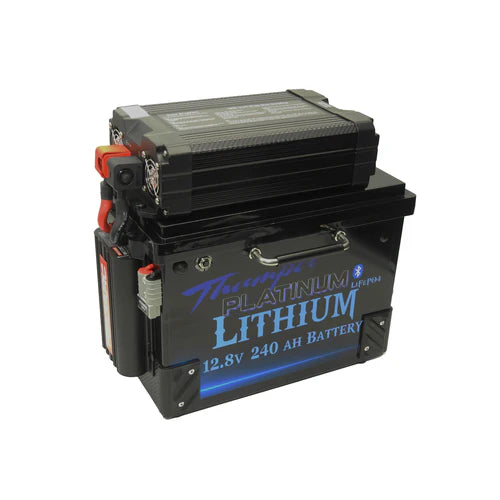

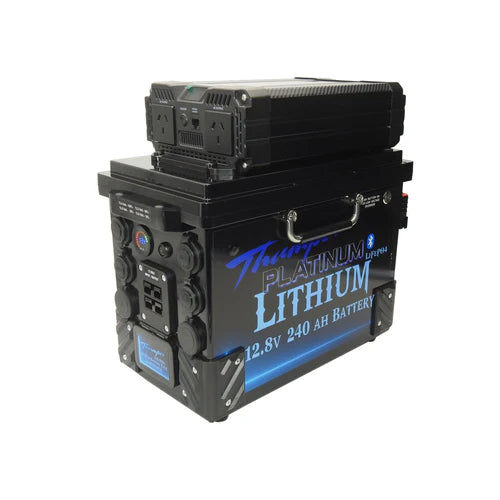

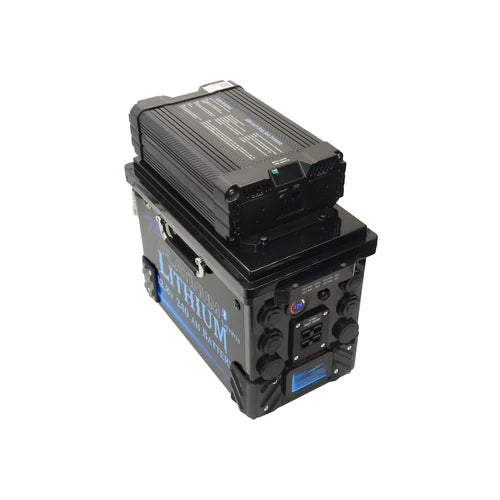

🔋 Thumper Lithium 240Ah 1500W Inverter 25A DC-DC Getaway Battery Hub
All-in-one 240Ah LiFePO4 battery hub with integrated 1500W pure sine wave inverter, Redarc DC-DC charging, MPPT solar input, 240V charging, jump start capability, Bluetooth monitoring, and heavy-duty mounting tray.
The Thumper Lithium Battery Hub Getaway 240Ah with Integrated 1500W Pure Sine Wave Inverter is a complete off-grid power system designed for serious touring, camping, caravanning, overlanding, remote work, and mobile power applications.
Built around a premium 240Ah LiFePO4 lithium battery, this system delivers 3,072Wh / 3kWh of usable energy storage in a compact, serviceable, Australian-designed and manufactured unit.
With an integrated 1500W pure sine wave inverter, the Hub Getaway provides clean and stable 240V power for sensitive electronics and household-style appliances, while the integrated Redarc DC-DC charger, MPPT solar regulator, and included 240V lithium charger provide flexible charging from vehicle, solar, or mains power.
✅ Key Benefits
🔋 240Ah LiFePO4 Lithium Battery
Provides high-capacity usable lithium storage for extended off-grid power.
⚡ 3,072Wh / 3kWh Energy Capacity
Stores enough energy for serious touring, camping, caravan, and remote work applications.
🔌 Integrated 1500W Pure Sine Wave Inverter
Provides clean 240V power for compatible appliances, electronics, chargers, tools, and equipment.
🚗 Redarc DC-DC Charging
Integrated Redarc DC-DC charging supports vehicle alternator charging while travelling.
☀️ MPPT Solar Regulator
Built-in MPPT solar regulation supports connection of suitable unregulated solar panels.
🔋 Dedicated 240V Lithium Charger Included
Includes a dedicated 240V 20A lithium charger for mains charging.
🔧 Complete Vehicle Wiring Loom Included
Supplied with a complete 6B&S vehicle wiring loom for vehicle charging setup.
🚀 Jump Start Capability
Built-in jump start capability with surge-protected leads and reverse polarity protection.
⚡ 200A Continuous Discharge Capability
Supports up to 200A / 2400W of 12V load capacity.
📱 Bluetooth Monitoring & System Management
Monitor battery condition, charge state, current flow, runtime, system alerts, and more via the Thumper Bluetooth app.
🔌 Multiple 12V & 240V Outputs
Includes Anderson connectors, cigarette sockets, Engel socket, USB ports, USB-C ports, voltmeter, and 240V inverter outlets.
🧰 Heavy-Duty Mounting Tray Included
Supplied with secure mounting tray and strap for stable installation.
🇦🇺 Australian Designed & Manufactured
Built for Australian touring conditions and harsh environments.
🛠️ Fully Serviceable Construction
Designed for long-term reliability, support, and serviceability.
🚐 Suitable Applications
🚐 Caravans and camper trailers
🚙 4WD touring setups
🏕️ Remote camping systems
🛻 Overlanding vehicles
🏗️ Remote work vehicles
🛥️ Marine auxiliary power
☀️ Solar power systems
⚡ Inverter power systems
🔋 Independent dual battery systems
🧰 Power tools and worksite equipment
📺 TVs, laptops, cameras, and sensitive electronics
😴 CPAP machines and medical travel equipment
🔌 240V Power from the Integrated Inverter
Unlike traditional battery boxes that only provide 12V power, the Hub Getaway includes a 1500W pure sine wave inverter for clean 240V power.
| Inverter Feature | Details |
|---|---|
| Inverter Type | Pure sine wave |
| Integrated Inverter Output | 1500W |
| 240V Outlets | 2 |
| Output Use | Compatible appliances, electronics, chargers, tools, and equipment |
| Power Quality | Clean 240V output suitable for sensitive electronics |
Suitable appliances may include laptops, cameras, battery chargers, TVs, CPAP machines, selected coffee machines, compatible power tools, lighting systems, and entertainment equipment.
Always confirm appliance wattage, startup surge, and inverter suitability before use.
🔋 Built for Extended Off-Grid Adventures
With over 3kWh of stored energy, the Hub Getaway is built for extended trips and off-grid independence.
Under typical operating conditions, the system is capable of running a 60L fridge for more than seven days without additional charging.
Charging flexibility is provided by:
🚗 Vehicle charging through the Redarc DC charger
☀️ Solar charging via MPPT solar regulator
🔌 240V mains charging via included lithium charger
This makes it suitable for remote touring, caravan parks, job sites, campsites, and long-term off-grid setups.

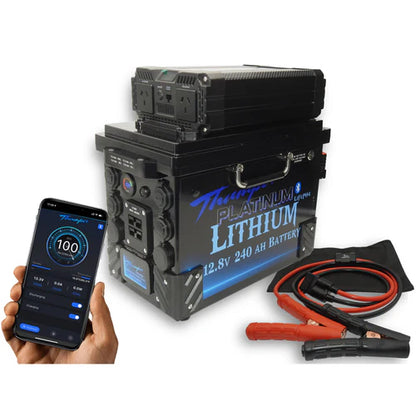

📱 Bluetooth Monitoring & Control
The Thumper Lithium Battery Hub includes Bluetooth app monitoring through the Thumper Batteries App.
| Bluetooth App Feature | Details |
|---|---|
| Battery Capacity | View available battery capacity |
| Battery Voltage | Monitor live battery voltage |
| Percentage Remaining | View remaining battery level from 0–100% |
| Charging Current | Monitor charge input current |
| Discharge Current | Monitor output load current |
| Battery Output Disconnect | Remotely disconnect discharge loads |
| Battery Charge Disconnect | Remotely disconnect charging inputs |
| Auto Cell Calibration | Supports automatic cell calibration |
| Auto Cell Protection | Helps protect internal cells |
| Estimated Time Remaining | View estimated runtime |
| Estimated Charging Time | View estimated charge time |
| Ah Capacity Remaining | Monitor remaining amp hour capacity |
| Total Cell Balancing | View cell balancing data |
| High Cell Voltage | Monitor high cell voltage condition |
| Low Cell Voltage | Monitor low cell voltage condition |
| Cell Voltage Difference | View cell voltage variation |
| Dual Battery Sensor Monitoring | Supports dual battery sensor monitoring |
| Parallel Link Reprogramming | Reprogram Ah capacity when expanding battery storage, passcode required |
Some advanced app features may require a passcode.
🔄 Bluetooth Isolation & Storage Control
The Hub includes a battery isolation function through the Bluetooth app.
| Control | Function |
|---|---|
| Discharge Switch | Turns off all discharge loads from the battery |
| Storage Use | Prevents sockets and outputs from drawing power while stored |
| Output Isolation | No power available at connection points when discharge is OFF |
| Reactivation | Turning discharge ON restores Battery Hub output power |
This makes storage simple and helps keep the Battery Hub charged and ready for the next trip.
It is recommended to charge the Battery Hub using the supplied 240V charger before each use.

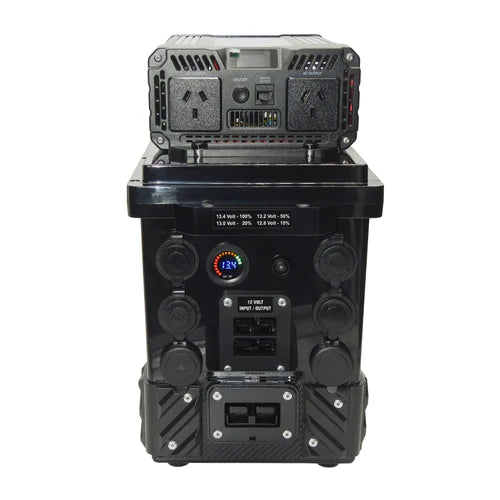

🔌 Hub Connections
| Connection | Quantity / Details |
|---|---|
| 50A Anderson Connector — Input / Output | 2 |
| 120A Anderson Connector — Input / Output / Jump Start | 1 |
| 50A Anderson — Unregulated Solar Input | 1 |
| 50A Anderson — Alternator Input | 1 |
| Marine Grade Cigarette Socket | 3 |
| Engel Socket | 1, 2-prong design |
| USB-A Ports | 2 |
| USB-C Ports | 4 |
| Digital LED Voltmeter | 1 |
| Bluetooth App Monitoring | Yes, free download |
| BMS Reset Switch | Yes |
| 240V Outlets via Inverter | 2 |
| Low Voltage Override Switch | 1, for DC charger use in low-voltage vehicles |

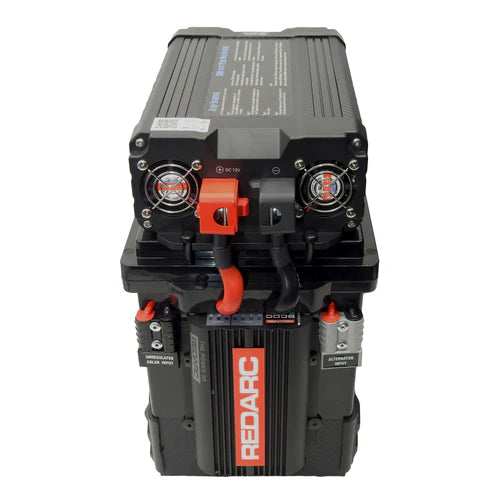

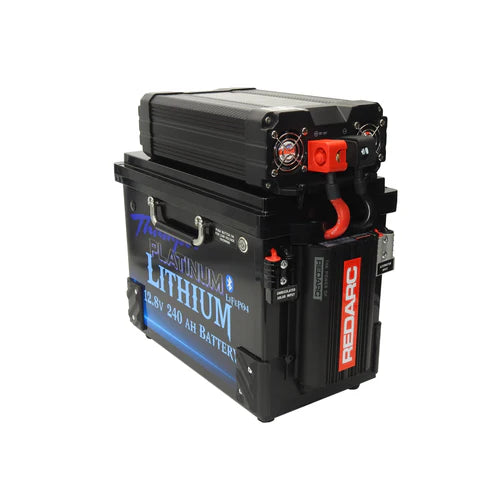

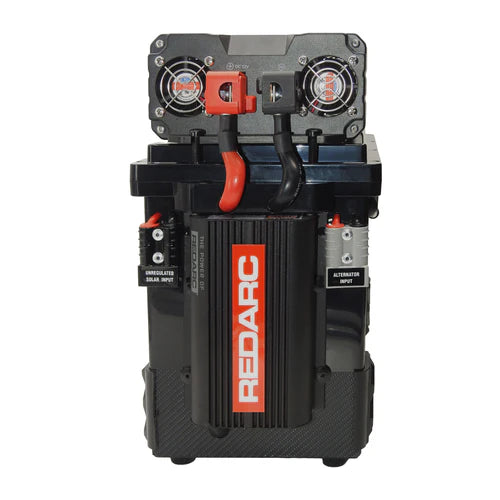

🚗 Redarc DC-DC Charger & Solar Input
The Battery Hub includes a Redarc DC-DC charger and MPPT solar regulator for charging from vehicle alternator or unregulated solar input.
| DC Charger Feature | Details |
|---|---|
| DC Charger Part No. | BCDC1225D |
| DC Charger Brand | Redarc |
| DC Charger Warranty | 2 years from date of purchase |
| Alternator Input Voltage | 9–32V |
| Solar Input Voltage | 9–32V, unregulated only |
| Solar Regulator | Yes, MPPT |
| Solar Regulator Current | 25A |
| Solar Panel Limit | Up to 240W unregulated solar panel input |
Alternator Input
The Alternator Input Anderson connects to the vehicle charging system and allows the Redarc DC charger to provide regulated charging to the Thumper Battery Hub.
Unregulated Solar Input
The Unregulated Solar Input Anderson allows connection of a suitable unregulated solar panel. The solar panel must not have a regulator fitted.
⚡ Low Voltage Override Switch
The Battery Hub includes a low voltage override switch for use with the DC charger in low-voltage vehicle charging systems.
| Switch Position | Function |
|---|---|
| ON | Immediately engages the DC charger as ignition activated |
| OFF | Allows the DC charger to operate normally as voltage sensitive |
When the switch is ON, the DC charger will no longer isolate from the starter battery by voltage alone. The supplied vehicle wiring loom should be installed so the isolator in the loom can isolate the main battery from the Battery Hub.
🚀 Jump Start Capability
The Battery Hub includes built-in jump start capability for suitable vehicles.
| Jump Start Feature | Details |
|---|---|
| Jump Start Capability | Yes |
| Jump Leads Included | Yes, 1.5m surge-protected leads |
| Reverse Polarity Protection | Yes |
| Maximum Starting Current | 900A |
| Maximum Peak Discharge Current | 4000A peak |
| Ideal Jump Start Capacity | Petrol engines up to 6.0L / diesel engines up to 4.5L |
📏 Technical Specifications
| Specification | Details |
|---|---|
| Product | Thumper Lithium 240Ah 1500W Inverter 25A DC-DC Getaway Battery Hub |
| Part No. | TBH240-1500-RD25 |
| Battery Capacity | 240Ah usable capacity |
| Energy Capacity | 3,072Wh / 3kWh |
| BMS Capacity | 200A / 2400W |
| Cell Type / Chemistry | Prismatic / LiFePO4 |
| Case Material | ABS |
| BMS Built In | Yes |
| Integrated Inverter | 1500W pure sine wave |
| DC Charger | Redarc BCDC1225D |
| MPPT Solar Regulator | 25A |
| 240V Charger Included | 20A lithium charger |
| Vehicle Wiring Loom | Complete 6B&S loom included |
| Battery Warranty | 5 years |
| Redarc DC Charger Warranty | 2 years |
📐 Dimensions & Weight
| Measurement | Details |
|---|---|
| Length — Total | 400mm including Redarc 25A DC ±3mm |
| Length — Base | 360mm including corners |
| Width — Total | 215mm including handles |
| Width — Base | 200mm including corners |
| Height — Total | 365mm ±2mm including inverter |
| Weight | 24.85kg |
🌡️ Operating Temperature Range
| Operating Condition | Rating |
|---|---|
| BMS High Temperature Cut-Out | 80°C |
| BMS Reconnect Temperature | 50°C |
| Discharge Temperature | -23°C to 65°C |
| Charge Temperature | -3°C to 65°C |
| Storage Temperature | -20°C to 45°C |
🔌 Charging Specifications
| Charging Specification | Details |
|---|---|
| Recommended Charge Current | 10A – 100A |
| Maximum Charge Current | 200A |
| Recommended Charge Voltage | 14.2V – 14.6V ±0.20V |
| Maximum Charge Voltage | 14.8V ±0.20V |
| 240V Charging | Included 240V 20A lithium charger |
| Vehicle Charging | Redarc DC-DC charger |
| Solar Charging | MPPT solar regulator, unregulated panel input |
⚡ Discharging Specifications
| Discharging Specification | Details |
|---|---|
| Maximum Continuous Discharge Current | 200A / 2400W |
| Recommended Discharge Voltage | 10.8V ±0.20V |
| Maximum Discharge Voltage | 8.8V ±0.20V |
| Charge Current — 0°C to -10°C | <0.1C |
| Charge Current — -20°C to -10°C | <0.5C |
| Round Trip Efficiency | >99.5% |
| Self Discharge Rate | ≤3% per month |
🧰 Vehicle Charging Loom Contents
| Included Loom Component | Quantity / Details |
|---|---|
| Relay Mount | Fitted with relay, MIDI fuse holder, and MIDI fuse |
| Twin Core Automotive Cable | 6m length, 6mm twin core |
| Anderson Rear Box | 1, optional to fit |
| Anderson to Anderson Cable | 1m connecting cable |
| Small Zip Ties | 2 x packs of 5 |
