ANU1106 2-in-1 UHF CB Antenna | 3dBi / 6.5dBi

📡 ORICOM ANU1106 2-IN-1 ALL-TERRAIN UHF CB ANTENNA – 3dBi / 6.5dBi

Switch Between 3dBi & 6.5dBi to Suit Changing Terrain

The Oricom ANU1106 is a versatile 2-in-1 UHF CB antenna system designed for 4WDs, touring vehicles and users who regularly travel through changing terrain.

Use the compact 3dBi configuration for hilly and undulating country, then install the supplied fibreglass extension whip to convert the antenna to 6.5dBi for flatter, more open terrain.

⚡ KEY FEATURES

🔄 2-in-1 3dBi / 6.5dBi Design
One antenna system gives you two gain configurations to suit different travelling conditions.

⛰️ 3dBi Short Configuration

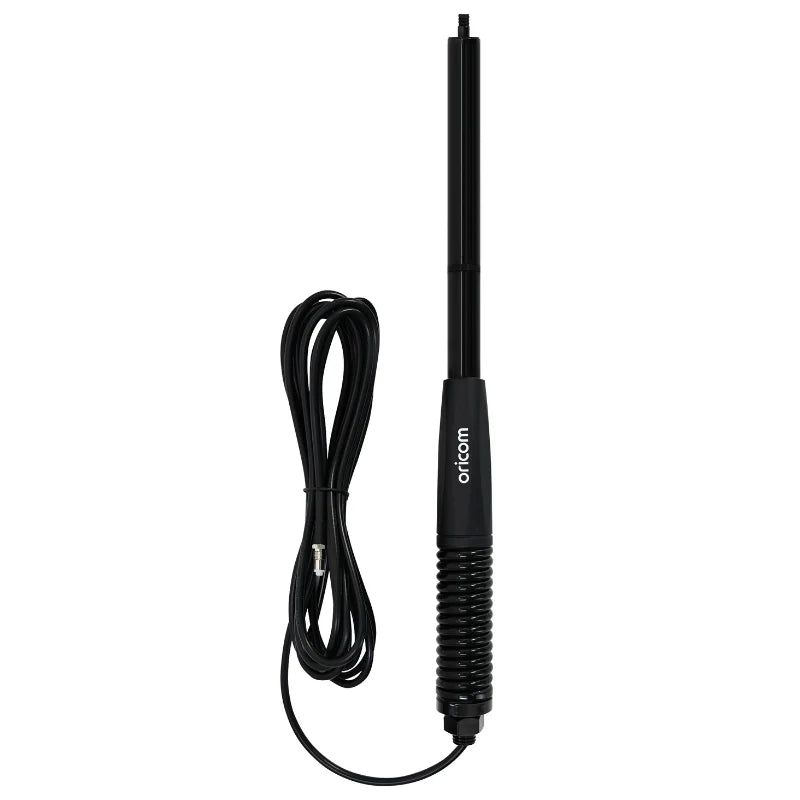

The 440mm antenna configuration is well suited to hilly, mountainous and undulating terrain.

🏜️ 6.5dBi High-Gain Configuration

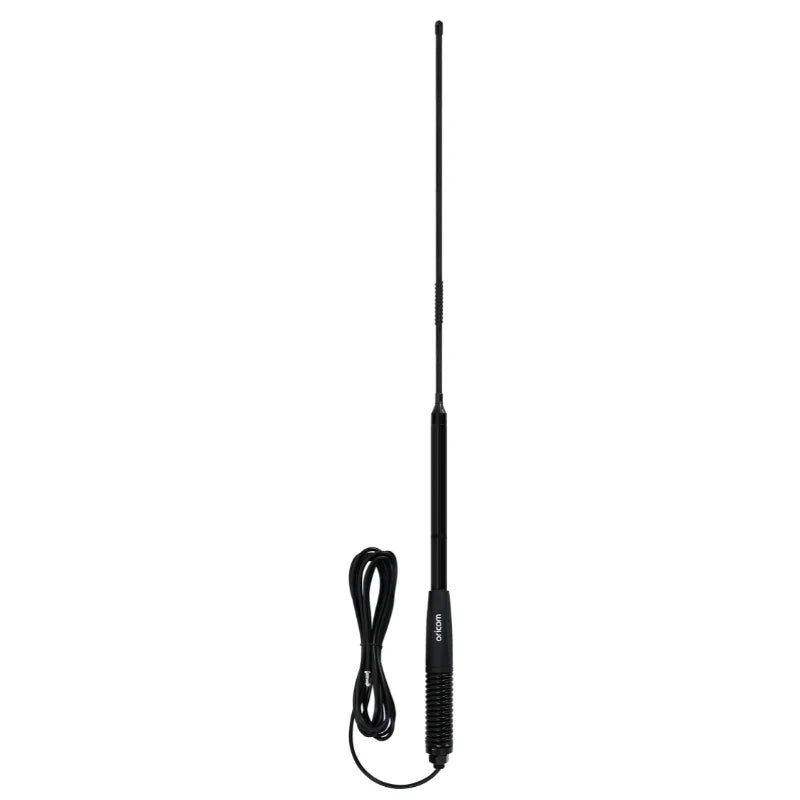

Install the supplied 600mm fibreglass extension whip to convert the antenna to the higher-gain 6.5dBi setup.

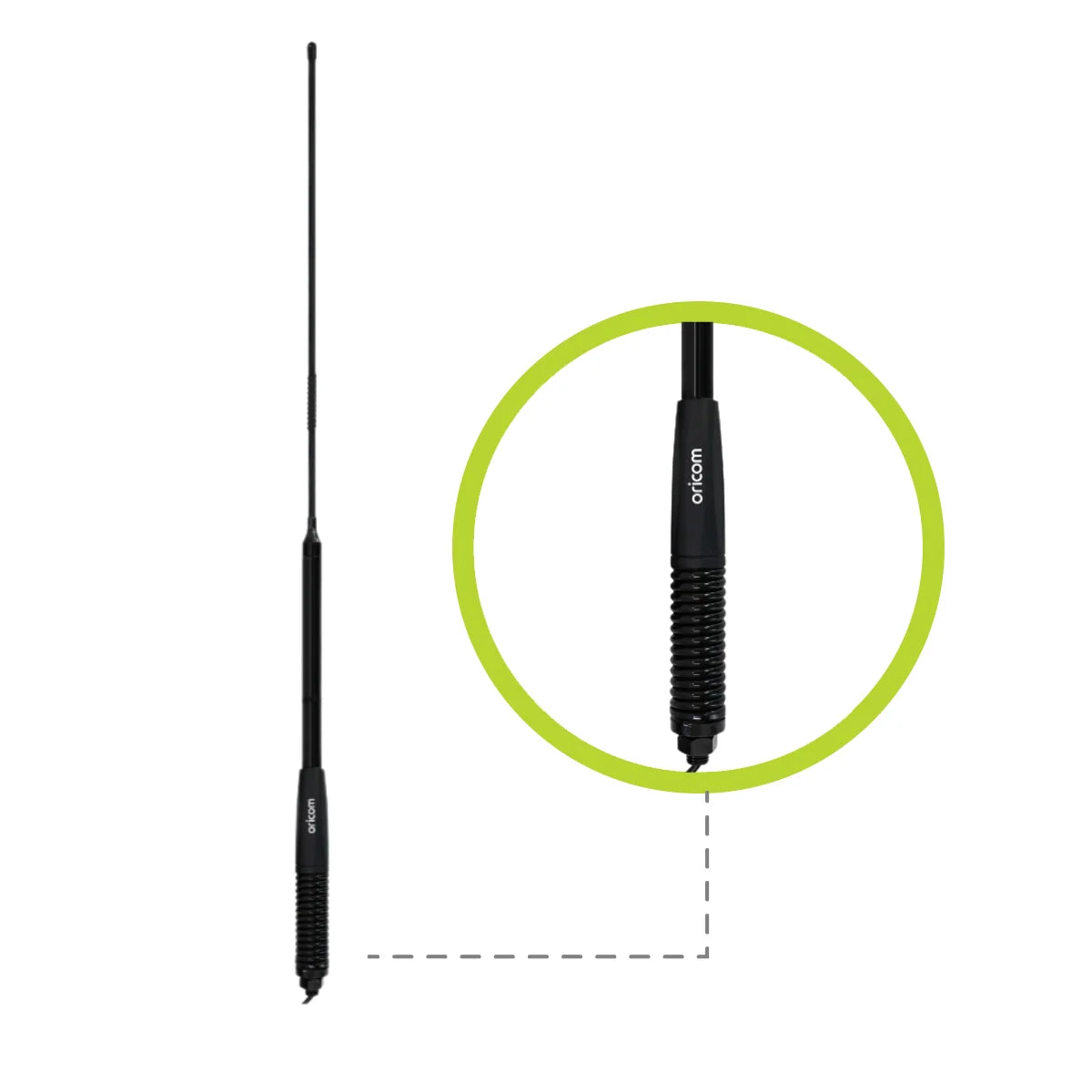

🛡️ Heavy-Duty Parallel Spring Base
Designed for demanding 4WD, touring and vehicle installations.

📡 Elevated Feed Design
The antenna incorporates an elevated feed as part of the complete assembly.

🔌 4.5m Low-Loss Coaxial Cable
Supplied with 4.5 metres of low-loss coaxial cable for vehicle installation.

🔧 FME Connector & PL259 Adaptor
Pre-terminated FME connection makes cable routing easier, with a PL259 adaptor supplied for final connection.

🛡️ 3 Year Warranty
Backed by Oricom's three-year warranty.

📋 TECHNICAL SPECIFICATIONS

Model: ANU1106

Type: 2-in-1 All-Terrain UHF CB Antenna

Low-Gain Configuration: 3dBi

3dBi Antenna Length: 440mm including spring base

High-Gain Configuration: 6.5dBi

6.5dBi Antenna Length: 1030mm as specified

Extension Whip Length: 600mm

Extension Whip Construction: Fibreglass

Spring Base: Heavy-Duty Large Parallel Spring

Feed Type: Elevated Feed

Coaxial Cable: 4.5m Low-Loss

Connector: Pre-Terminated FME

Adaptor: PL259 Included

Warranty: 3 Years

⚠️ Antenna gain does not guarantee a specific communication range. Actual performance depends on terrain, antenna position, installation quality, surrounding obstacles and radio conditions.

🏕️ WHICH CONFIGURATION SHOULD I USE?

⛰️ 3dBi – Hills & Undulating Terrain
Use the shorter configuration where terrain changes frequently and a broader vertical radiation pattern can be beneficial.

🏜️ 6.5dBi – Flat & Open Country
Fit the extension whip for flatter, more open terrain where the higher-gain configuration may provide an advantage.

❓ QUICK FAQ

Do I need two separate antennas?

No. The ANU1106 converts between 3dBi and 6.5dBi by fitting or removing the supplied fibreglass extension whip.

Does it include the spring base?

Yes. The heavy-duty parallel spring base with elevated feed is included.

Is the antenna cable included?

Yes. The ANU1106 includes 4.5m of low-loss coaxial cable with a pre-terminated FME connector and PL259 adaptor.

📡 ONE ANTENNA. TWO GAIN OPTIONS. READY FOR CHANGING TERRAIN.

The Oricom ANU1106 gives touring and 4WD users the flexibility to switch between compact 3dBi and high-gain 6.5dBi configurations without replacing the complete antenna system.
