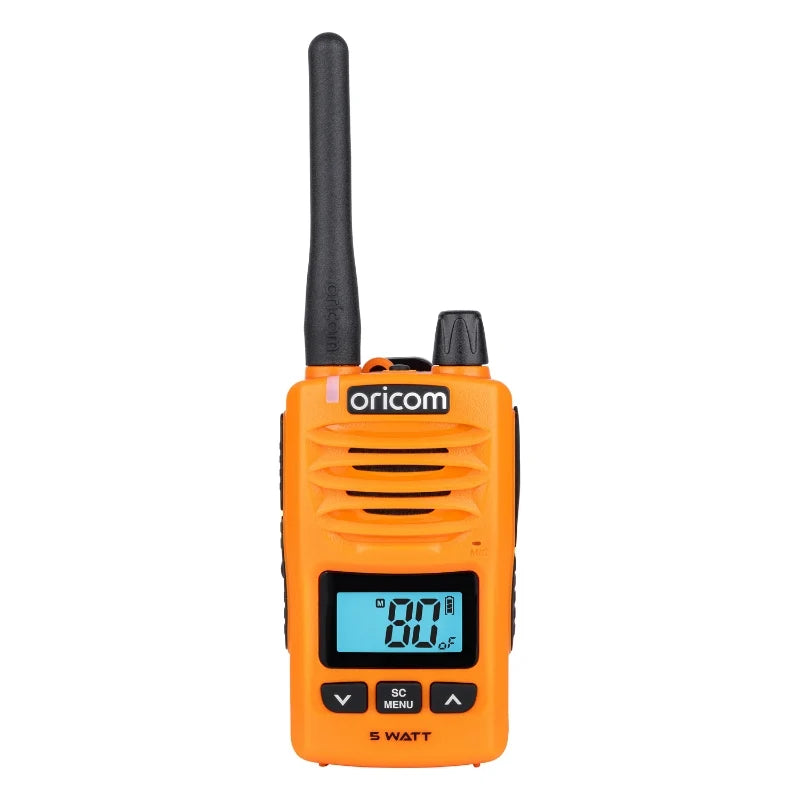

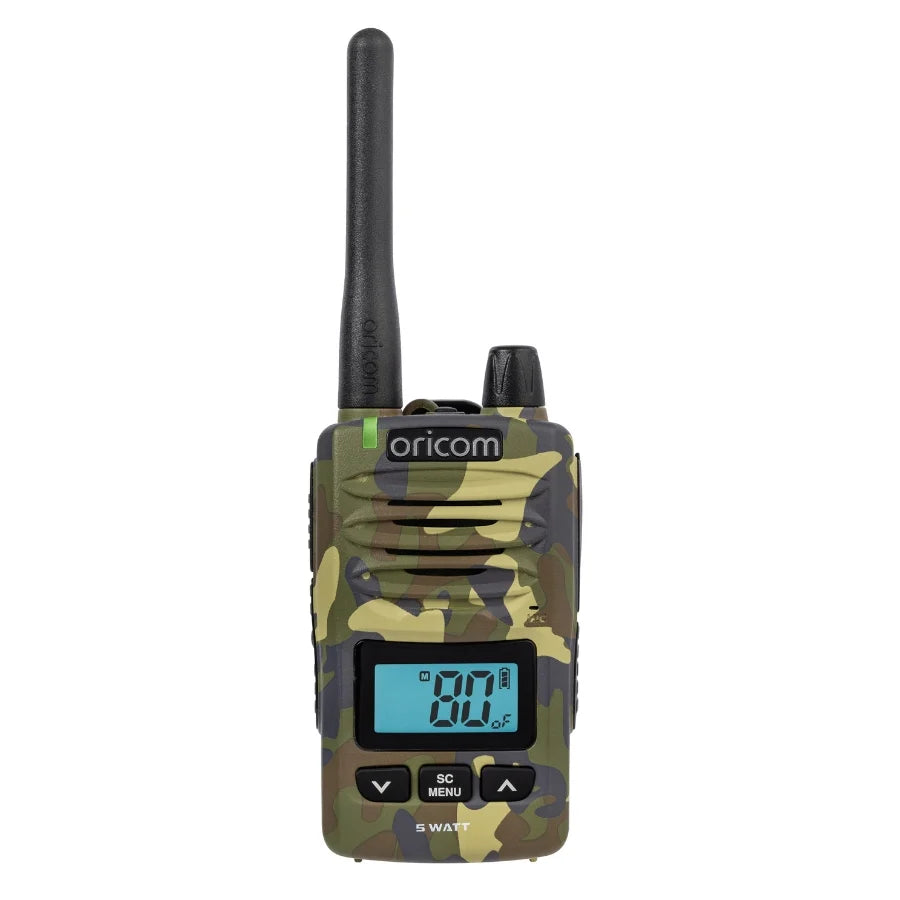

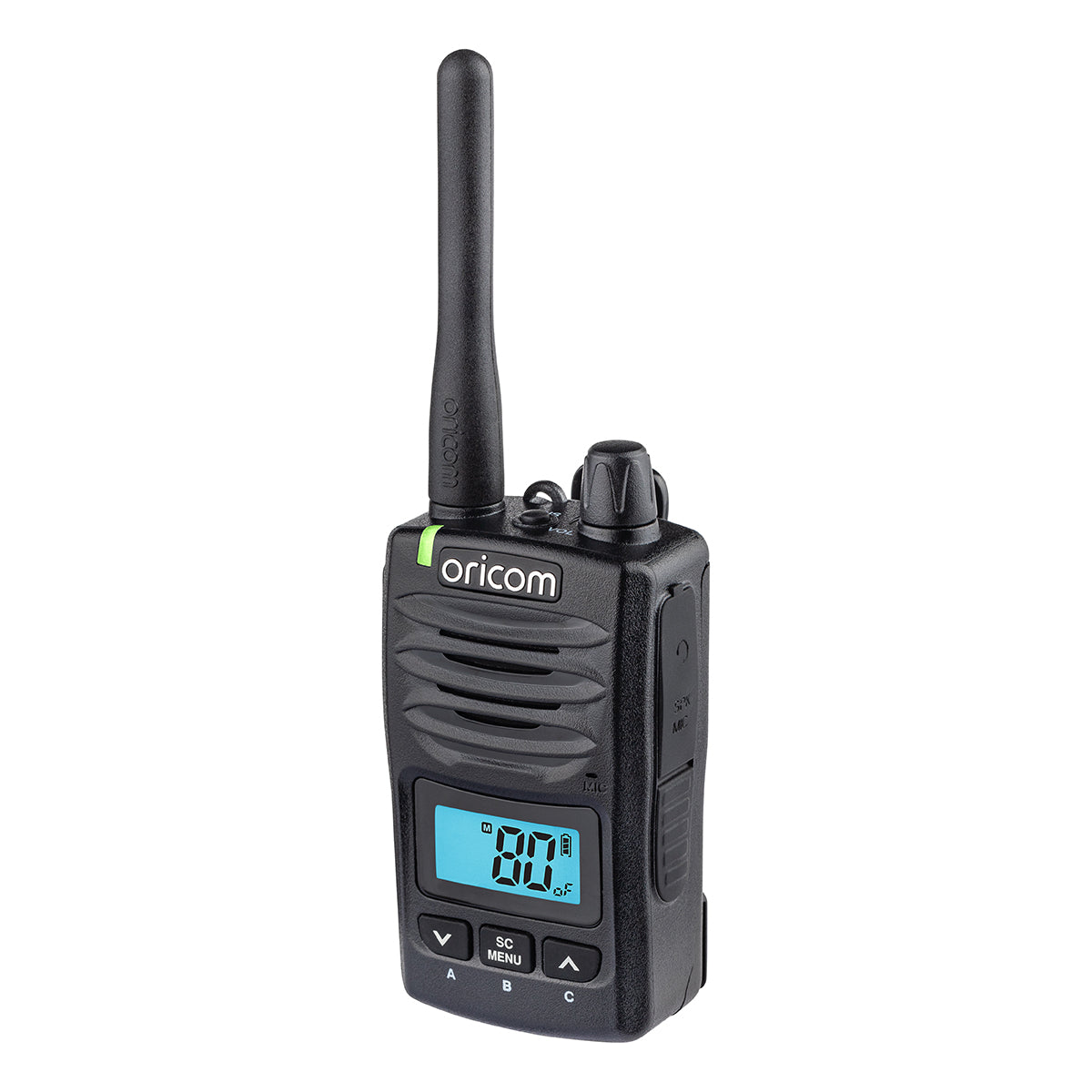

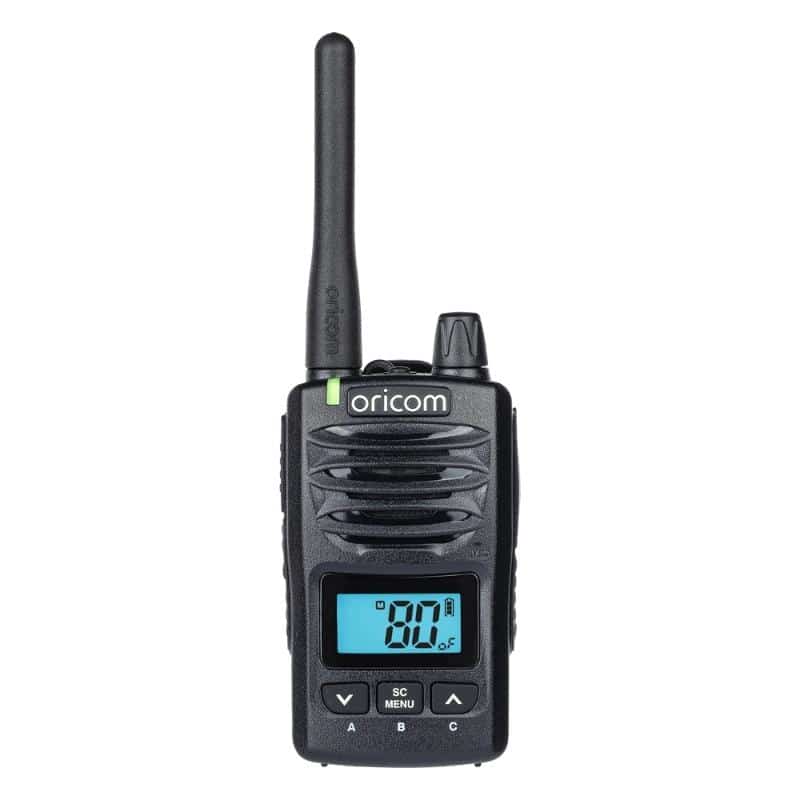

📻 ORICOM DTX600 5W IP67 WATERPROOF HANDHELD UHF CB RADIO – BLACK
Rugged 5 Watt Handheld UHF with Instant Replay, IP67 Protection & 2600mAh Lithium Battery
The Oricom DTX600 is a compact, heavy-duty 5 Watt handheld UHF CB radio designed for 4WDing, touring, worksites, farms and outdoor use.
With IP67 water and dust protection, a large backlit LCD display, up to 10 minutes of Instant Replay recording and a 2600mAh lithium-ion battery, the DTX600 packs serious functionality into a radio that fits comfortably in your hand.

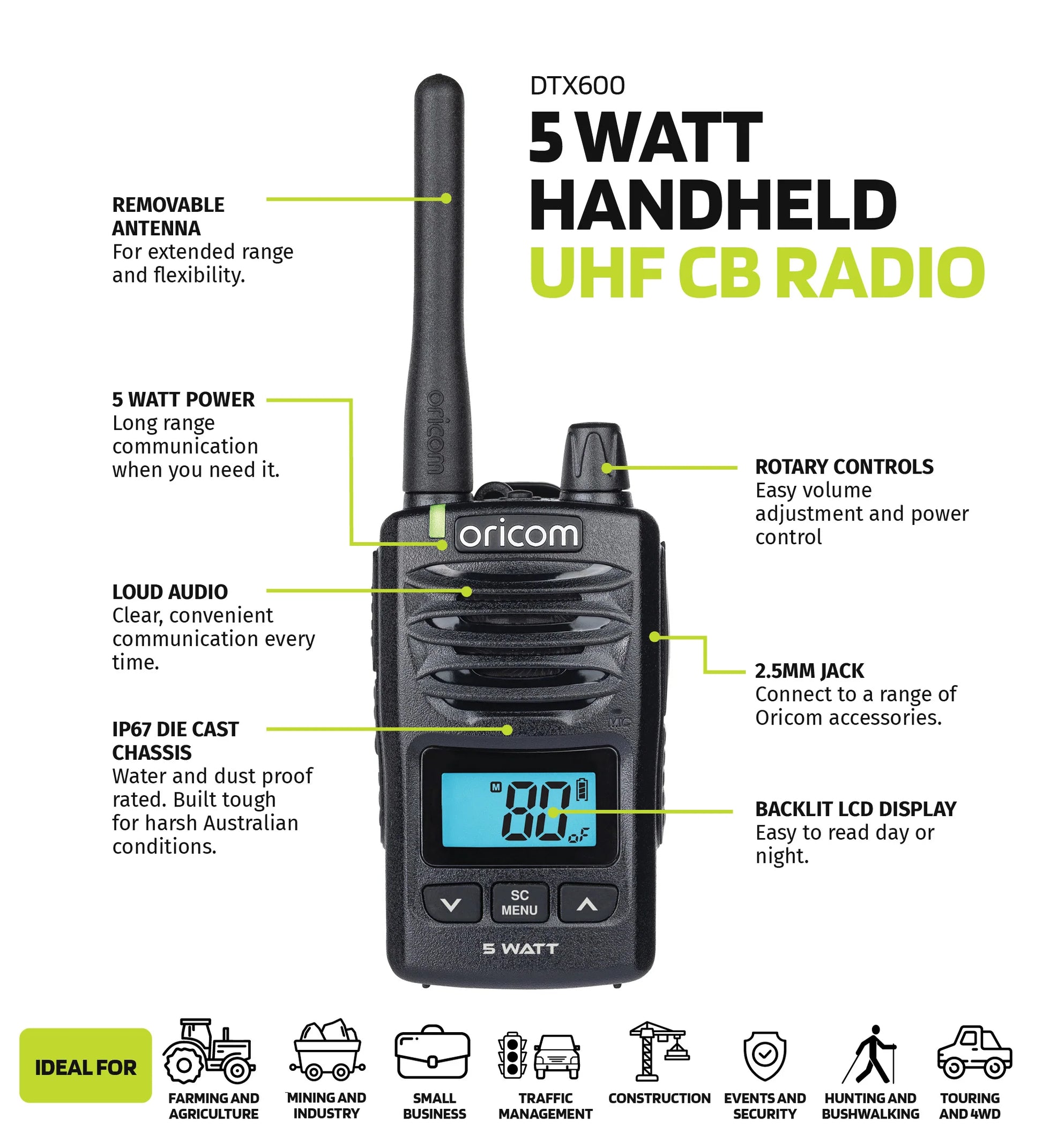

⚡ KEY FEATURES
📻 Switchable 5W / 1W Output
Use full 5 Watt transmit power when required or switch to 1 Watt for lower-power operation.

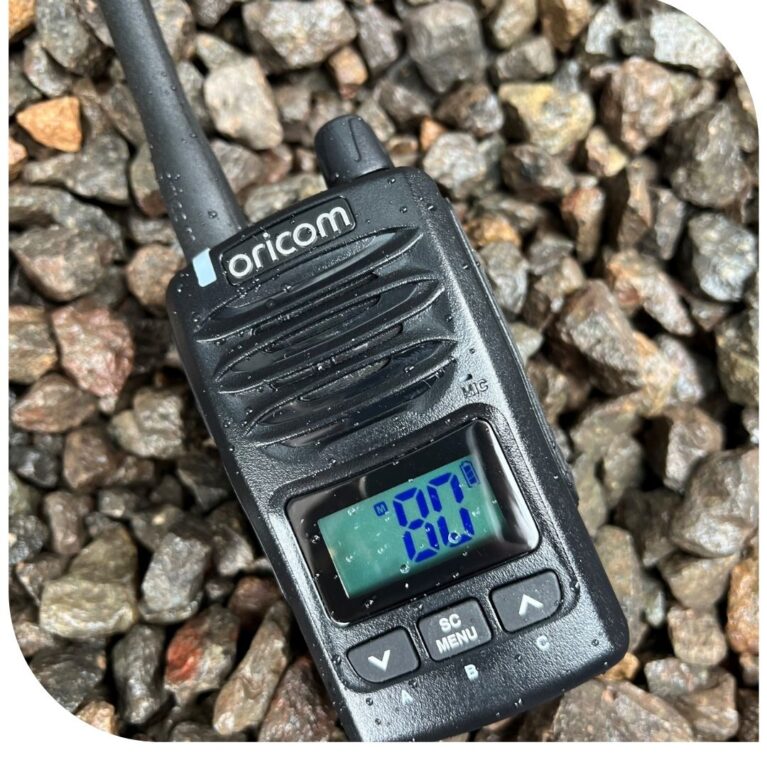

💦 IP67 Water & Dust Protection
Built for demanding outdoor environments when correctly assembled and sealed.
⏪ Instant Replay
Records incoming transmissions with up to 10 minutes of replay capacity.
🔋 2600mAh Lithium-Ion Battery
Listed for up to 20 hours operation on High TX power or up to 30 hours on Low TX power.
📡 80 UHF CB Channels
Supports Simplex and Duplex operation for Australian UHF CB communications.
⭐ 3 Programmable Instant Channel Buttons
Quick access to your most frequently used channels.
🔍 Open / Instant / Priority Scan
Multiple scanning modes make it easier to monitor active channels.
👀 Triple Watch
Additional flexibility for monitoring important channels.
🛡️ Die-Cast Metal Chassis
Rugged construction designed for portable use in tough environments.
🔌 Fast 12V & 240V Charging
Supplied with a fast-charging pod plus mains and 12V adaptors.

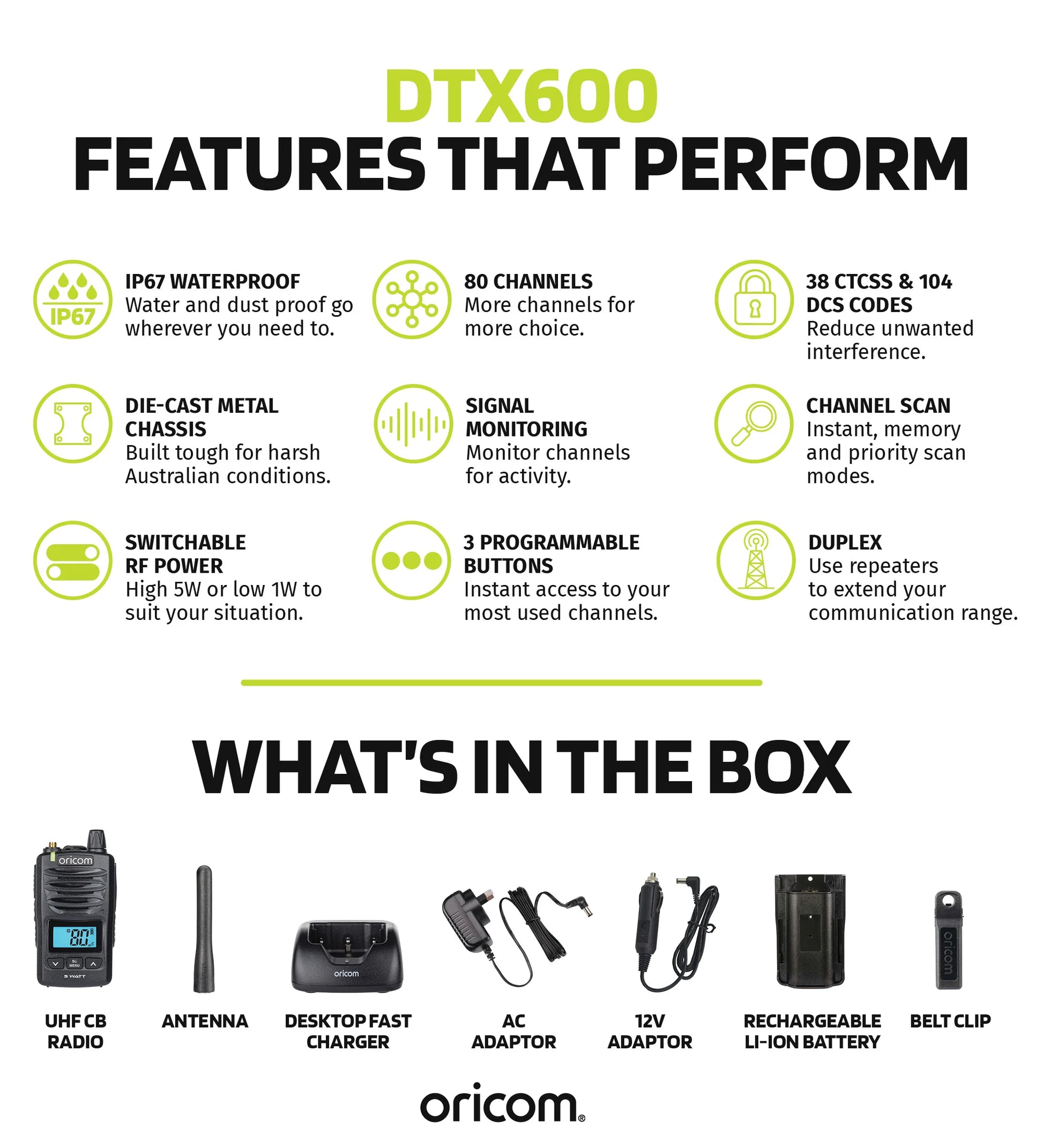

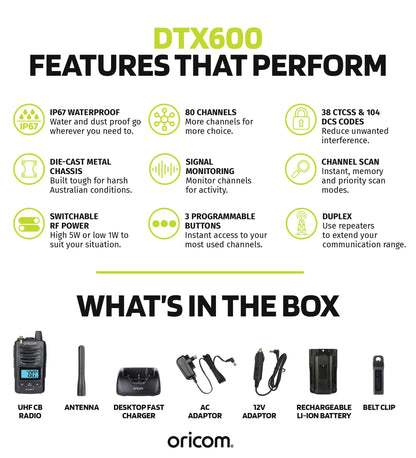

📦 PACK INCLUDES
- 📻 1 × Black DTX600 UHF CB Radio
- 📡 1 × Antenna

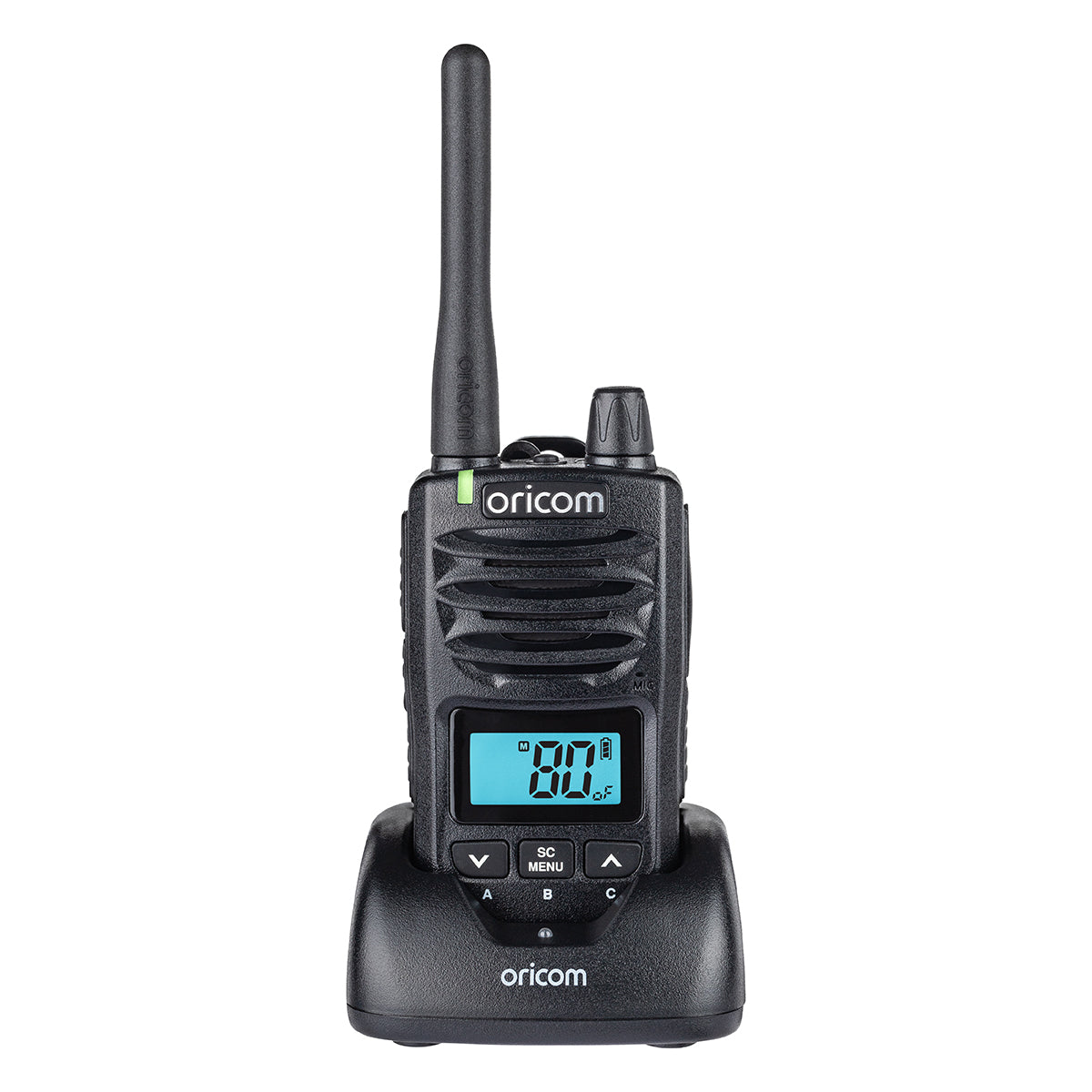

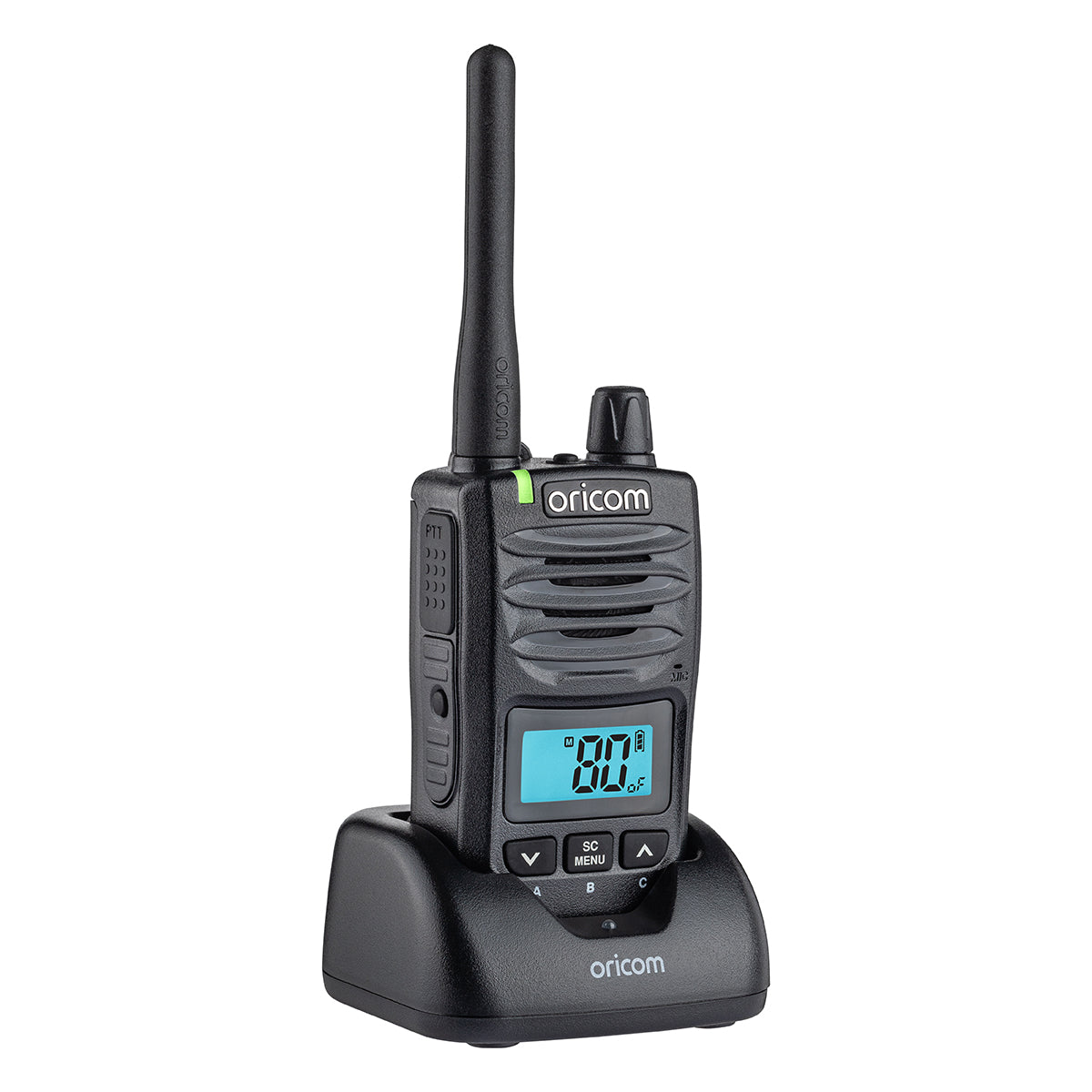

- 🔌 1 × Fast Charging Pod
- 🔌 1 × Mains Adaptor
- 🚗 1 × 12V Adaptor
- 🔋 1 × 2600mAh Rechargeable Lithium-Ion Battery Pack
- 🧷 1 × Belt Clip
📋 TECHNICAL SPECIFICATIONS
Model: DTX600
Colour: Black
RF Output Power: 5 Watts High / 1 Watt Low
Channels: 80 UHF CB – 75 Usable
Frequency Range TX/RX: 476.425–477.4125MHz
Channel Spacing: 12.5kHz
Operating Modes: Simplex / Duplex
Scanning: Open / Instant / Priority
Scanning Speed: 150ms Per Channel
Instant Replay: Up to 10 Minutes Recording
CTCSS / DCS: 38 / 104
Signal Monitoring: Yes
Triple Watch: Yes
Audio Scrambler: Yes
Accessory Connection: 2.5mm Jack with Locking Screw
Battery: 7.4V 2600mAh Lithium-Ion
Operating Time: Up to 20 Hours on High TX Power / Up to 30 Hours on Low TX Power
Ingress Protection: IP67
Antenna Impedance: 50 Ohms
Chassis: Die-Cast Metal
Modulation: FM
Maximum Deviation: ±2.5kHz
Receiver Type: Direct Conversion via Single DSP Chip
Receiver Sensitivity: Less Than -122dBm at 12dB SINAD
Selectivity: More Than 70dB
Intermodulation Immunity: More Than 70dB
Spurious Response Immunity: More Than 60dB
Frequency Stability: ±2.5ppm
Compliance: AS/NZS 4365:2011 & NZS 2772.1
Designed, Engineered & Produced In: Korea
⚠️ CTCSS, DCS and the audio-scrambler function do not provide secure encrypted communications.
🔧 IDEAL FOR
- 🚙 4WD touring & vehicle spotting
- 🏕️ Camping & outdoor adventures
- 🔨 Tradies & worksites
- 🚜 Farms & property work
- 🪢 Vehicle recoveries
❓ QUICK FAQ
Can I charge the DTX600 in my vehicle?
Yes. A 12V adaptor is supplied along with the fast-charging pod and mains adaptor.
How long does the battery last?
Operating time is listed at up to 20 hours on High TX power and up to 30 hours on Low TX power, depending on use.
Can I connect an external accessory?
Yes. The DTX600 has a 2.5mm accessory jack with a locking screw for compatible optional accessories.
📻 COMPACT, TOUGH & READY TO GO ANYWHERE
With full 5 Watt output, IP67 protection, Instant Replay and long lithium battery life, the Oricom DTX600 is a strong handheld UHF choice for users who need reliable portable communication on the road, at work or off the beaten track.
