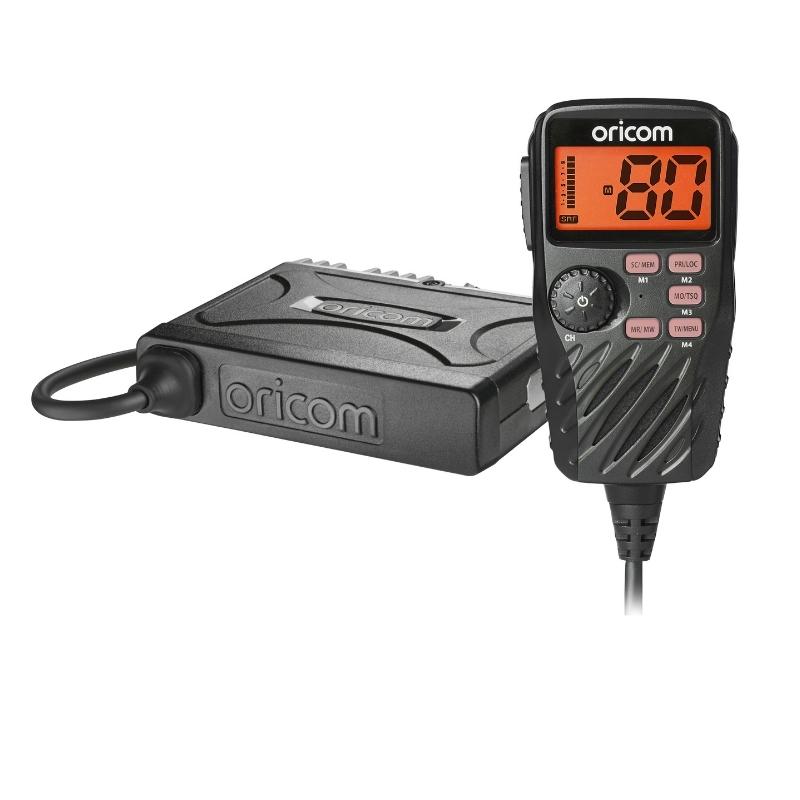

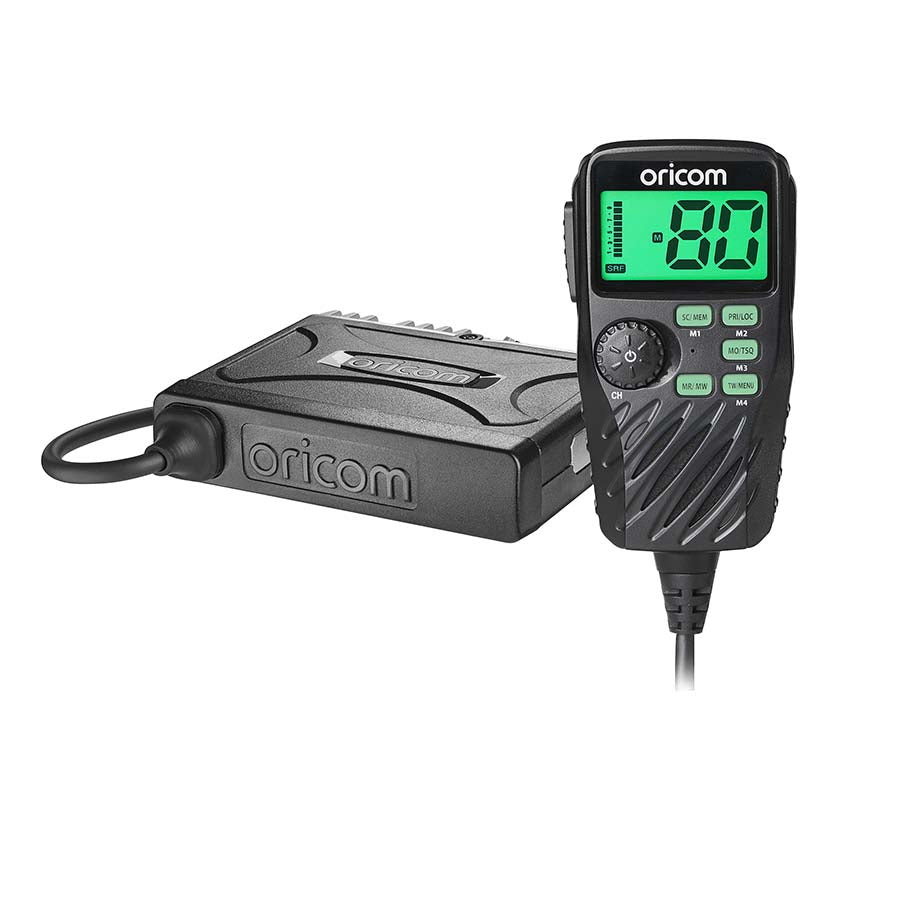

📻 ORICOM UHF390R 5 WATT UHF CB RADIO WITH CONTROLLER SPEAKER MICROPHONE
Compact Hideaway UHF with Full Microphone Controls, Dual Speakers & Up to 10 Minutes Instant Replay
📡 The Oricom UHF390R is a compact 5 Watt UHF CB radio designed for modern vehicles where dashboard space is limited but easy access to radio controls and clear communications are still essential.
Instead of requiring a separate control head, the UHF390R places the main operating controls, large LCD display and an additional speaker directly into the heavy-duty controller microphone. This allows the compact transceiver to be hidden under the dashboard, beneath a seat or in another suitable concealed location.
A standout feature is Instant Replay, which provides up to 10 minutes of recording so important UHF communications can be replayed if a message, direction or call was missed the first time.
The UHF390R also features dual-speaker operation, with audio available through both the transceiver and controller microphone, full 5 Watt maximum transmit power, 80 UHF CB channels, duplex repeater capability, CTCSS/DCS signalling and open or priority scanning.
Designed for Australian conditions and manufactured in Korea, the UHF390R is backed by a 5-year warranty.
⚡ KEY FEATURES
📻 Full 5 Watt UHF CB Output
Delivers up to 5 Watts maximum transmit power for full-power Australian UHF CB communications.
⏪ Up to 10 Minutes Instant Replay
Records received communications so missed messages can be replayed rather than asking for them to be repeated.

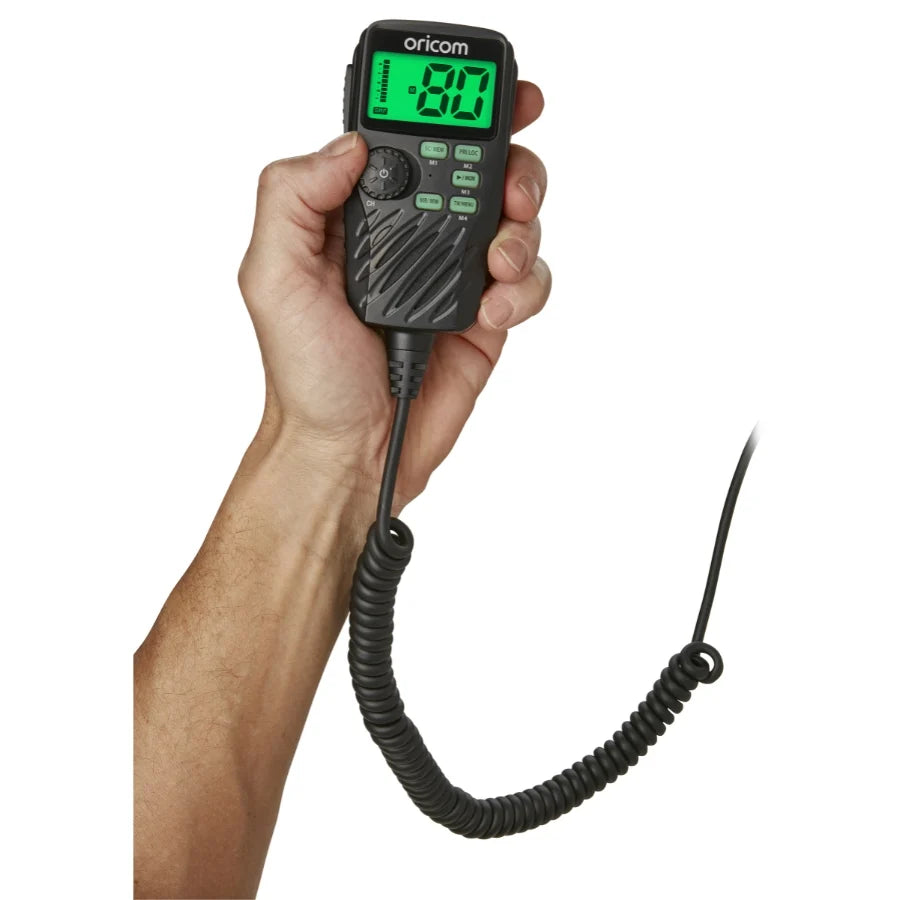

🎙️ Heavy-Duty Controller Speaker Microphone
The microphone combines radio controls, LCD display and speaker functionality into one easily accessible unit.
📦 Rugged Micro-Size Transceiver
The compact 27 × 102 × 85mm radio body can be installed discreetly under a dashboard, seat or in another suitable protected location.
🔊 Dual Speaker System
Audio is provided through both the controller microphone and transceiver for strong, clear sound within the vehicle.
🖥️ Large Easy-to-Read LCD
The controller microphone incorporates a large display so channel and operating information remains conveniently visible.
🎙️ Automatic Level Control
ALC helps maintain consistent transmitted audio levels for clearer communication.
📡 80 UHF CB Channels
Supports the Australian 80-channel UHF CB system, including 75 voice channels.
🔐 38 CTCSS & 104 DCS Codes
Provides extensive signalling options for compatible group communications.
📶 Duplex Repeater Capability
Supports repeater operation with the standard +750kHz transmit offset to extend communications where compatible repeaters are available.
🔍 Open & Priority Scan
Allows the radio to monitor channel activity rather than remaining fixed to a single channel.
⭐ Priority Channel
Provides dedicated monitoring and quick access to a nominated priority channel.
🔌 Microphone Extension Cables Included
Two microphone extension cables are supplied, including one intended for use with a compatible pass-through connector.
🛡️ 5 Year Warranty
Backed by a five-year warranty for added confidence.
⏪ INSTANT REPLAY – UP TO 10 MINUTES OF RECORDING
One of the most useful features of the UHF390R is its built-in Instant Replay function.
The radio can retain up to approximately 10 minutes of received communications, allowing you to replay a message if you did not hear it clearly the first time.
This can be especially useful when:
- 🚙 Travelling in a 4WD convoy
- 🚚 Receiving directions from another vehicle
- 🏗️ Working around noisy machinery
- 🚜 Operating agricultural equipment
- 🛣️ Receiving important road or traffic information
- 🔊 Cabin noise makes a transmission difficult to hear
Rather than immediately asking another user to repeat their message, Instant Replay gives you the ability to listen again.

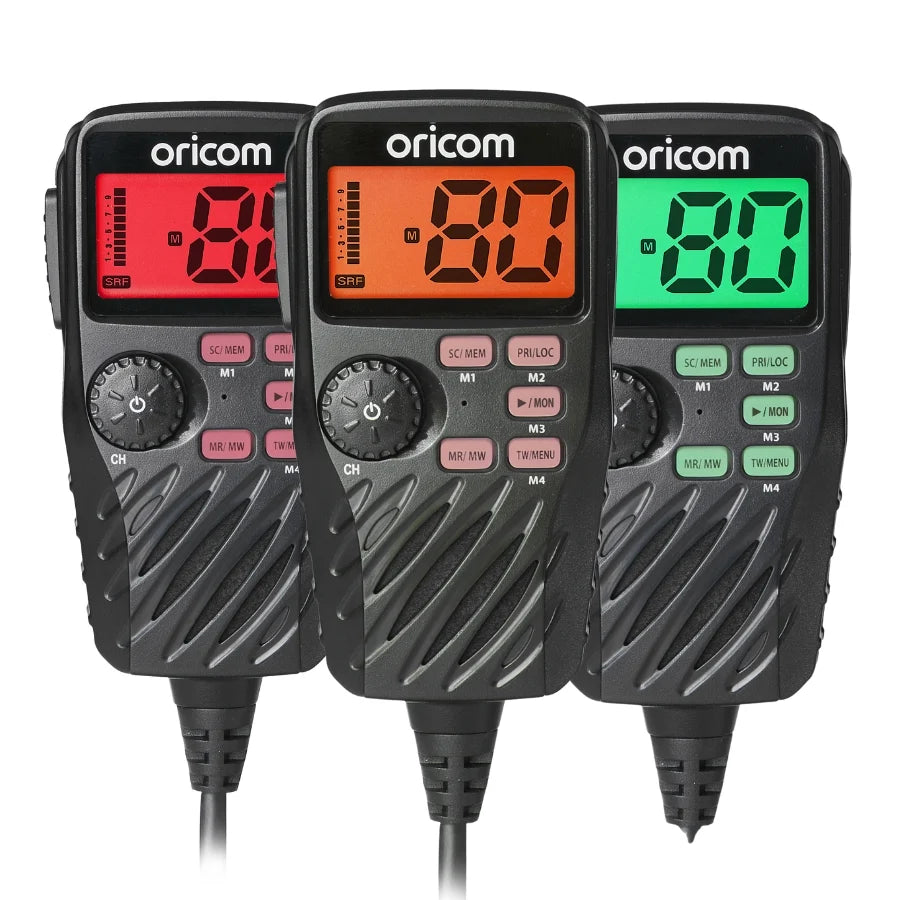

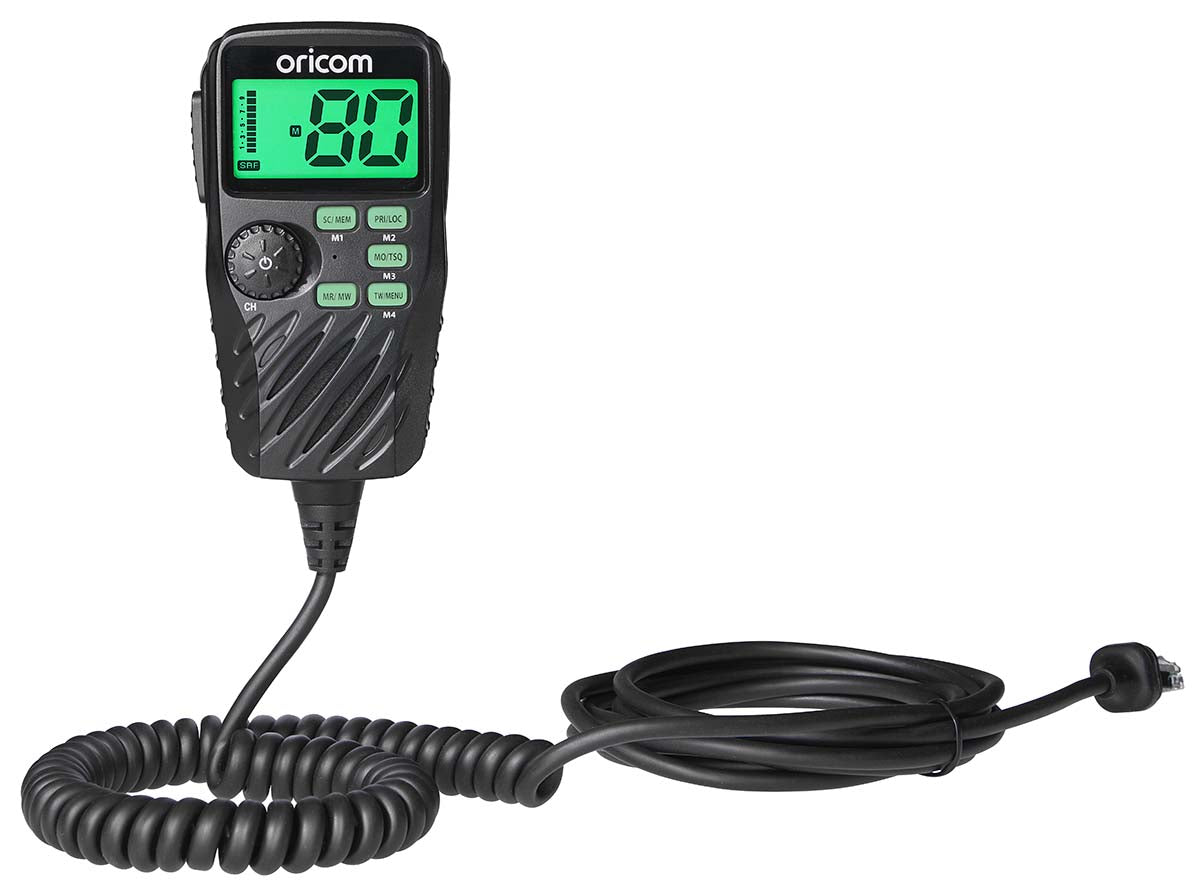

🎙️ EVERYTHING YOU NEED ON THE CONTROLLER MICROPHONE
The UHF390R eliminates the need for a separate dashboard-mounted control head by integrating the radio controls into the heavy-duty microphone.
The controller microphone incorporates:
- 🖥️ Large LCD display
- 🎛️ Radio controls
- 🔊 Built-in speaker
- 🎙️ Push-to-talk functionality
This means the transceiver itself can be installed out of sight while the microphone remains the primary user interface.
🚙 IDEAL FOR MODERN VEHICLES WITH LIMITED DASH SPACE
Modern dashboards often leave little room for a conventional full-size UHF radio.
The UHF390R solves this problem by using a micro-size transceiver measuring only:
Height: 27mm
Width: 102mm
Depth: 85mm
The compact transceiver can potentially be installed:
- 🚙 Under the dashboard
- 💺 Beneath a seat
- 🧰 Behind suitable interior trim
- 🚐 Inside a compatible console
- 🛻 In other protected concealed mounting locations
The controller microphone then keeps the display, audio and everyday controls within convenient reach.
🔊 DUAL SPEAKER AUDIO
The UHF390R incorporates speakers in both:
- 🎙️ Controller microphone
- 📻 Transceiver body
This dual-speaker arrangement is designed to provide excellent sound quality and useful audio volume in the vehicle cabin.
Maximum receiver audio output is listed at 3 Watts.
📻 FULL 5 WATT RF TRANSMIT POWER
Maximum RF Output Power: 5 Watts
Despite the compact transceiver design, the UHF390R delivers full-power UHF CB transmission capability.
When combined with an appropriately selected and installed 50-ohm UHF antenna system, it provides a capable communications setup for 4WD touring, convoys, commercial vehicles and general UHF CB use.
⚠️ Actual communication range depends heavily on antenna selection, antenna location, terrain, buildings, surrounding vehicles and whether direct or repeater operation is being used.
📶 DUPLEX REPEATER OPERATION
The UHF390R supports both simplex and repeater operation.
Repeater TX Offset: +750kHz
Where a compatible UHF CB repeater is available, duplex operation can extend practical communication coverage beyond direct vehicle-to-vehicle range.
⚠️ Duplex operation only provides a range advantage where an appropriate repeater is accessible. It does not automatically increase direct radio-to-radio range.
🔍 OPEN & PRIORITY SCANNING
The UHF390R includes both open and priority scan functions.
This allows the radio to monitor UHF CB channel activity automatically rather than requiring the operator to manually change channels.
Scanning Speed: Approximately 150ms Per Channel
A dedicated priority-channel function is also provided.
🔐 38 CTCSS & 104 DCS CODES
The UHF390R incorporates:
38 CTCSS Codes
104 DCS Codes
These signalling options allow compatible radios to filter unwanted received audio from other users sharing the same UHF CB channel.
⚠️ CTCSS and DCS do not make a channel private or encrypted. Other users can still monitor or transmit on the underlying UHF CB channel.
🎙️ AUTOMATIC LEVEL CONTROL – ALC
Automatic Level Control helps maintain consistent transmitted audio levels.
This can improve communication where microphone distance or the speaking volume of different users varies during normal operation.
🔌 TWO MICROPHONE EXTENSION CABLES INCLUDED
The UHF390R includes two microphone extension cables to provide greater flexibility when positioning the hidden transceiver and controller microphone.
One of these cables is designed for use with a pass-through connector.
This is an important consideration if you are planning a factory-style installation where the microphone plugs into a separate dashboard or console connection point.
⚡ 12V VEHICLE OPERATION
Nominal Operating Voltage: 13.8V DC
Operating Voltage Range: 10–15V DC
The UHF390R is therefore designed for compatible nominal 12V vehicle electrical systems.
⚠️ IMPORTANT: The specified operating range is 10–15V DC. Do not connect the UHF390R directly to a nominal 24V electrical system.
🛡️ BUILT-IN ELECTRICAL PROTECTION
The UHF390R incorporates:
- ⚡ Over-voltage protection via voltage regulator system
- 🛡️ Over-current protection via 2A fuse
- 🔄 Reverse-polarity protection via shunt diode
Correct wiring and fuse installation are still essential.
🔧 50-OHM ANTENNA REQUIREMENT
Antenna Impedance: 50 Ohms
The choice of UHF antenna has a major influence on real-world communication performance.
The appropriate antenna will depend on factors such as:
- 🏜️ Open-country touring
- ⛰️ Hilly or mountainous terrain
- 🏙️ Urban operation
- 🚛 Commercial highway travel
- 🚙 Antenna mounting position on the vehicle
🇦🇺 DESIGNED FOR AUSTRALIAN CONDITIONS
The UHF390R is designed for Australian operating conditions and is manufactured in Korea.
Compliance: AS/NZS 4365:2011
🛡️ 5 YEAR WARRANTY
The UHF390R is backed by a five-year warranty, making it an attractive choice for customers looking for a long-term communications solution for their vehicle.
📋 TECHNICAL SPECIFICATIONS
Brand: Oricom
Model: UHF390R
Product Type: UHF CB Radio with Controller Speaker Microphone
RF Output Power: 5 Watts Maximum
TX/RX Frequency Range: 476.425–477.4125MHz
Number of UHF CB Channels: 80
Voice Channels: 75
Channel Spacing: 12.5kHz
Operating Modes: Simplex & Repeater
Repeater TX Offset: +750kHz
Scanning Modes: Open & Priority
Scanning Speed: 150ms Per Channel
Priority Channel: Yes
CTCSS Codes: 38
DCS Codes: 104
Instant Replay: Yes
Maximum Replay Recording: Up to 10 Minutes
Controller Speaker Microphone: Yes
Microphone LCD Display: Yes – Large Easy-to-Read Display
Dual Speakers: Transceiver & Controller Microphone
Automatic Level Control: Yes
Antenna Impedance: 50 Ohms
Nominal Operating Voltage: 13.8V DC
Operating Voltage Range: 10–15V DC
Transmit Current Consumption: Approximately 1.7A with 50-Ohm Antenna Termination
Over-Voltage Protection: Voltage Regulator System
Over-Current Protection: 2A Fuse
Reverse-Polarity Protection: Shunt Diode
Frequency Stability: ±2.5ppm
Modulation: F3E / FM
Maximum Deviation: 2.5kHz
Spurious Emissions: <-70dBc
TX Audio Pre-Emphasis: 6dB/Octave from 300Hz to 3kHz
Receiver Circuit Type: Direct Conversion via Single DSP IC
Intermediate Frequency: 137kHz
Maximum Usable Sensitivity: < -122dBm at 12dB SINAD
Maximum Audio Output Power: 3 Watts
RX Audio De-Emphasis: +6dB/Octave from 300Hz to 3kHz – As Listed in the Technical Information
Transceiver Dimensions (H × W × D): 27 × 102 × 85mm
Microphone Extension Cables: 2 Included
Pass-Through Connector: Not Included
Compliance: AS/NZS 4365:2011
Designed For: Australian Conditions
Country of Manufacture: Korea
Warranty: 5 Years
🔧 INSTALLATION CONSIDERATIONS
- Use with a compatible nominal 12V electrical system within the stated 10–15V range
- Retain the specified 2A fuse protection
- Do not connect directly to a 24V vehicle electrical supply
- Select a suitable 50-ohm UHF antenna system
- Mount the antenna appropriately for the vehicle and intended terrain
- Choose a protected location for the micro-size transceiver
- Allow suitable access for servicing and wiring
- Plan controller-microphone cable routing before concealing the transceiver
- Use the supplied extension cables where required
- Source a compatible pass-through connector separately if that installation method is required
❓ FREQUENTLY ASKED QUESTIONS
What is the main advantage of the UHF390R?
It gives you full 5 Watt UHF CB performance without needing a conventional radio control head mounted in the dashboard. The controls, display and an additional speaker are built into the microphone, allowing the transceiver to be hidden away.
What does the Instant Replay feature do?
Instant Replay allows previously received communications to be replayed. The UHF390R provides up to approximately 10 minutes of recording capacity.
Is Instant Replay useful for 4WD touring?
Yes. If you miss a convoy direction, road warning or other transmission because of cabin noise or distraction, you can replay the received communication rather than immediately asking the other driver to repeat it.
Does the microphone have a speaker built in?
Yes. The heavy-duty controller microphone includes its own speaker.
Does the transceiver also have a speaker?
Yes. The UHF390R uses a dual-speaker arrangement with audio from both the transceiver and controller microphone.
Can I hide the actual radio under the dashboard?
Yes. That is one of the main design advantages of the UHF390R. The compact 27 × 102 × 85mm transceiver can be installed in a suitable concealed location while the microphone provides the user interface.
Can I mount the transceiver under the driver's seat?
Potentially, yes. The installation location needs to remain protected, securely mounted and suitable for the required power, antenna and microphone cable routing.
Does the UHF390R have the full 80 UHF CB channels?
Yes. It supports 80 Australian UHF CB channels, including 75 voice channels.
Is this a full-power UHF?
Yes. Maximum RF transmit output is specified at 5 Watts.
How far will the UHF390R transmit?
There is no single accurate range figure. Communication distance depends significantly on terrain, antenna gain, antenna mounting position, surrounding obstacles and whether you are using direct simplex or repeater operation.
Can I use UHF repeaters?
Yes. The UHF390R supports duplex repeater operation with the standard +750kHz transmit offset.
Does duplex automatically increase my UHF range?
No. Duplex allows the radio to use a compatible repeater. It can provide much greater coverage where an appropriate repeater is within range, but provides no advantage if a suitable repeater is unavailable.
What antenna should I use?
The radio requires a 50-ohm antenna system. The best antenna depends on the vehicle, mounting position and whether you predominantly travel in open country, hilly terrain or built-up areas.
Does an antenna come with the radio?
An antenna is not identified as included in the information provided here, so check the exact package contents if you require a complete radio and antenna setup.
What are CTCSS and DCS used for?
They allow compatible radios to mute unwanted received audio that does not carry the selected signalling code, which can make group communications easier on busy channels.
Are CTCSS and DCS private channels?
No. They do not encrypt transmissions. Other radios can still hear or transmit on the underlying UHF CB channel.
Does it scan channels?
Yes. Open and priority scanning are supported along with a dedicated priority-channel function.
What are the two microphone extension cables for?
They provide greater installation flexibility between the hidden transceiver and controller microphone. One cable is intended for an installation using a pass-through connector.
Does the pass-through connector come with it?
No. The information specifically states that the pass-through connector is not supplied.
Can I install this in a 24V truck?
Not directly. The UHF390R is specified for 10–15V DC operation, so a suitable 24V-to-12V conversion solution would be required in a nominal 24V vehicle.
Would the UHF400R be a better choice for a 24V truck?
If direct 24V electrical compatibility is important, the UHF400R is better suited because its stated 10–30V operating range supports nominal 12V and 24V systems. The UHF390R is better suited where the controller speaker microphone, compact hidden transceiver and Instant Replay feature are the priorities.
How much current does the UHF390R use when transmitting?
The specified transmit current consumption is approximately 1.7A with a 50-ohm antenna termination.
What size fuse does it use?
The specification lists a 2A fuse for over-current protection.
Does it have reverse-polarity protection?
Yes. Reverse-polarity protection is provided by a shunt diode according to the technical specification.
Does it have over-voltage protection?
Yes. A voltage-regulator system is listed for over-voltage protection.
Where is the UHF390R made?
The UHF390R is listed as being manufactured in Korea and designed for Australian conditions.
How long is the warranty?
The UHF390R is backed by a 5-year warranty.
Is the listed 5420g weight correct?
The technical information provided lists “5420gms”, but that figure should be verified before being relied upon because it appears inconsistent with the compact 27 × 102 × 85mm transceiver dimensions.
How does the UHF390R compare with the compact UHF310?
Both provide full 5 Watt output and are designed for space-restricted installations. The UHF310 has controls on a compact conventional radio body with a flip LCD, whereas the UHF390R moves the main user interface to a controller speaker microphone and adds dual-speaker audio plus up to 10 minutes Instant Replay.
What should I check before buying?
Confirm that your vehicle has a compatible 10–15V electrical supply, decide where the compact transceiver can be securely hidden, plan the controller-microphone cable route, select a suitable 50-ohm UHF antenna and determine whether your installation requires a separate pass-through connector.
📻 FULL 5 WATT UHF PERFORMANCE – WITH THE RADIO HIDDEN OUT OF SIGHT
The Oricom UHF390R is an excellent solution for modern vehicles where dashboard space is limited but serious UHF functionality is still required.
With a heavy-duty controller speaker microphone, large LCD, dual-speaker audio, full 5 Watt transmission power, 80 UHF CB channels, duplex repeater capability and up to 10 minutes of Instant Replay, it combines a discreet installation with an impressive range of practical communication features.
For 4WD touring, convoy travel, commercial vehicles and modern vehicle interiors where you want a clean installation without sacrificing accessibility or performance, the UHF390R is a highly capable UHF CB solution.
Share
SS - Product Addons
Select product(s) to see addons appear.
This message only appears in theme editor.
