REDARC Rogue RedVision System

Power your adventures with confidence using the REDARC Rogue RedVision System.

This ultra-compact unit combines intelligent battery charging with smart accessory control, all in one streamlined package.

The integrated TVMS Rogue features built-in smart fusing for dependable protection, while its slim profile fits perfectly in space-constrained vehicles.

Dimmable outputs give you flexible control over lighting, fridges, fans, and other auxiliary devices.

Everything you need to build a reliable power system is included just add your batteries, cables, and fuses to get rolling.

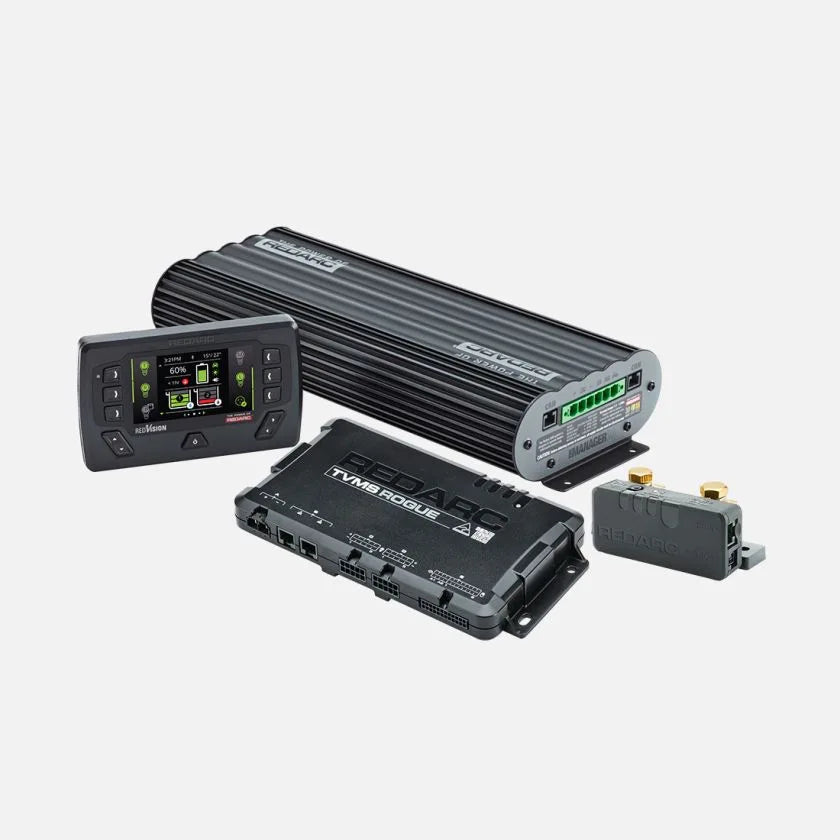

KIT INCLUDES

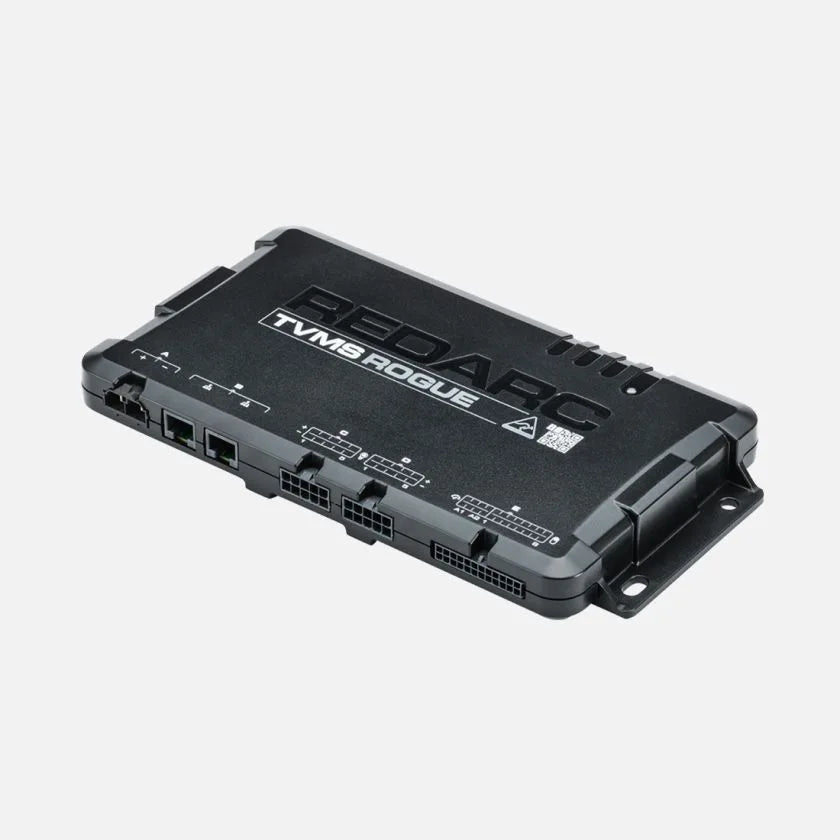

• TVMS Rogue Control Module (TVMS1240)

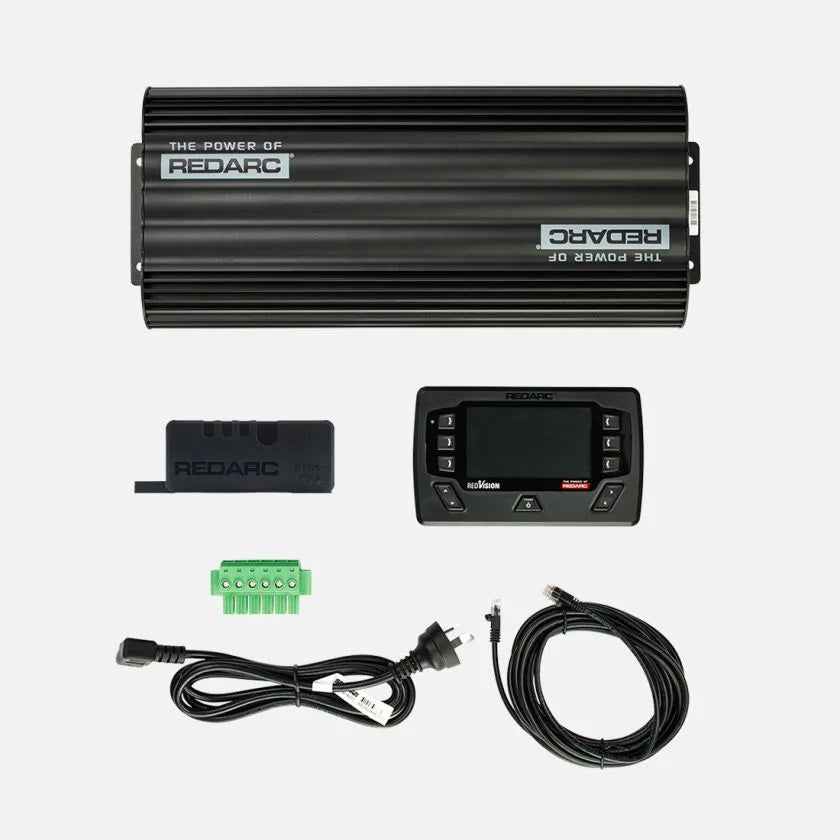

• Manager30 Battery Management System with Smart Battery Monitor + RedVision Display (BMS1230S4R-AU)


CHARGING

Whether you’re free camping or on a powered site, each RedVision system has the smarts to keep your secondary batteries charged while you travel, from solar, or from a power point at home.

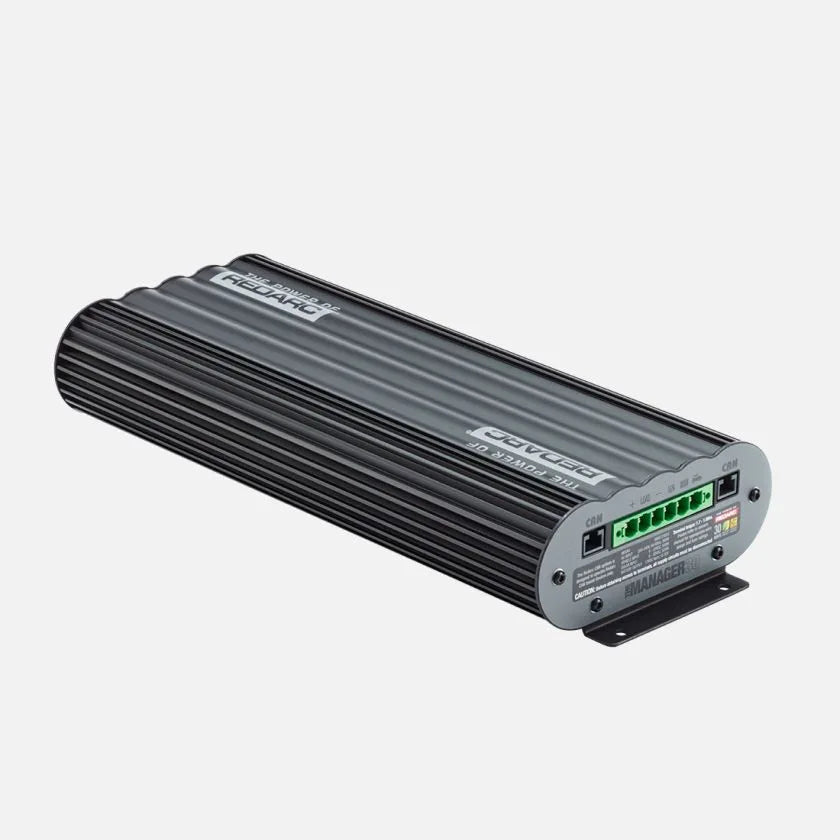

Each RedVision system includes the Manager30 battery manager. This state-of-the-art 30A charger measures your battery levels and adjusts its charge rate on the fly, ensuring your secondary batteries are kept charged and healthy.

MONITORING

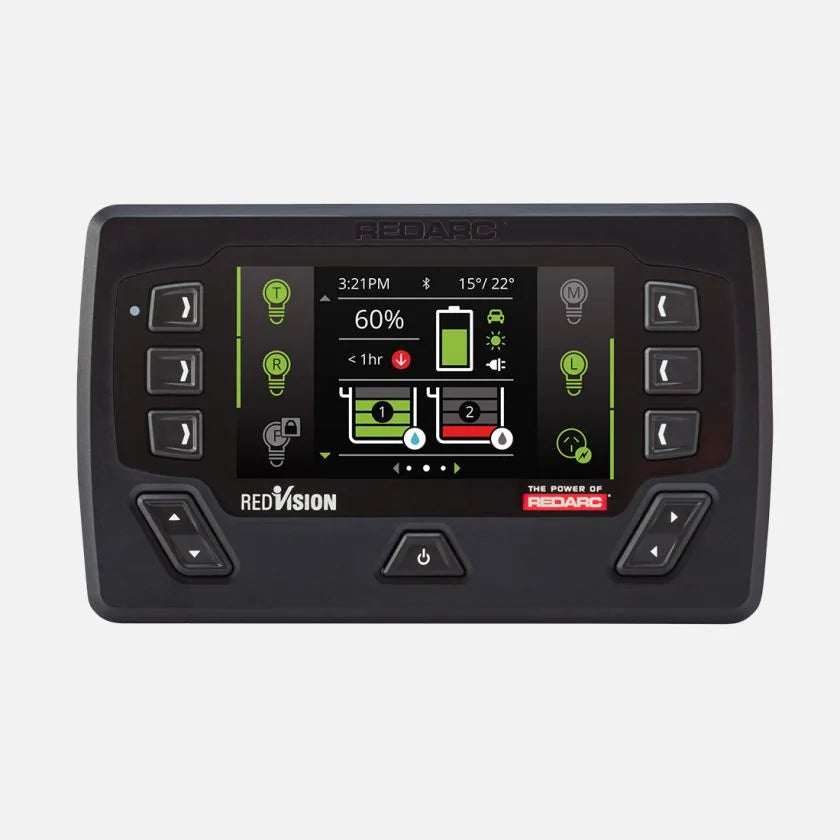

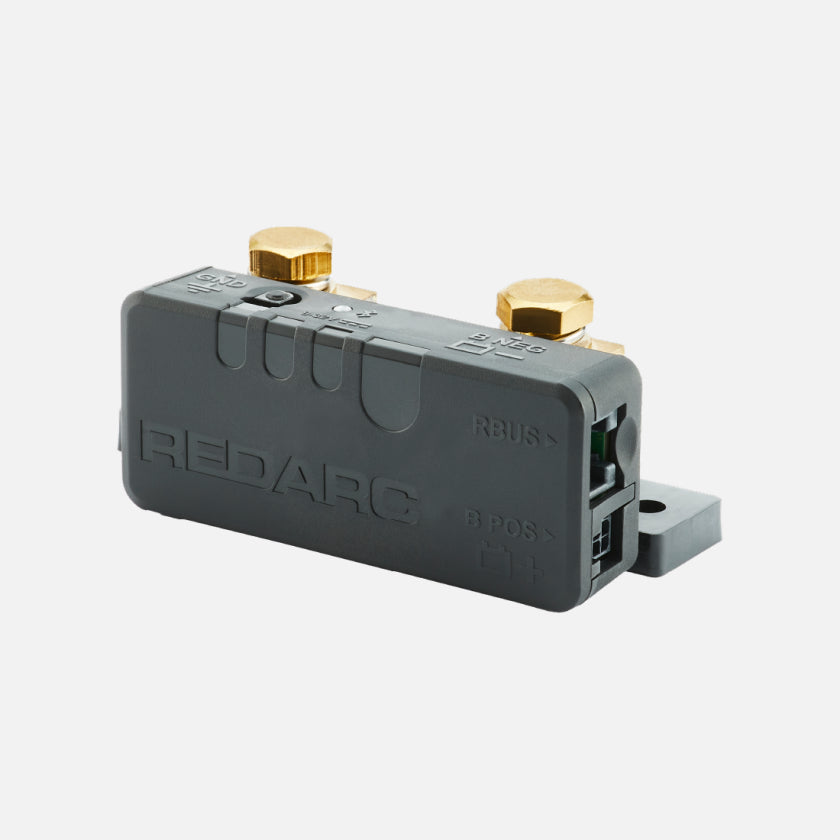

Relax knowing your power is in good hands. The included Manager30 battery manager helps you keep track of your essentials in real time. State of charge, charge remaining, charge/discharge current and battery temps are all available on the included RedVision display or connected phone app. Two analogue sensor inputs on the included TVMS Rogue can be used to measure ambient temperature, water tank levels and voltage.

CONTROL

The Rogue RedVision system allows complete control of multiple on-board devices including lights, fans, fridges, and pumps. Each of its 10 output channels include dimming and the built-in switch inputs make the Rogue perfect for lighting circuits. With the Rogue connecting to up to 8 physical switches, control is not just limited to the RedVision screen or app. It enables lights to be controlled from each room of a caravan or for the addition of reed switches to trigger lights when opening a door for example.

AUTOMATION

Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.

FEATURES

• 10x 10A dimmable outputs
• 8x inputs allow for use with physical switches
• Compact size
• On-board smart fuses
• Streamlined installation and configuration
• Fully programmable*
• Accurate analogue tank level inputs
• Multi-Stage AC-DC battery charger
• Multi-Stage DC-DC battery charger
• Maximum Power Point Tracking Solar Regulator
• Dual Battery Isolator
• Load Disconnect Controller
• Quiet operation
• Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
• Tested to mains power safety standards in Australia
• Made in Australia
