REDARC TVMS Prime RedVision System

The REDARC TVMS Prime RedVision System puts complete power management at your fingertips, whether you're parked up or on the move.

Engineered for camper trailers and mid-sized caravans, this intelligent system handles complex setups with ease monitor up to 6 water tanks, manage both low and high-powered devices, and enjoy dedicated inverter control all from one hub.

With 80A maximum current capacity, you'll have the muscle to run everything simultaneously.

The Prime package includes all essential components; simply add your batteries, cables, and fuses to complete your custom power solution.

Smart charging, real-time monitoring, and reliable accessory control combine to give you confidence in every adventure.

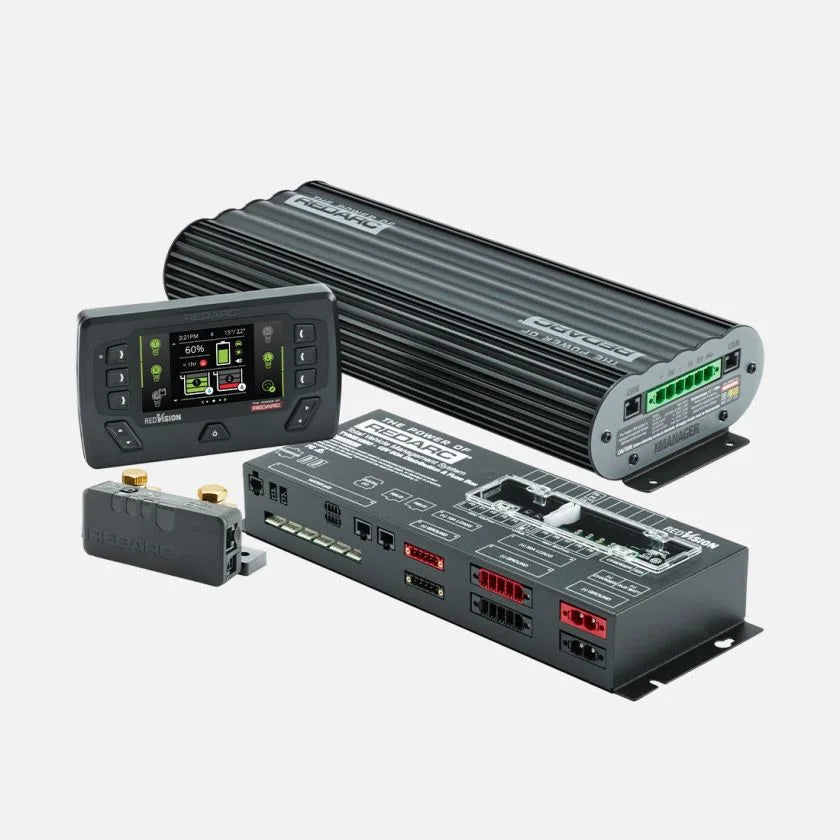

INCLUDES:

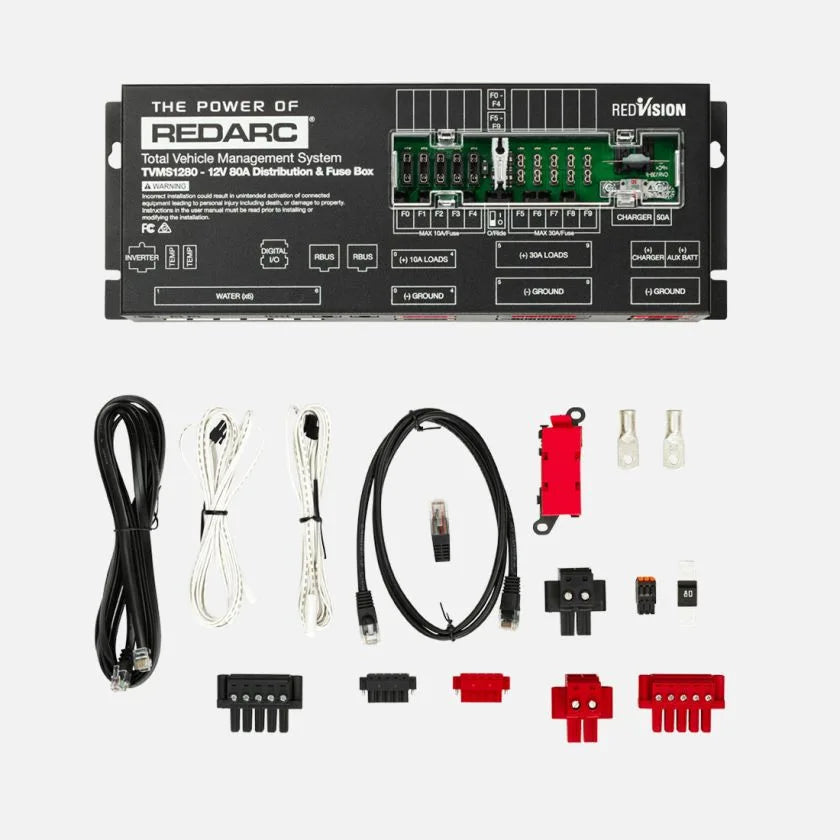

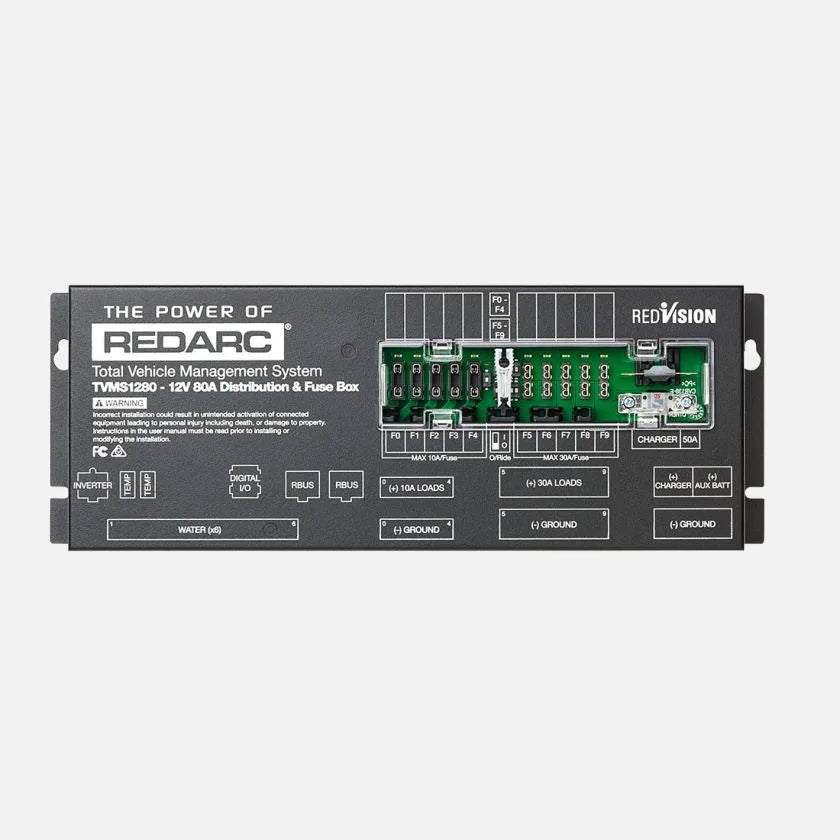

• TVMS Prime RedVision Control Module (TVMS1280)

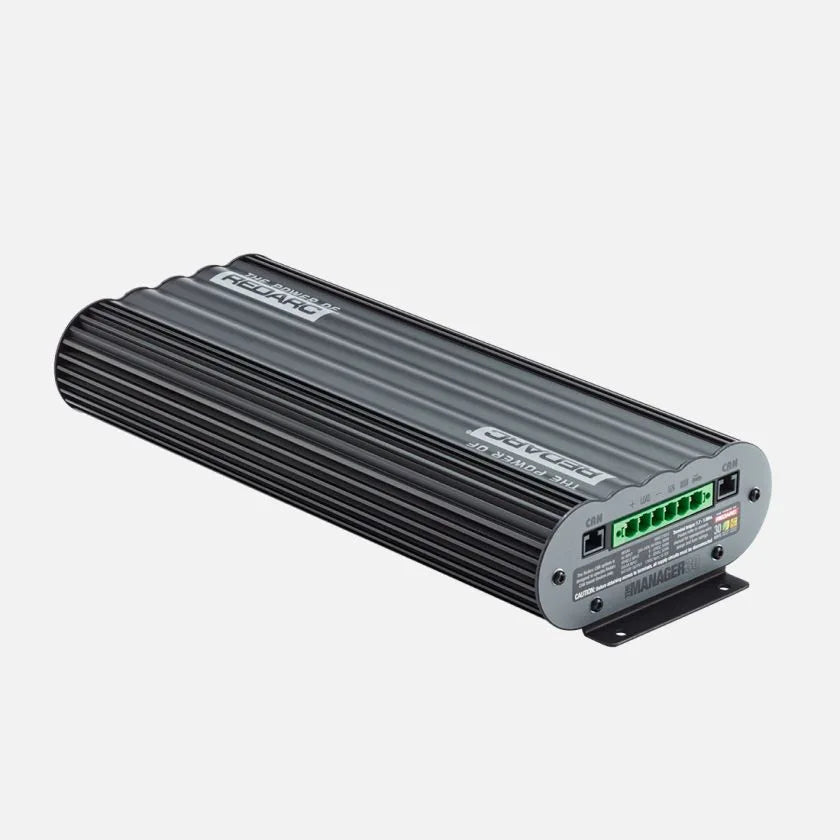

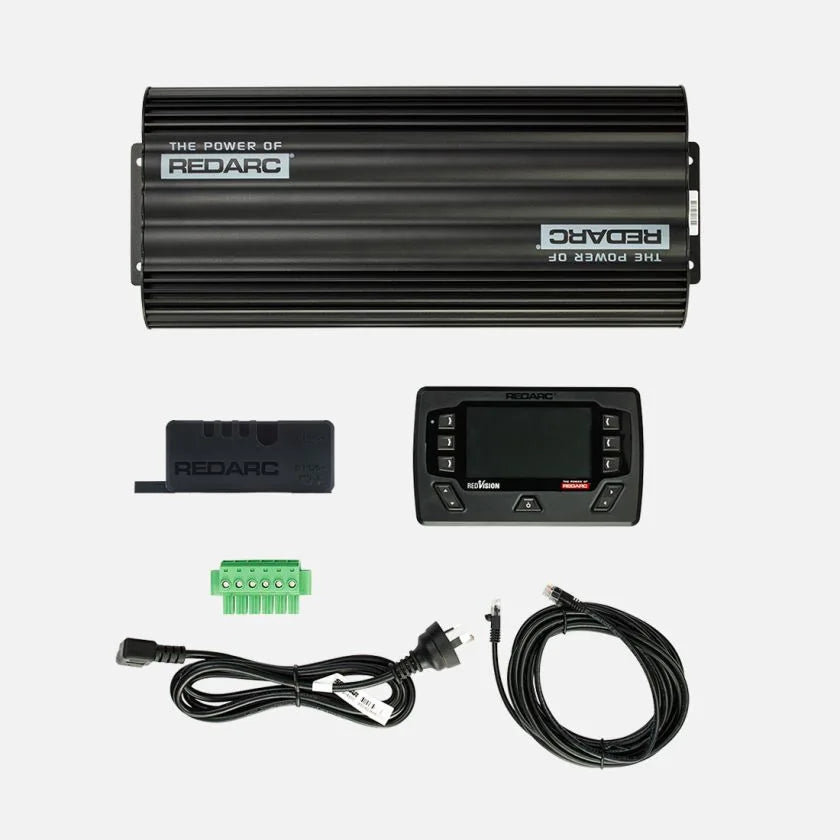

• Manager30 Battery Management System with Smart Battery Monitor (BMS1230S4R)

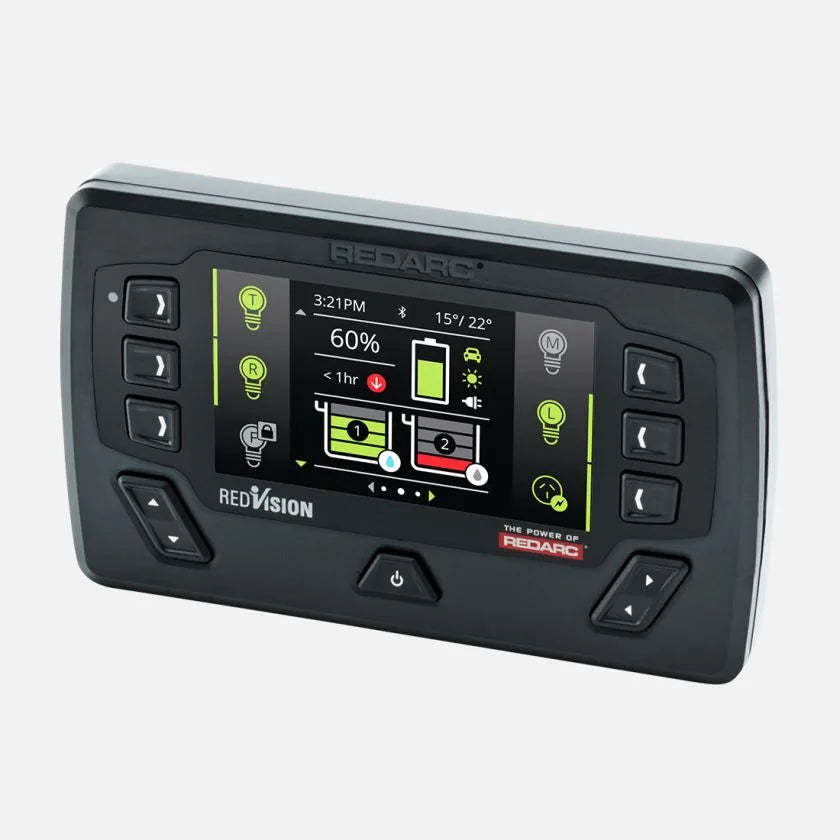

• RedVision Display (DISP4300-RC)

FEATURES:

• 5x 30A outputs
• 5x 10A outputs
• 80A maximum current
• 6x tank sensor inputs
• 2x temp sensor inputs
• 1x voltage sensor input
• 1x dedicated inverter output
• Easy accessible fuses
• Fully programmable
• Multi-Stage AC-DC Battery Charger
• Multi-Stage DC to DC Charger
• Maximum Power Point Tracking Solar Regulator
• Dual Battery Isolator
• Load Disconnect Controller
• Quiet operation
• Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
• Tested to mains power safety standards in Australia
• Made in Australia

CHARGING

Whether you’re free camping or on a powered site, each RedVision vehicle management system has the smarts to keep your secondary batteries charged while you travel, from solar, or from a power point at home.

Each RedVision system includes the Manager30 battery manager. This state-of-the-art 30A charger measures your battery levels and adjusts its charge rate on the fly, ensuring your secondary batteries are kept charged and healthy.

MONITORING

Relax knowing your power is in good hands. The included Manager30 battery management system helps you keep track of your essentials in real time. State of charge, charge remaining, charge/discharge current and battery temps are all available on the included RedVision display or connected phone app.

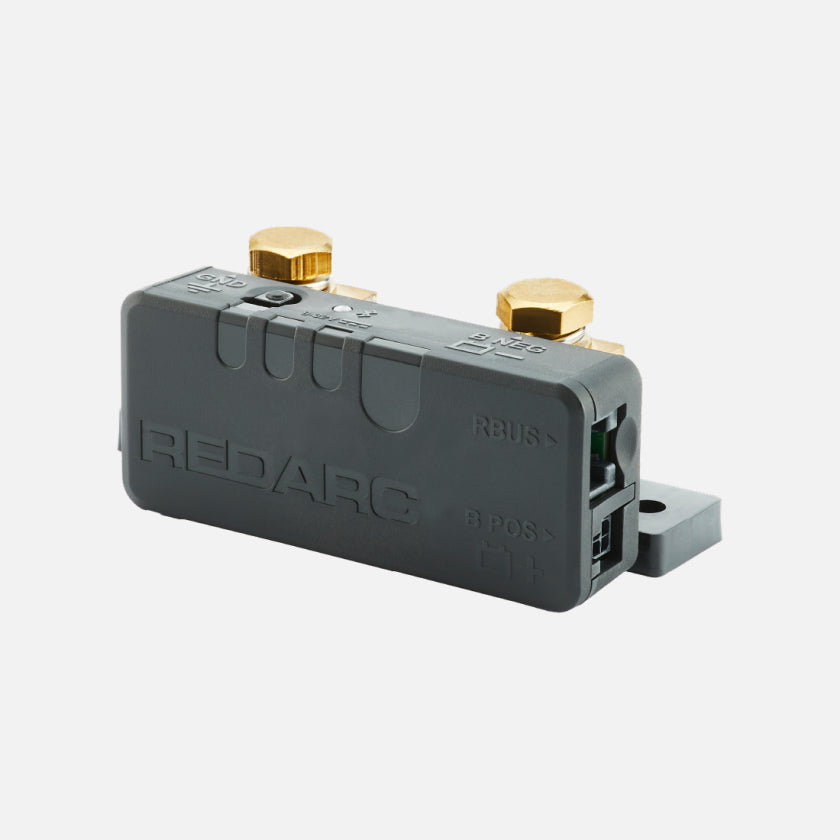

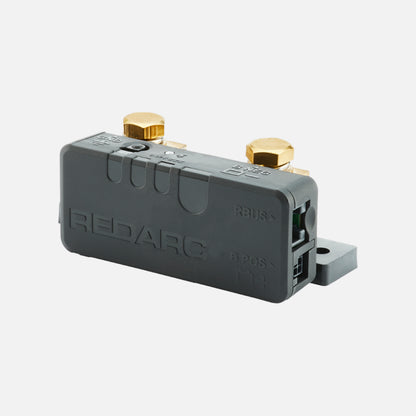

The Manager30 includes includes REDARC’s Smart Battery Monitor, so you can leave your power worries behind and focus on what matters. With unrivalled accuracy, Bluetooth connectivity range and easy monitoring, the Smart Battery Monitor can be trusted to give you the right information, wherever your adventure takes you.

Six dedicated tank level sensor inputs and two ambient temperature inputs make the Prime RedVision System the all-seeing eye of your power set up.

CONTROL

The Prime RedVision system allows complete control of multiple on-board devices including lights, fans, fridges, inverters, and pumps.

Its 10 output channels include 5x 30A and 5x 10A channels, perfect for controlling a mix of low and high-powered devices. With a max current of 80A, you’ll never be limited to how many devices you can run at once. A dedicated inverter channel brings the total number of channels to 11.

Take control outside with the connected Bluetooth app or use the included RedVision display.

AUTOMATION

Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.

GREEN POWER PRIORITY ™

The Manager30 is designed to charge secondary batteries from multiple sources simultaneously. With REDARC’s Green Power Priority™ built-in, the Manager30 will prioritise solar input when available, minimising the load on your alternator and saving fuel. This means your gear can run without skipping a beat whether you’re driving down the highway, parked up at camping or soaking up the sun.

The Manager30’s built-in Maximum Power Point Tracking (MPPT) solar regulator allows the Manager to deliver the maximum amount of solar power from portable solar panels, even during low light conditions.
