💡 ROADVISION RWL4196F LED WORK LIGHT – FLOOD BEAM

7400 Lumens • 16 × 6W LEDs • Flood Beam • 10–30V DC • Deutsch Connection

The Roadvision RWL4196F is a compact high-output LED work light designed for work vehicles, machinery and demanding outdoor applications requiring broad flood-beam illumination.

Producing up to 7400 lumens, the RWL4196F combines thermal management technology, multi-volt operation and a lightweight die-cast aluminium housing with a durable polycarbonate lens.

⚡ KEY FEATURES

💡 7400 Lumen Output
Provides strong LED illumination for work areas, machinery and vehicle applications.

🔦 Flood Beam
Designed to spread light across a broad working area rather than concentrate it into a narrow long-distance beam.

⚙️ 16 × 6W LEDs
Uses sixteen high-output LEDs for powerful work-light performance.

🌡️ Thermal Management Technology
Automatically adjusts performance according to environmental temperature to help balance light output and overheating protection.

🔋 Multi-Volt 10–30V DC
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

🛡️ Aluminium Housing & Polycarbonate Lens
Lightweight die-cast aluminium construction designed for demanding operating environments.

🔌 2-Pin Deutsch Plug
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Features over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible electrical systems.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

📋 TECHNICAL SPECIFICATIONS

Part Number: RWL4196F

Description: LED Work Lamp – Square Flood Beam

Beam Pattern: Flood

Maximum Lumens: 7400lm

Maximum Power: 94W

LEDs: 16 × 6W

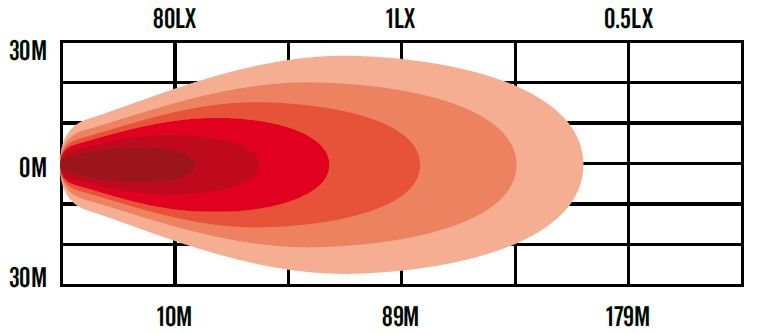

Maximum Lux @ 10m: 80lx

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 7.7A

Lens: Polycarbonate

Housing: Aluminium

Wiring: 2-Pin Deutsch Plug

LED Lifespan: Up to 50,000 Hours

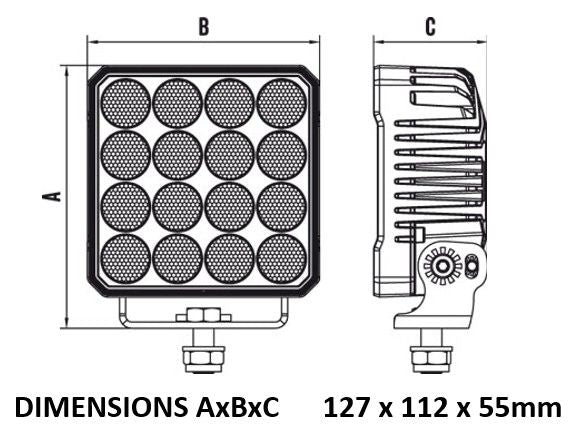

Dimensions: Approximately 127 × 112 × 55mm

Warranty: 5 Years

🚜 IDEAL FOR

• 🚜 Agricultural machinery
• 🚚 Trucks & heavy vehicles
• 🏗️ Construction equipment
• 🛻 4WDs & work utes
• 🧰 Service vehicles
• 🌙 Work-area lighting

❓ QUICK FAQ

How bright is the RWL4196F?

The supplied specification lists a maximum output of 7400 lumens and 80 lux at 10 metres.

Is it a spot or flood beam?

It uses a flood beam designed to illuminate a broad working area.

Can it run on 12V and 24V systems?

Yes. Its specified operating range is 10–30V DC.

What connector does it use?

The lamp uses a 2-pin Deutsch plug.

💡 COMPACT FLOOD LIGHTING WITH SERIOUS OUTPUT

With up to 7400 lumens, thermal management technology, a compact aluminium housing and multi-volt operation, the Roadvision RWL4196F delivers strong broad-area lighting for demanding work vehicle and machinery applications.
