RWL5246S 45W LED Work Light | Spot Beam 3756lm

💡 ROADVISION RWL5246S 45W LED WORK LIGHT – SPOT BEAM

3756 Lumens • 45W • 9 × 5W Osram LEDs • Spot Beam • 10–30V DC

The Roadvision RWL5246S is a compact 45W LED work light designed to provide concentrated spot-beam illumination for work vehicles, machinery and demanding outdoor applications.

Producing up to 3756 lumens and an impressive 1340 lux at 10 metres, it combines 9 Osram LEDs with thermal management technology, multi-volt operation and a lightweight die-cast aluminium housing.

⚡ KEY FEATURES

🔦 Focused Spot Beam
Designed to concentrate light further ahead, making it suitable for applications where longer-distance illumination is more important than broad area coverage.

💡 3756 Lumen Output
Provides strong LED light output from a compact work-light housing.

🎯 1340 Lux @ 10m
High centre-beam intensity provides focused illumination for spotting objects and work areas further ahead.

⚙️ 9 × 5W Osram LEDs
Uses nine 5W Osram LEDs with a maximum lamp power of 45W.

🌡️ Thermal Management Technology
Helps manage operating temperature to support reliable LED performance.

🔋 Multi-Volt 10–30V DC
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

🛡️ Aluminium Housing & Polycarbonate Lens
Lightweight die-cast aluminium construction with a durable polycarbonate lens.

🔌 2-Pin Deutsch Plug
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Includes over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible vehicle electrical systems.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

📋 TECHNICAL SPECIFICATIONS

Part Number: RWL5246S

Description: LED Work Lamp – 45W Square Spot Beam

Beam Type: Spot

Maximum Lumens: 3756lm

Maximum Power: 45W

LEDs: 9 × 5W Osram

Lux @ 10m: 1340lx

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 3.8A

Lens: Polycarbonate

Housing: Aluminium

Wiring: 2-Pin Deutsch Plug

LED Lifespan: Up to 50,000 Hours

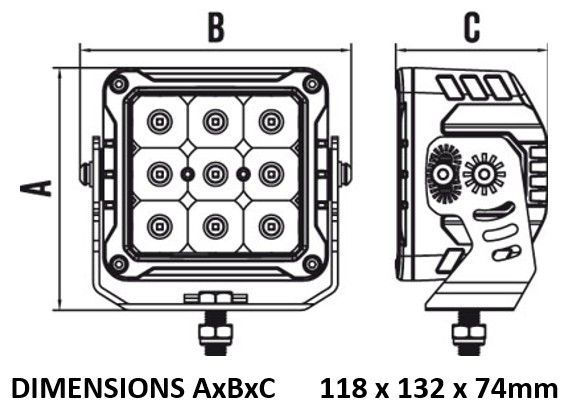

Dimensions: Approximately 118 × 132 × 74mm

Warranty: 5 Years

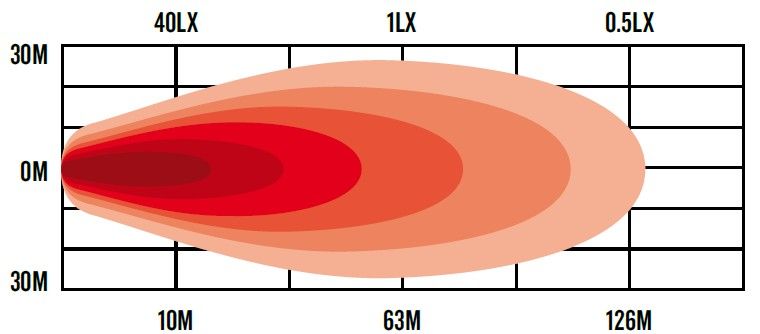

🎯 SPOT BEAM PERFORMANCE

The RWL5246S uses a focused spot beam rather than a broad flood pattern, making it better suited to applications requiring concentrated forward illumination.

Roadvision describes the RWL52 Series as waterproof; however, no specific IP rating is provided in the supplied specifications.

🚜 IDEAL FOR

• 🚜 Agricultural machinery
• 🚚 Trucks & heavy vehicles
• 🛻 4WDs & work utes
• 🏗️ Construction equipment
• 🧰 Service vehicles
• 🔦 Forward-facing work lighting

❓ QUICK FAQ

Is the RWL5246S a spot or flood beam?

It uses a spot beam designed to concentrate light further ahead.

How bright is it?

The supplied specification lists a maximum output of 3756 lumens and 1340 lux at 10 metres.

Can it run on 12V and 24V systems?

Yes. Its specified operating range is 10–30V DC.

What connector does it use?

The RWL5246S uses a 2-pin Deutsch plug.

💡 COMPACT SPOT LIGHTING WITH SERIOUS BEAM INTENSITY

With 3756 lumens, 1340 lux at 10 metres, 9 Osram LEDs and a compact aluminium housing, the Roadvision RWL5246S delivers focused spot-beam lighting for demanding vehicle and machinery applications.
