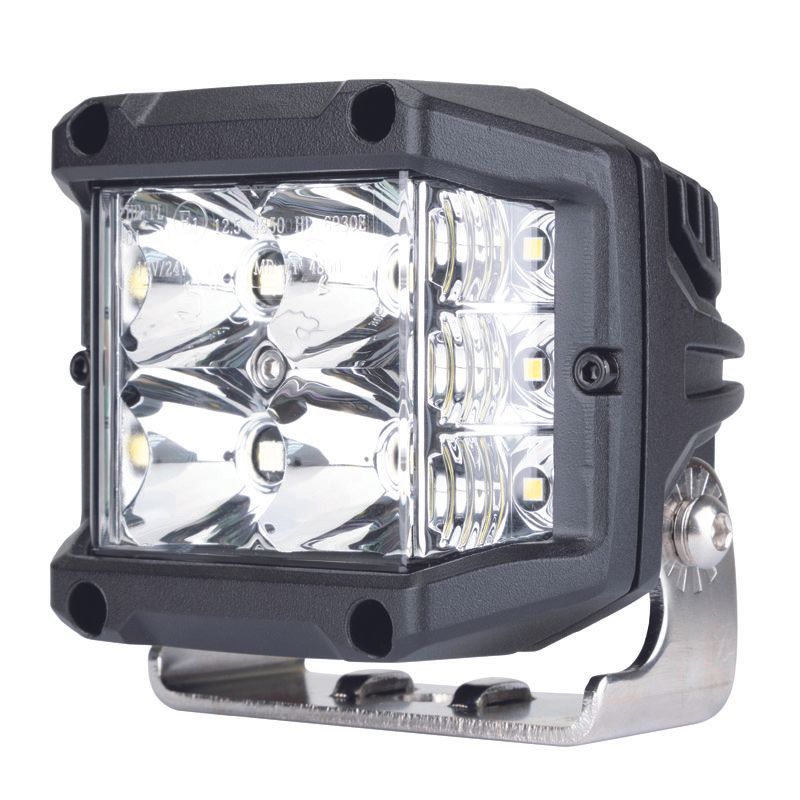

RWL7429C 29W Sidewinder LED Work Light | Combo Beam

💡 ROADVISION RWL7429C SIDEWINDER 29W LED WORK LIGHT – COMBO BEAM

2100 Lumens • 4 × 5W Spot LEDs + 6 Side Flood LEDs • 115° Spread • IP67 • 10–30V DC

The Roadvision RWL7429C Sidewinder combines long-range spot lighting and wide side illumination in one compact 29W LED work light.

Using 4 × 5W Osram P8 forward LEDs together with 6 × 1.6W side-angled Osram LEDs, it delivers a strong combination beam with a 115° flood spread and an effective output of 2100 lumens.

⚡ KEY FEATURES

🎯 Spot + Flood Combo Beam
Combines concentrated forward lighting with wide side illumination, giving you useful distance and broad work-area coverage from a single lamp.

↔️ 115° Sidewinder Flood Spread
Six dedicated side-angled LEDs spread light across a wide area around the main forward beam.

💡 2100 Lumen Effective Output
Provides strong work lighting for vehicles, machinery and utility applications.

⚙️ Osram Hi-Lux LED Technology
Uses 4 × 5W Osram P8 forward LEDs plus 6 × 1.6W Osram side LEDs to create the Sidewinder combination beam.

🌡️ Thermal Management Technology
Designed to manage operating temperature and support reliable LED performance in demanding conditions.

🔋 Multi-Volt 10–30V DC
Suitable for compatible 12V and 24V vehicle and machinery electrical systems.

💧 IP67 Water & Dust Protection
Designed for tough outdoor applications where exposure to dust, water and harsh conditions is expected.

🛡️ Die-Cast Aluminium Housing
Lightweight, durable construction paired with a tough polycarbonate lens.

🔌 2-Pin Deutsch Plug
Provides a robust electrical connection for vehicle and machinery installations.

⚡ Electrical Protection
Features over-voltage, under-voltage and reverse-polarity protection.

📻 EMI / EMC Approved
Designed to minimise radio-frequency interference in compatible vehicle electrical systems.

🕒 Up to 50,000 Hour LED Lifespan
Solid-state LED technology is designed for long service life.

🛡️ 5 Year Warranty
Backed by Roadvision's supplied 5-year warranty.

🔦 SIDEWINDER COMBO BEAM

The RWL7429C is designed to provide both forward reach and broad surrounding illumination without installing separate spot and flood lights.

• 🎯 4 × 5W Osram P8 LEDs provide the main forward beam
• ↔️ 6 × 1.6W side-angled LEDs create the 115° flood spread
• 💡 2100 lumens effective light output

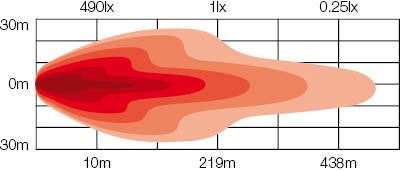

• 🔭 490 lux measured at 10 metres

📋 TECHNICAL SPECIFICATIONS

Part Number: RWL7429C

Description: Sidewinder LED Work Lamp – 29W Square

Beam Type: Combo Beam

Effective Light Output: 2100lm

Power: 29W

Primary Spot LEDs: 4 × 5W Osram P8

Side Flood LEDs: 6 × 1.6W Osram

Side Flood Spread: 115°

Lux @ 10m: 490lx

Input Voltage: 10–30V DC

Current Draw @ 13.8V: 1.88A

Protection Rating: IP67

Housing: Die-Cast Aluminium

Lens: Polycarbonate

Wiring: 2-Pin Deutsch Plug

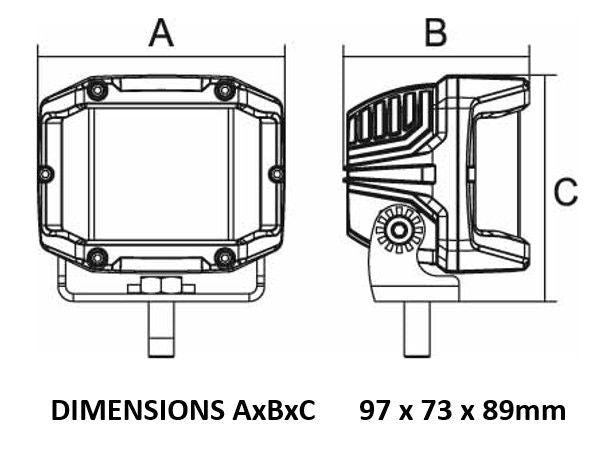

Dimensions: Approximately 97 × 73 × 89mm

LED Lifespan: Up to 50,000 Hours

Warranty: 5 Years

🚜 IDEAL FOR

• 🛻 Work utes & service vehicles
• 🚜 Agricultural machinery
• 🚚 Trucks & commercial vehicles
• 🏗️ Construction equipment
• 🚙 4WD & touring vehicles
• 🧰 Utility & maintenance vehicles
• 🌙 Night-time work areas

❓ QUICK FAQ

What makes the RWL7429C a combo beam?

It uses four forward-facing Osram P8 LEDs for spot lighting plus six side-angled LEDs that provide a wide 115° flood spread.

How bright is the RWL7429C?

Roadvision specifies an effective output of 2100 lumens and 490 lux at 10 metres.

Can it operate on both 12V and 24V systems?

Yes. The specified operating voltage range is 10–30V DC.

Is it suitable for outdoor use?

Yes. The lamp is rated IP67 for dust-tight protection and protection against temporary immersion under the applicable test conditions.

💡 LONG-RANGE SPOT + 115° SIDE LIGHTING IN ONE COMPACT WORK LAMP

With 2100 lumens, 490 lux at 10 metres, a 115° Sidewinder flood spread and rugged IP67 construction, the Roadvision RWL7429C delivers excellent all-round lighting for vehicles and machinery that need both forward reach and broad surrounding coverage.
