🔋 Thumper Lithium 150Ah Standard LiFePO4 Battery
12.8V 150Ah LiFePO4 deep cycle battery with Bluetooth monitoring, 150A BMS, 1,920Wh capacity, BMS reset switch, flexible mounting, and 3-year warranty.
The Thumper Lithium 150Ah Standard LiFePO4 Battery is a sealed lithium deep cycle battery designed for caravans, 4WDs, RVs, camping setups, marine applications, solar systems, and auxiliary power installations.
Built with prismatic LiFePO4 cells, the TLS-150 delivers 150Ah / 1,920Wh of usable lithium power while weighing less than half of a traditional AGM battery. It is fully sealed and can be mounted on any angle, making it easy to install in compact or custom 12V setups.
Equipped with an internal Battery Management System, Bluetooth monitoring through the Thumper App, and a built-in BMS reset switch, this battery provides safe charging, controlled discharging, and reliable protection for off-grid and touring power systems.
✅ Key Benefits
🔋 150Ah / 1,920Wh Lithium Capacity
Provides dependable deep cycle power for fridges, lights, inverters, accessories, and off-grid systems.
⚡ 150A BMS Capacity
Supports up to 150A continuous discharge, equal to approximately 1800W of load capacity.
📱 Bluetooth Monitoring via Thumper App
Monitor battery capacity, voltage, charge current, discharge current, remaining capacity, and more from your smartphone.
🧠 Internal Battery Management System
Protects the battery against over temperature, under voltage, over voltage, excessive discharge, and internal short circuit faults.
🔄 BMS Reset Switch Fitted
Allows the battery to be reactivated if the BMS shuts down due to excessive discharge or overload.
⚖️ Lightweight Lithium Design
Less than half the weight of a traditional lead acid battery while still providing heavy-duty deep cycle performance.
🔌 Higher Voltage for Longer Runtime
Maintains terminal voltage higher throughout the discharge cycle for improved appliance runtime.
🧰 Flexible Mounting
Fully sealed construction allows the battery to be mounted on any side.
🔗 Parallel & Series Compatible
Supports up to 4 batteries in parallel and up to 4 batteries in series / 48V maximum.
🔋 Lithium or AGM Charger Compatible
Designed to charge from suitable lithium or AGM charging profiles.
🛠️ 3-Year Warranty
Backed by a 3-year warranty from date of purchase.
🔧 Suitable Applications
🚐 Caravan lithium battery systems
🚙 4WD auxiliary power setups
🏕️ Camping and touring systems
🚍 Motorhomes and RVs
🛥️ Marine auxiliary power
☀️ Solar battery storage
🧊 Fridges and freezers
💡 Lighting systems
⚡ Inverter systems up to 1800W per battery
🔋 Deep cycle auxiliary power systems
📱 Bluetooth App Monitoring
The Thumper Batteries App is available as a free download and allows the TLS-150 battery to be monitored from your smartphone.
| Bluetooth App Feature | Details |
|---|---|
| Battery Capacity | View available battery capacity |
| Battery Voltage | Monitor live battery voltage |
| Percentage Remaining | View remaining battery level from 0–100% |
| Charging Current | Monitor charge input current |
| Discharge Current | Monitor load output current |
| Battery Output Disconnect | Remotely disconnect discharge loads |
| Battery Charge Disconnect | Remotely disconnect charging inputs |
| Auto Cell Calibration | Supports automatic cell calibration |
| Auto Cell Protection | Helps protect internal cells |
| Estimated Time Remaining | View estimated runtime |
| Estimated Charging Time | View estimated charge time |
| Ah Capacity Remaining | Monitor remaining amp hour capacity |
| Total Cell Balancing | View cell balancing data |
| High Cell Voltage | Monitor high cell voltage condition |
| Low Cell Voltage | Monitor low cell voltage condition |
| Cell Voltage Difference | View cell voltage variation |
| Dual Battery Sensor Monitoring | Supports dual battery sensor monitoring |
| Parallel Link Reprogramming | Ability to parallel link and reprogram Ah capacity, passcode required |
Some advanced app features may require a passcode.
🧠 Internal Battery Management System
The BMS is the internal protection system that manages the battery’s safe operation.
| BMS Function | Details |
|---|---|
| Discharge Capacity Control | Manages maximum discharge load |
| Charge Input Control | Manages accepted charge input |
| Operating Temperature Monitoring | Monitors safe battery temperature |
| Low Voltage Disconnect | Helps prevent excessive discharge |
| Reset Voltage Control | Allows recovery after protection events |
| Bluetooth Capability | Enables app-based monitoring |
| Protection Parameters | Controls battery safety limits |
The BMS helps protect the battery from unsafe charging, discharging, overload, and fault conditions.

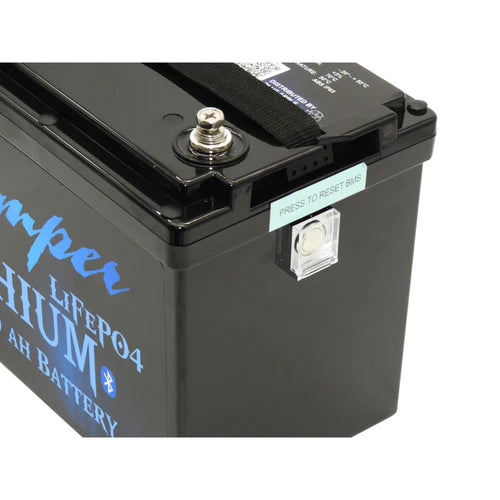

🔘 BMS Reset Switch
In most cases, the BMS will reset when a battery charger is connected. If it does not reset, the built-in BMS reset switch can help wake the battery after excessive discharge or overload.
How to Use the BMS Reset Switch
| Step | Action |
|---|---|
| 1 | Connect the battery to a 240V battery charger |
| 2 | Turn the charger ON |
| 3 | Press and hold the BMS reset switch for approximately 30–90 seconds |
| 4 | Once the charger starts charging normally, release the switch |
| 5 | Allow the battery to charge normally |
Some chargers require battery voltage to activate charging. If available, use power supply mode to activate the BMS, then switch back to battery charger mode after resetting.
📏 Technical Specifications
| Specification | Details |
|---|---|
| Product | Thumper Lithium 150Ah Standard LiFePO4 Battery |
| Model No. | TLS-150 |
| Battery Type | LiFePO4 Lithium Deep Cycle |
| Cell Type / Chemistry | Prismatic / LiFePO4 |
| Nominal Voltage | 12.8V |
| Rated Capacity | 150Ah |
| Energy Capacity | 1,920Wh |
| Bluetooth Connectivity | Yes, via Thumper App |
| BMS Capacity | 150A |
| BMS Upgrade Option | No |
| Parallel Connection | Maximum 4 batteries |
| Series Connection | Maximum 4 batteries / up to 48V |
| Self Discharge Per Month | ≤3% |
| Discharge Capacity | 97%–100% |
| Warranty | 3 years from date of purchase |

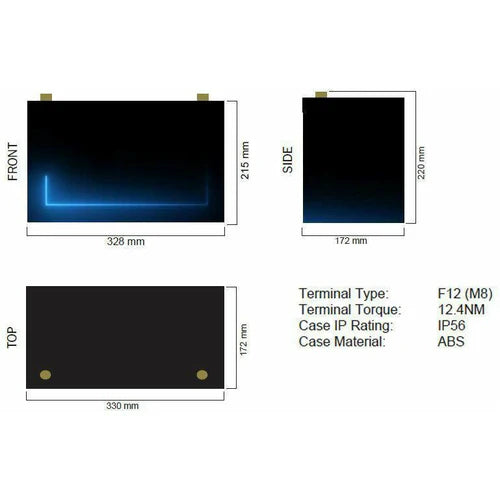

📐 Dimensions & Weight
| Measurement | Details |
|---|---|
| Length | 328mm |
| Width | 172mm |
| Height | 220mm |
| Weight | 13.55kg |
🌡️ Operating Temperature Range
| Operating Condition | Rating |
|---|---|
| BMS High Temperature Cut-Out | 70°C |
| BMS Reconnect Temperature | 50°C |
| Discharge Temperature | -10°C to 60°C |
| Charge Temperature | -20°C to 50°C |
| Storage Temperature | -5°C to 35°C |
🔌 Charging Specifications
| Charging Specification | Details |
|---|---|
| Recommended Charge Current | 10A – 50A |
| Maximum Charge Current | 100A |
| Recommended Charging Voltage | 14.2V – 14.6V |
| Recommended Charger Type | Lithium charger |
| Compatible Charger Settings | Lithium or AGM setting |
The battery is designed to charge from systems compatible with lithium or AGM profiles. A dedicated lithium charger is recommended for best performance and battery life.
⚡ Discharge Specifications
| Discharge Specification | Details |
|---|---|
| Maximum Continuous Discharge Current | 150A |
| Approximate Continuous Load Capacity | 1800W |
| Peak Discharge Current | 300A for 1–3 seconds |
| BMS Current Cut-Off | >160A for 10 seconds |
| BMS Current Cut-Off | >170A for 3 seconds |
| BMS Current Cut-Off | >200A for 1 second |
| BMS Voltage Cut-Off | 10.0V |
| BMS Voltage Reconnect | >10.8V |
🔁 Cycle Life
| Cycle Rating | Details |
|---|---|
| Cycle Capacity @ 100% DOD | 4,000 cycles |
| Cycle Capacity @ 80% DOD | 5,000 cycles |
The Thumper Lithium Standard model is also rated at over 3,000 cycles under standard lithium cycle expectations.
⚡ Inverter Guide
The Thumper Lithium 150Ah battery has a continuous discharge rating of 150A, equal to approximately 1800W.
| Inverter Size | Recommended Battery Setup |
|---|---|
| 150W – 1800W inverter | 1 x TLS-150 battery |
| 150W – 3600W inverter | 2 x TLS-150 batteries (300Ah 300A BMS Combined) |
| 150W – 5400W inverter | 3 x TLS-150 batteries (450Ah 450A BMS Combined) |
Always confirm inverter surge rating, cable size, fuse protection, battery configuration, and installation suitability before use.
❓ What Happens If the 150A Discharge Rating Is Exceeded?
The Thumper Lithium battery is protected internally by a Battery Management System.
For example, if a 2000W inverter draws approximately 166A, the TLS-150 will allow operation up to approximately 1800W / 150A. If the load exceeds the discharge rating, the BMS will disconnect and stop providing power to protect the battery.
Once the excessive load is removed, the BMS will normally reconnect within a few seconds and the battery will be ready to use again.
🔋 Lithium Voltage Guide
Voltage alone is not the most accurate way to monitor lithium battery state of charge, but it can provide a rough indication.
| Approximate Voltage | Approximate State of Charge |
|---|---|
| 13.4V | 100% |
| 13.2V | 70% |
| 13.0V | 30% |
| 12.0V | 10% |
A lithium battery can show only a small voltage change while the usable capacity changes significantly. Bluetooth monitoring is recommended for more accurate battery information.
☀️ Solar Charging Note
The TLS-150 can be charged from a compatible portable solar setup where the solar regulator supports lithium or AGM battery charging profiles.
The battery should not be connected directly to an unregulated solar panel, as the internal BMS will disconnect any charge input that exceeds 15V.
⚠️ Important Usage Notes
Please confirm your required battery capacity, charging system, inverter size, cable sizing, fuse protection, BMS rating, mounting space, solar regulator compatibility, parallel wiring, series wiring, and installation requirements before purchase or installation.
Important:
✅ Designed for deep cycle auxiliary power systems
✅ Suitable for fridges, lighting, inverters, and accessories
✅ Fully sealed and can be mounted on any side
✅ Bluetooth connectivity via Thumper App
✅ BMS reset switch fitted
✅ Parallel connection supported up to 4 batteries / 600Ah maximum
✅ Series connection supported up to 4 batteries / 48V maximum
✅ Lithium charger recommended for best results
✅ AGM charging profile compatibility supported
⛔ Not designed for engine starting
⛔ Not designed for under-bonnet installation
⛔ BMS upgrade is not available on this standard model
⛔ Do not connect directly to an unregulated solar panel
🔎 Why Choose the Thumper Lithium 150Ah TLS-150?
The Thumper Lithium 150Ah Standard LiFePO4 Battery is designed for users who need reliable lithium deep cycle performance, Bluetooth monitoring, flexible mounting, and strong continuous discharge capability.
With 150Ah capacity, 1,920Wh of energy, a 150A BMS, up to 1800W load support, BMS reset function, lithium cycle performance, and the ability to connect up to 4 batteries in parallel or series, it is a practical option for caravan, 4WD, marine, RV, and off-grid battery systems.
📦 What’s Included
🔋 1 x Thumper Lithium 150Ah Standard LiFePO4 Battery — TLS-150
🛒 Order with Confidence
Choose the Thumper Lithium 150Ah Standard LiFePO4 Battery for dependable lithium power, Bluetooth monitoring, BMS protection, strong discharge capability, flexible mounting, and reliable performance for touring, auxiliary, and off-grid power systems.
