eArc 175W Flexible Solar Panel | 1504 x 673mm Under-Mount Junction Box

☀️ SUNMAN eARC 175W FLEXIBLE SOLAR PANEL – JUNCTION BOX UNDERNEATH

175W Mono-PERC • 19.5V Vmp • Only 2mm Thick • Approx. 3.3kg • 1504 × 673mm • IP68 Junction Box

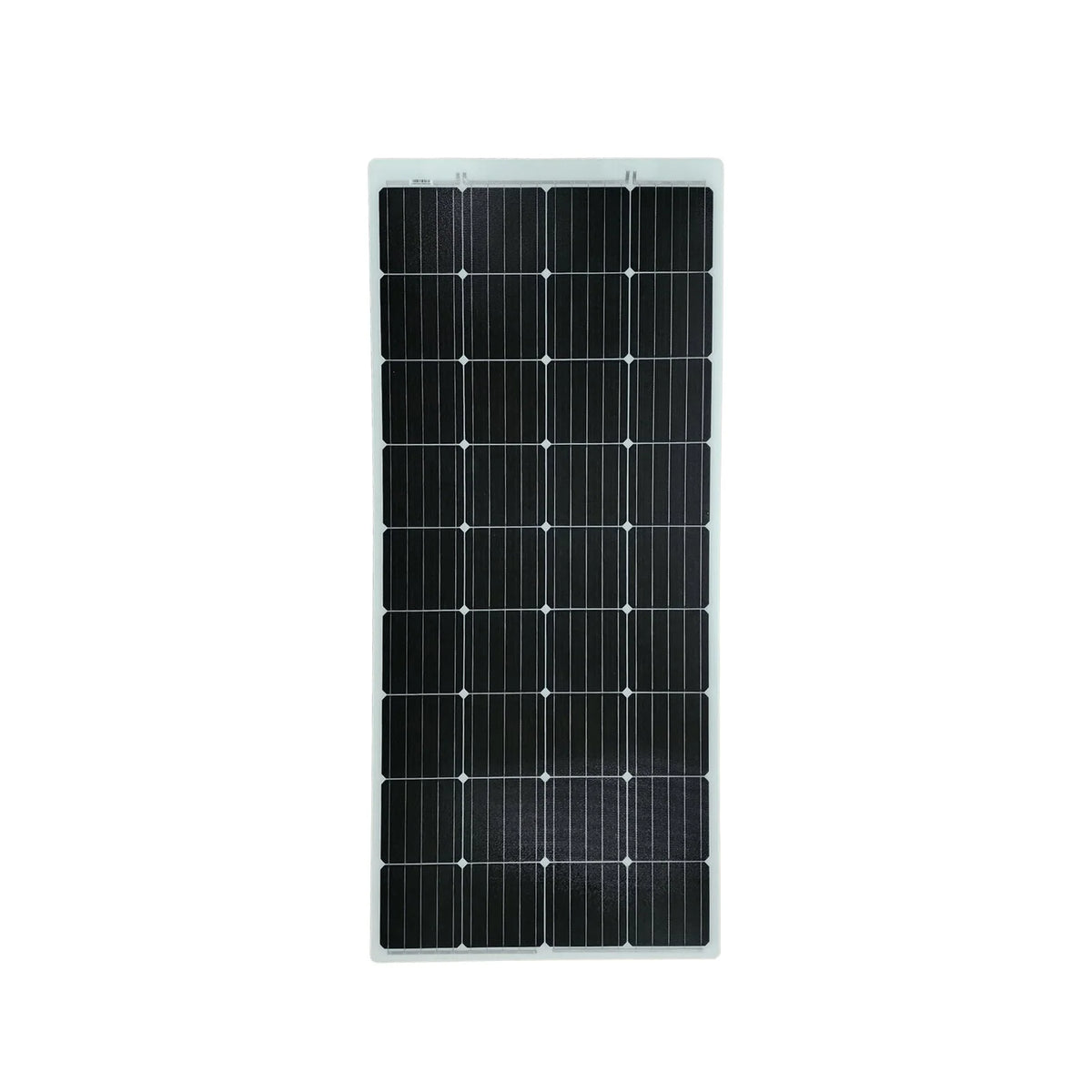

The Sunman eArc 175W Flexible Solar Panel combines high-efficiency Mono-PERC solar cells with an exceptionally lightweight, low-profile construction designed for applications where conventional framed glass panels can be too heavy or bulky.

Measuring approximately 1504 × 673 × 2mm and weighing only 3.3kg, it is particularly suited to caravans, motorhomes, RVs, yachts, buses, trains and other mobile or weight-sensitive solar installations.

This version features the junction box mounted underneath the panel, helping provide a clean installation where cable routing and available mounting space allow.

---

⭐ KEY FEATURES

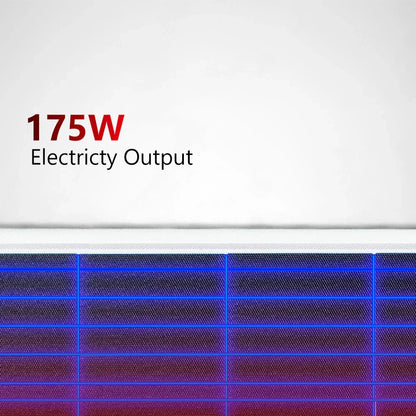

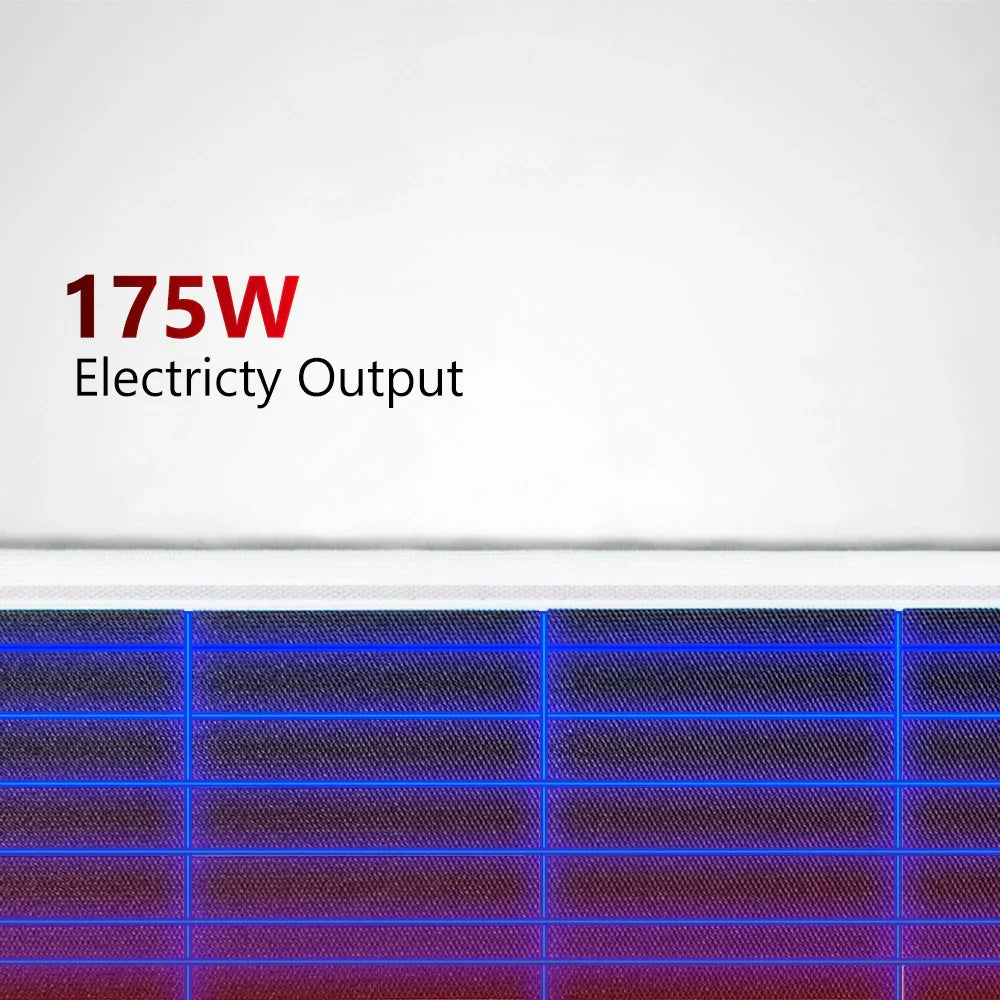

☀️ 175W Solar Output
Provides up to 175W of rated solar output in a compact, lightweight panel.

🔋 19.5V Maximum Power Voltage
With a Vmp of 19.5V, the panel is well suited to compatible 12V solar charging systems using an appropriate solar regulator.

🪶 Approx. 3.3kg
Considerably lighter than many conventional framed glass solar panels, making it attractive for caravans, motorhomes and other weight-conscious applications.

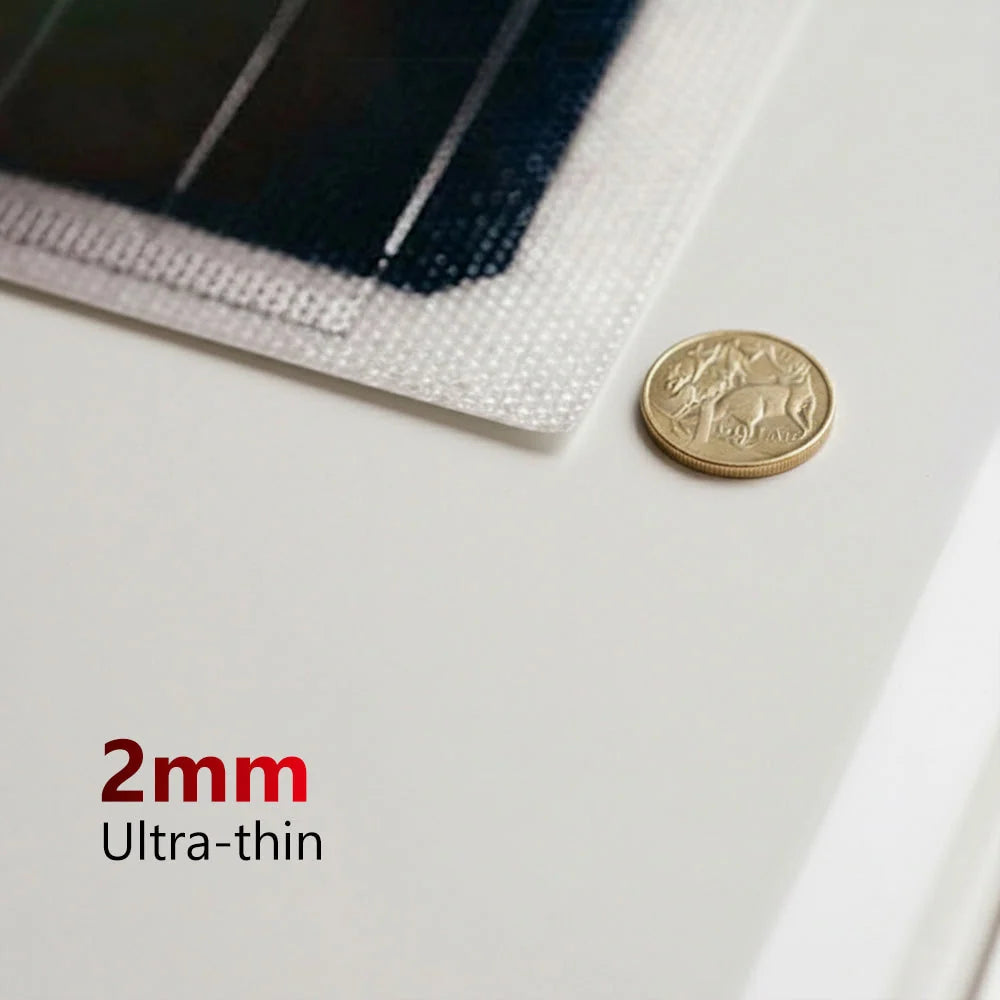

📏 Only 2mm Thick
The ultra-low-profile construction helps minimise overall installation height.

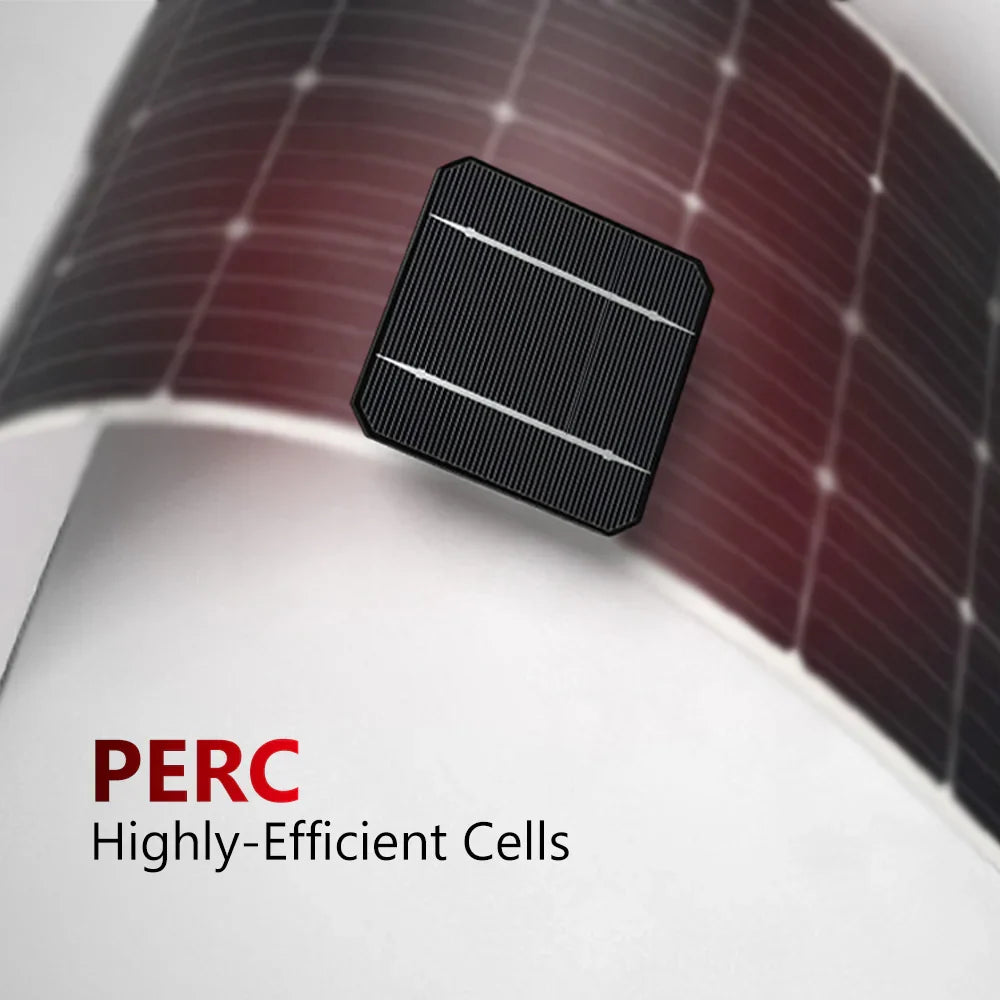

🔋 Mono-PERC Solar Cells
Uses high-efficiency monocrystalline PERC cell technology for effective energy production from a compact panel area.

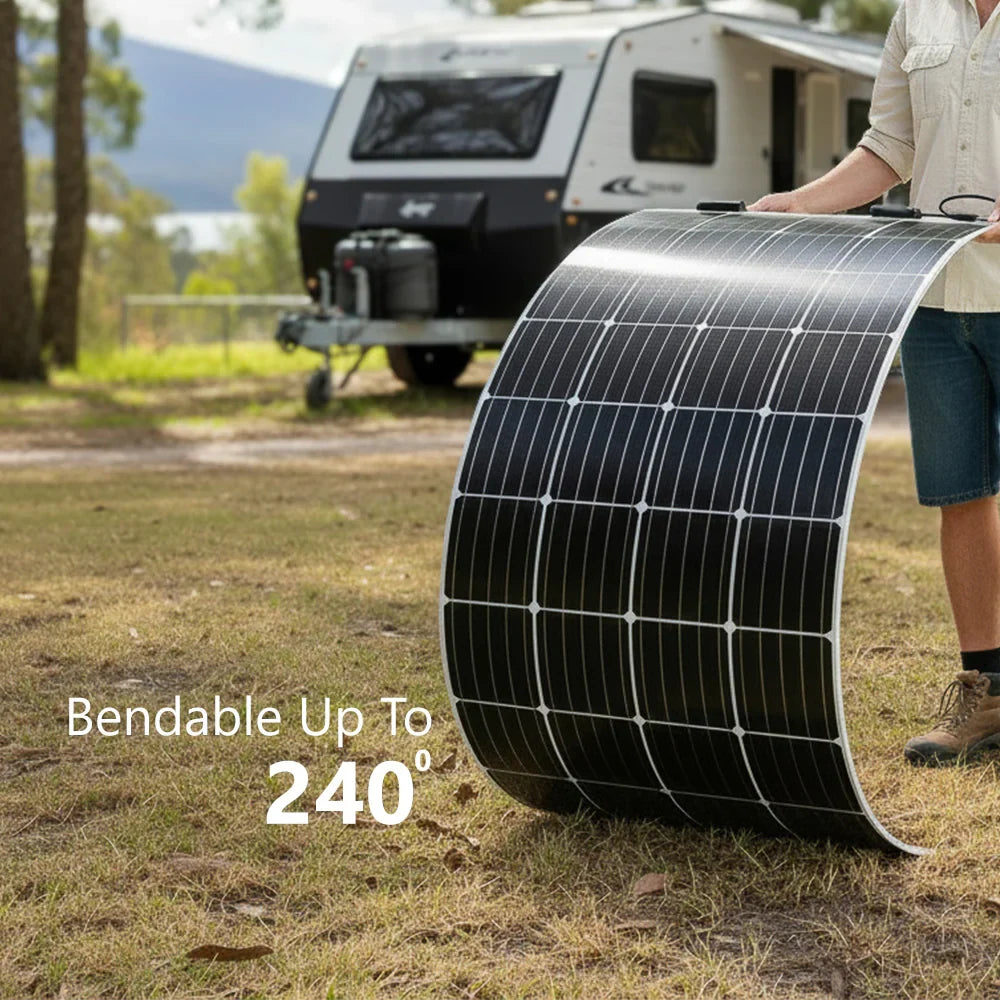

↪️ Flexible Construction
The eArc construction allows installation across suitable surfaces where a conventional rigid framed solar panel may not be practical.

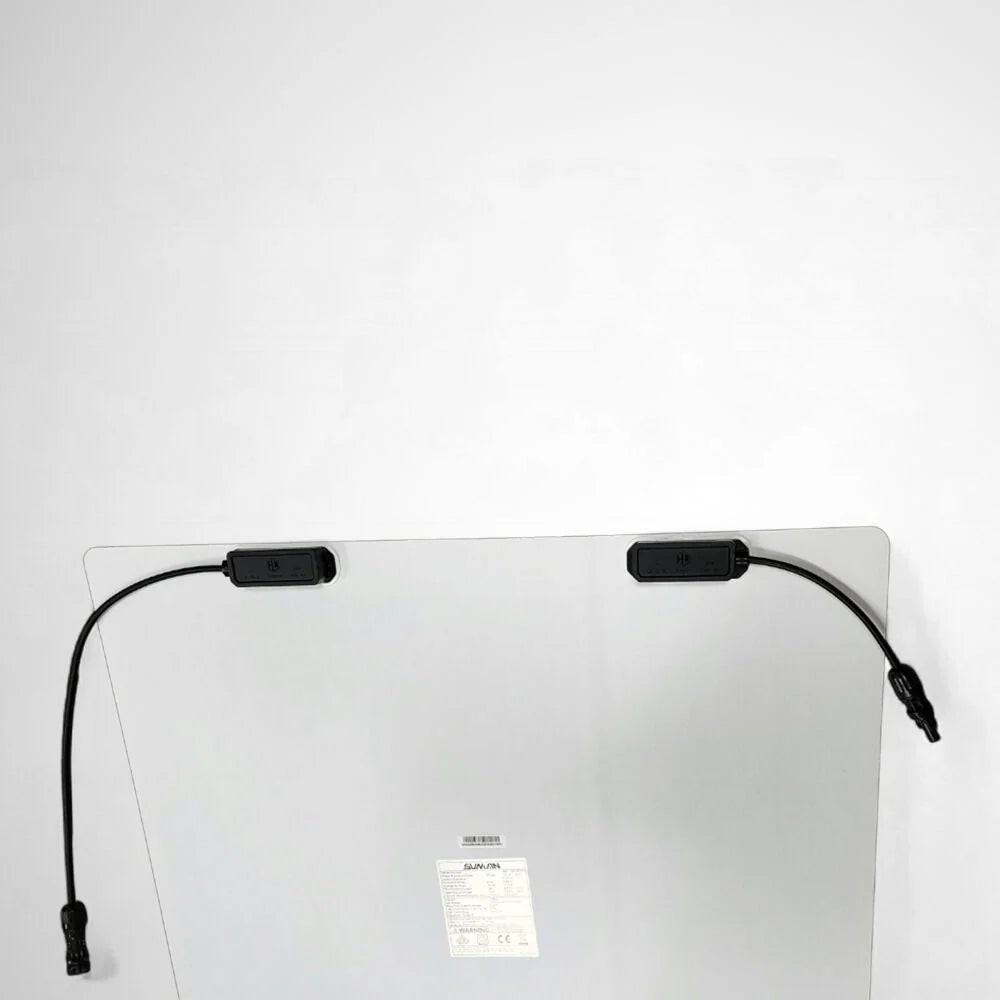

🔌 Under-Mounted Junction Box
The junction box is positioned underneath the panel for installations where hidden or underside cable routing is preferred.

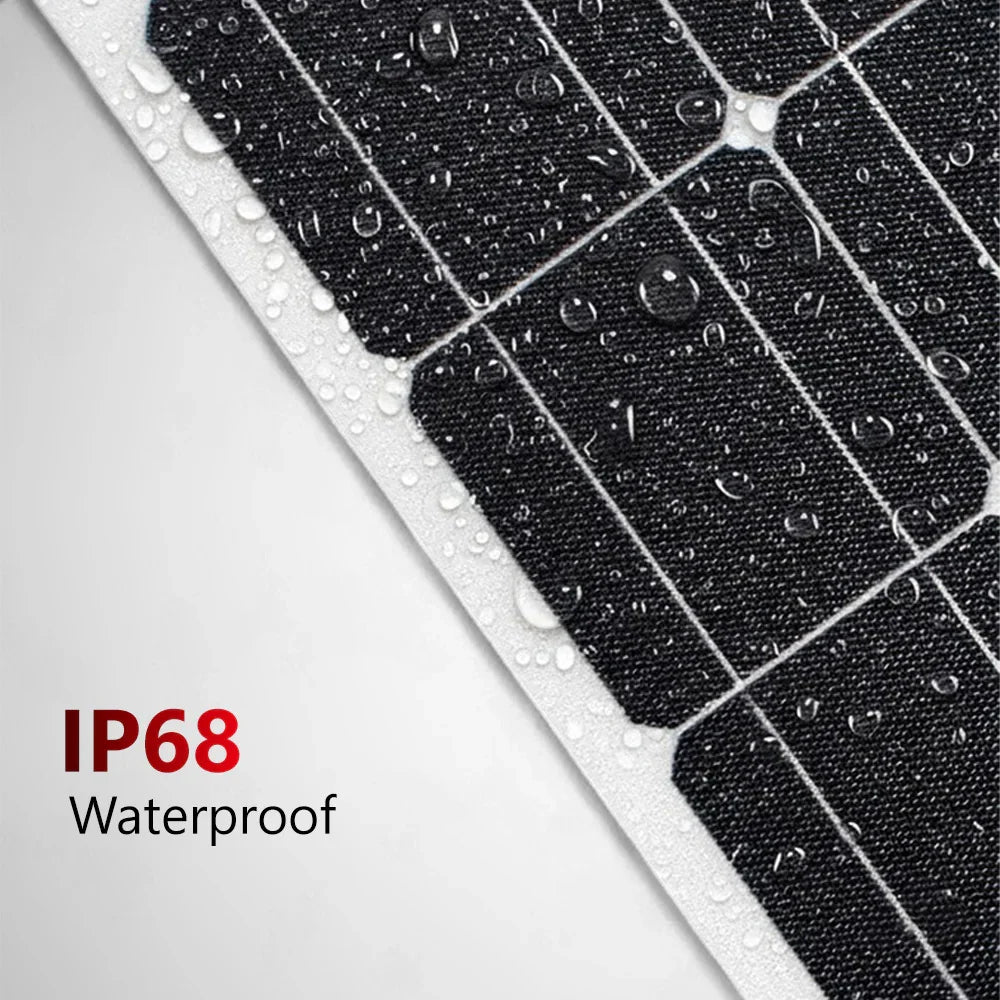

💧 IP68 Junction Box
The supplied specifications list the junction box as IP68 rated.

🏕️ Designed for Mobile Applications
Suitable for applications including caravans, motorhomes, yachts, buses and other mobile installations when installed in accordance with Sunman's mounting requirements.

---

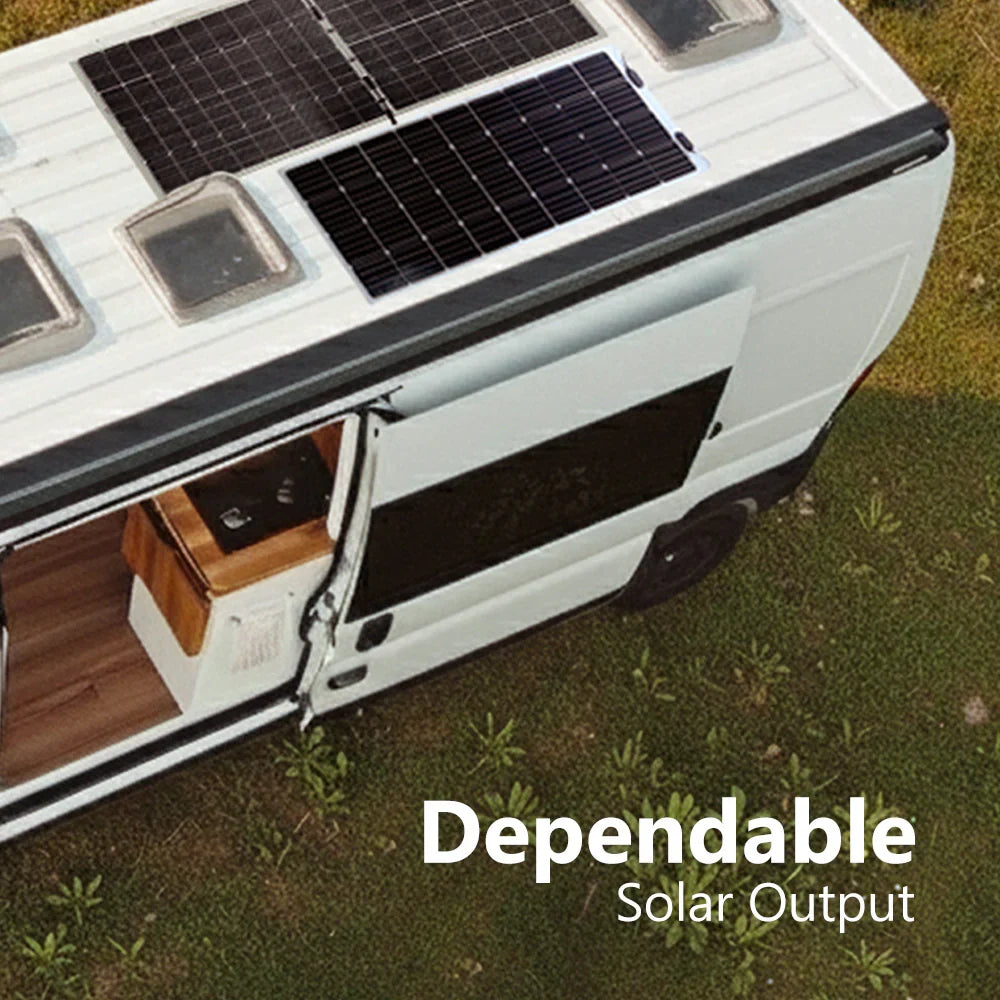

🚐 IDEAL FOR CARAVANS, MOTORHOMES & MOBILE SOLAR

The low weight and exceptionally thin profile make the Sunman eArc particularly useful where roof loading and installation height need to be kept to a minimum.

Suitable applications can include:

• Caravans
• Motorhomes & RVs
• Camper trailers
• 4WD & touring vehicles
• Yachts & marine applications
• Buses
• Trains
• Suitable fixed solar installations

---

🪶 LIGHTWEIGHT eARC CONSTRUCTION

Sunman's eArc technology replaces the conventional heavy glass and aluminium frame construction used by many rigid solar panels with a lightweight composite design.

The supplied product information describes the composite material as being similar to materials used in aircraft windows, providing a combination of low weight and durability without requiring a conventional rigid glass panel construction.

---

📊 TECHNICAL SPECIFICATIONS

Model: SMF175M-4X09DW

Rated Power: 175W

Solar Cell Type: Mono-PERC

Solar Cells: 36 cells – 4 × 9 configuration

Maximum Power Voltage (Vmp): 19.5V

Maximum Power Current (Imp): 8.98A

Open-Circuit Voltage (Voc): 23.9V

Short-Circuit Current (Isc): 9.5A

Power Tolerance: 0 / +5W

Operating Temperature: -40°C to +85°C

Maximum System Voltage: 1000V DC (IEC)

Maximum Series Fuse Rating: 20A

Application Class: Class A

Backsheet: White

Junction Box Rating: IP68

Bypass Diode: 1 per junction box

Output Cable: 4.0mm² photovoltaic cable

Positive Cable Length: Approx. 150mm

Negative Cable Length: Approx. 450mm

Connector: MC4 Compatible

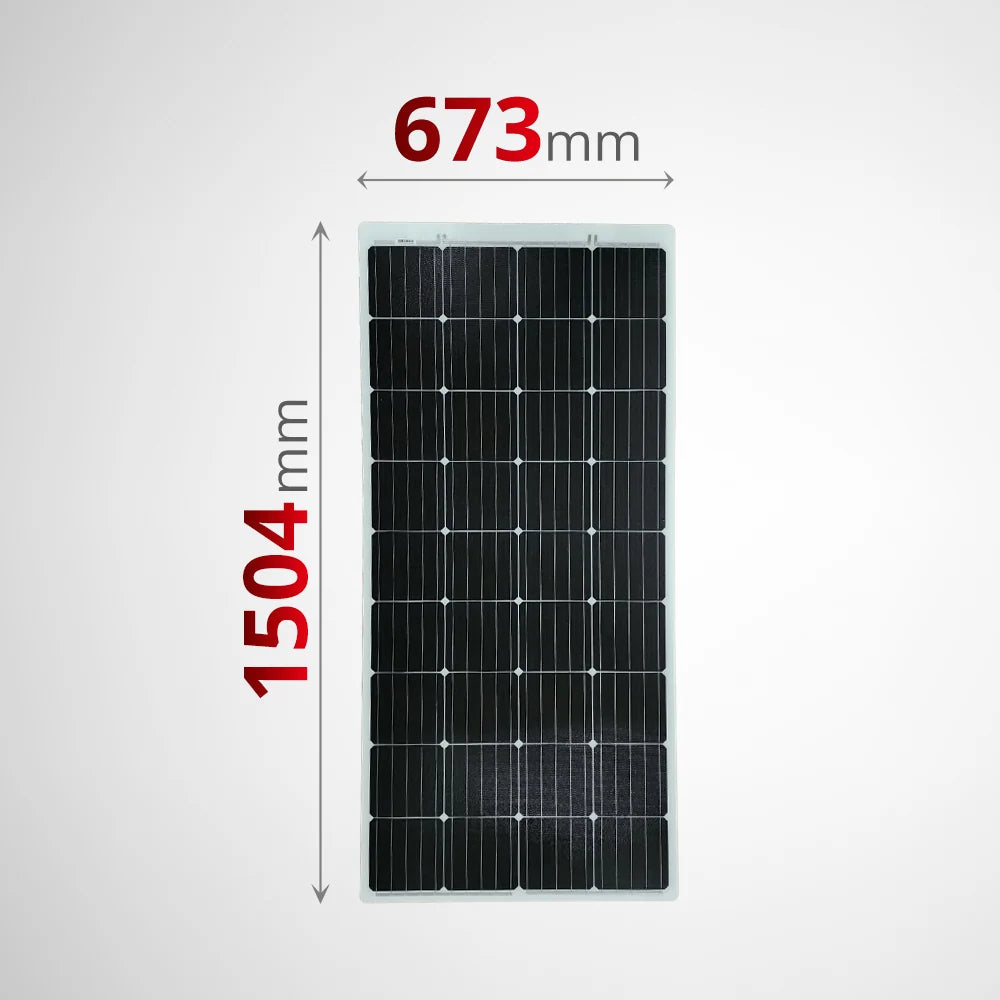

Dimensions: Approx. 1504mm L × 673mm W × 2mm H

Weight: Approx. 3.3kg

---

🔌 SOLAR REGULATOR COMPATIBILITY

With a maximum power voltage of 19.5V and open-circuit voltage of 23.9V, the panel can be used with a suitable solar charge controller designed for the connected battery system.

For 12V battery charging, an appropriately specified MPPT or PWM solar controller should be selected according to the battery chemistry, charging requirements and complete solar-array configuration.

---

🔩 OPTIONAL MOUNTING SOLUTIONS

Several mounting methods are available depending on the surface and installation requirements.

🌬️ Vented Gap Kit
Creates an air gap beneath the panel to assist ventilation and reduce heat transfer into the mounting surface. The supplied information states an approximate installation height increase of 15mm.

📏 High-Bond Double-Sided Adhesive Tape
Provides a low-profile mounting option on appropriate smooth surfaces. Supplied dimensions are approximately 2.3mm H × 12mm W × 16.5m L.

🛠️ Structural Silicone – Fix8
Can be used as an adhesive mounting method where appropriate and where installed in accordance with the manufacturer's instructions.

---

🌡️ VENTILATED MOUNTING OPTION

For applications where panel temperature and heat transfer are a concern, the optional vented mounting system creates approximately 15mm of clearance beneath the solar panel.

This allows increased airflow beneath the panel and can assist with heat management compared with a completely flush installation.

---

✅ APPROVALS & INDUSTRY SUPPORT

The supplied product information states that Sunman eArc panels are approved by the Clean Energy Council for applicable residential and commercial installations.

The supplied information also states that Sunman's technology has received support or endorsement from the Clean Energy Finance Corporation and Australian Renewable Energy Agency.

---

🛡️ WARRANTY

Product Warranty – Building Applications: 10 Years

Product Warranty – Mobile Applications: 5 Years

---

📦 BATCH VARIATIONS

Sunman advises that minor manufacturing changes may occur between production batches.

If this panel is being added to an existing solar array, confirm the current panel specifications against the existing panels before connecting them together.

---

❓ QUICK FAQ

Is this panel suitable for a caravan or motorhome?

Yes. Its approximately 3.3kg weight and 2mm panel thickness make it particularly attractive for caravan, motorhome and other mobile installations where weight and overall roof height are important.

Does the panel have a junction box on top?

No. This version has the junction box positioned underneath the panel, allowing suitable installations to keep the upper surface cleaner and cable routing less exposed.

Can I use it to charge a 12V lithium battery?

Yes, when used with a compatible solar charge controller configured for the battery's required charging profile. The panel itself does not replace the solar regulator.

What is the panel voltage?

The maximum power voltage is 19.5V, with an open-circuit voltage of 23.9V.

Can it be mounted directly to a caravan roof?

Potentially, provided the roof material, surface preparation and mounting system comply with Sunman's installation instructions. Vented and bonded mounting solutions are available depending on the application.

What warranty applies to a caravan installation?

The supplied information states a 5-year product warranty for mobile applications. The 10-year product warranty applies to qualifying building installations.

---

☀️ 175W OF SOLAR POWER AT ONLY 3.3KG

With 175W of rated output, Mono-PERC cells, a 19.5V operating voltage, only 2mm panel thickness and a weight of approximately 3.3kg, the Sunman eArc 175W offers a practical way to add solar capacity without the weight and bulk of a conventional framed glass panel.

Lightweight. Low profile. Built for space and weight-conscious solar installations.
