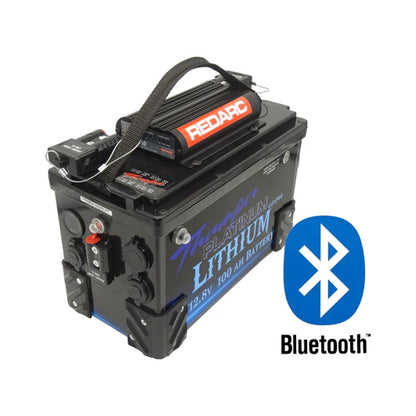

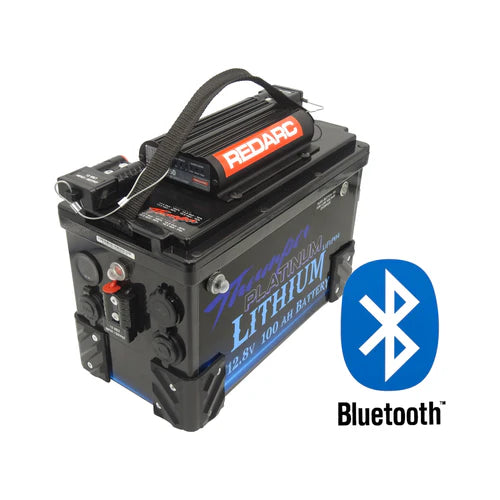

Thumper Lithium Battery Hub 100AH REDARC + Bluetooth

🔋 Thumper Lithium Battery Hub – Bluetooth Enabled

The Thumper Battery Hub is the ultimate compact, portable, and reliable independent battery system. Engineered for adventurers, vanlifers, and off-grid enthusiasts, it delivers maximum usable power in a small footprint — now with Bluetooth technology for remote monitoring and control.

✅ Bluetooth monitoring – Check capacity, voltage, temperature, and even control power remotely.
✅ Lightweight & compact – Perfect for vehicles, boats, or off-grid setups.
✅ High-capacity power – 100% usable LiFePO4 cells with up to 1200W continuous output.
✅ Multiple charging options – DC vehicle, MPPT solar, and 240V AC charging included.

⚡ Key Benefits

• Run a 60L compressor fridge for 3+ days independently

• Charge from any vehicle make, model, or year via the included DC charger

• Sophisticated vehicle charging – complete wiring loom included

• MPPT Solar Ready – 25A (400–450W) solar charging

• 240V AC battery charger included for home or workshop

• 5-year battery warranty, 2-year Redarc DC charger warranty

The Thumper Lithium Battery Hub is the smallest, most powerful independent battery system on the market, offering the largest usable capacity with 100% down to 12.4V. Fully monitored via Bluetooth App for peace of mind.

📦 What’s Included

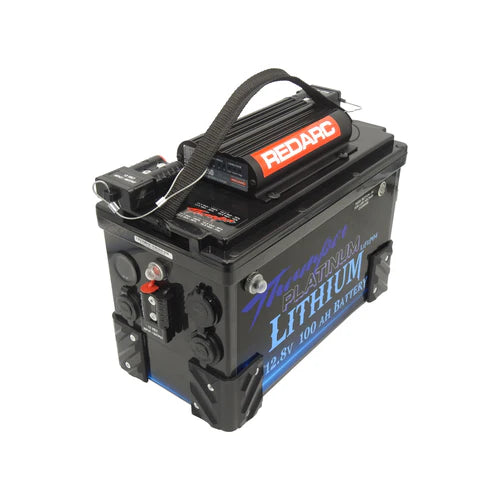

• Thumper Lithium Battery Hub 100AH

• Redarc BCDC1225D DC Charger (optional model available)

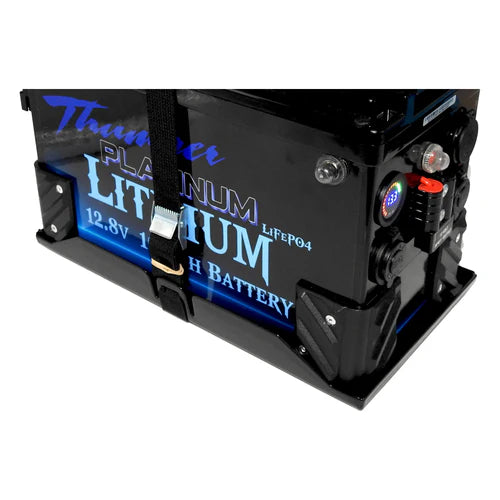

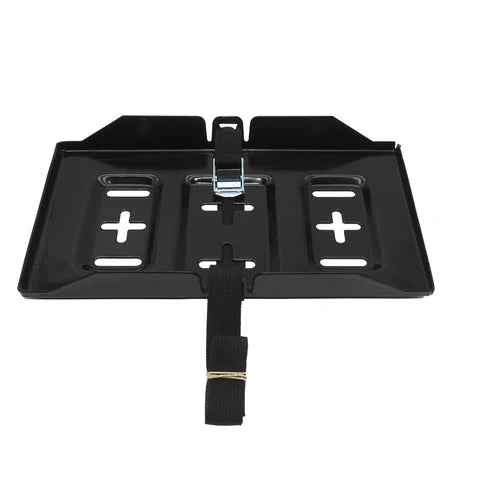

• Secure battery mounting tray & strap

• Complete vehicle wiring loom

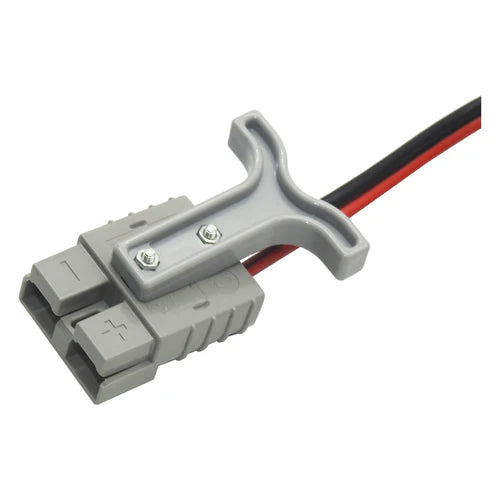

• 240V 10A Battery Charger with 50A Anderson connector

• Built-in Bluetooth APP

• 5-year battery warranty

• 2-year DC charger warranty

🔧 Specifications

Dimensions & Weight:

• Length: 355mm | Width: 190mm | Height: 260mm

• Weight: 11.6kg

Operating Temperature:

• Discharge: -23°C ~ 65°C | Charge: -3°C ~ 65°C | Storage: -20°C ~ 45°C

• BMS High Temp Cutout/Reconnect: 80°C / 50°C

Charging:

• Recommended Current: 25A | Max Current: 100A

• Recommended Voltage: 14.2 ± 0.2V | Max Voltage: 14.8 ± 0.2V

Discharge:

• Max Continuous: 100A (1200W)

• Recommended Voltage: 10.8 ± 0.2V | Max Voltage: 8.8 ± 0.2V

• Round Trip Efficiency: >99.5% | Self-Discharge: ≤3% / month

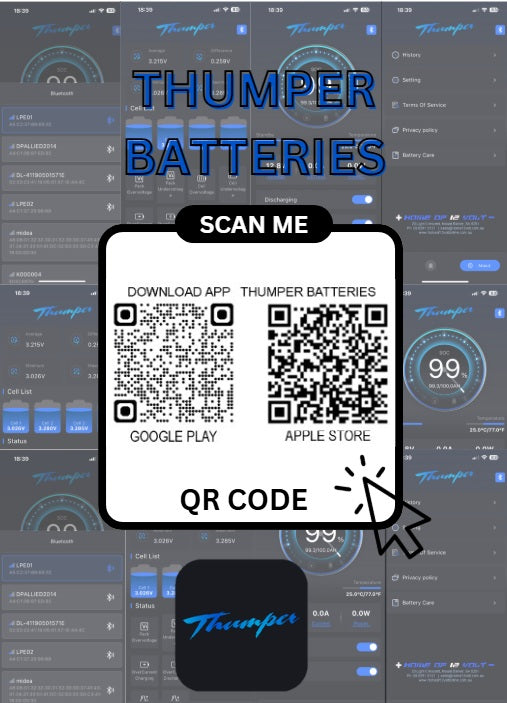

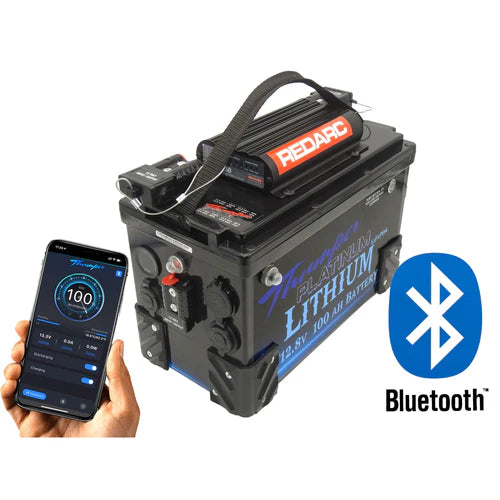

📱 Bluetooth App Features

Monitor and control your battery with the Thumper App (FREE download):

• Battery capacity & voltage

• Percentage remaining (0–100%)

• Charge & discharge current

• Remote power ON/OFF

• Auto cell calibration & protection

• Estimated time remaining & AH capacity

• Total cell balancing

• Dual battery sensor monitoring

• Parallel linking & AH reprogramming (passcode required)

Use the Charge/Discharge switches to remotely isolate the battery for storage or maintenance.

🔌 Charging Options

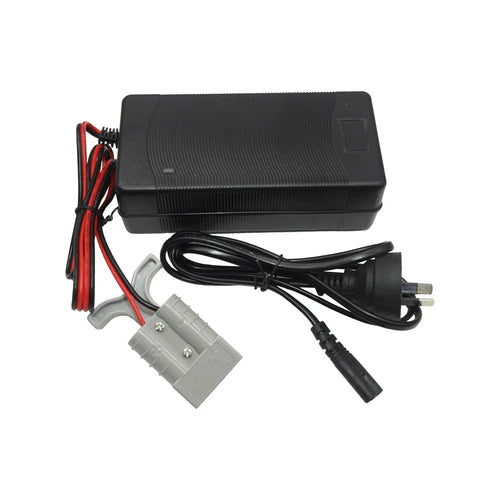

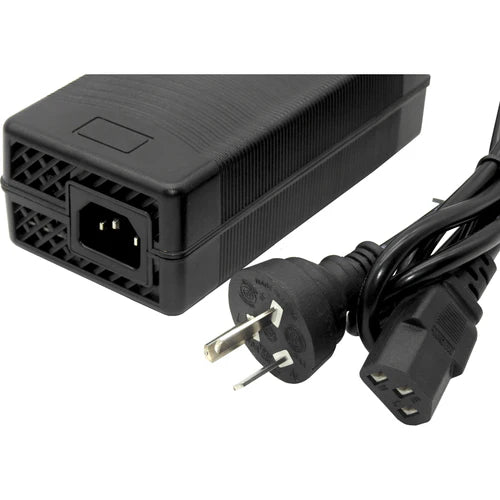

1. 240V AC Charger

• Fully regulated 10A charger

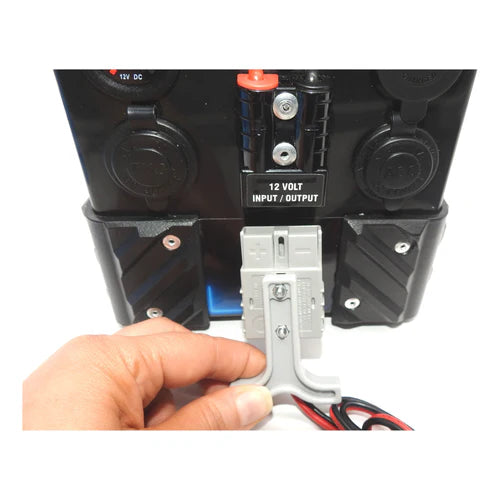

• Connects directly to 50A Anderson input

• Red light = charging, Green = fully charged

• Safe for permanent connection

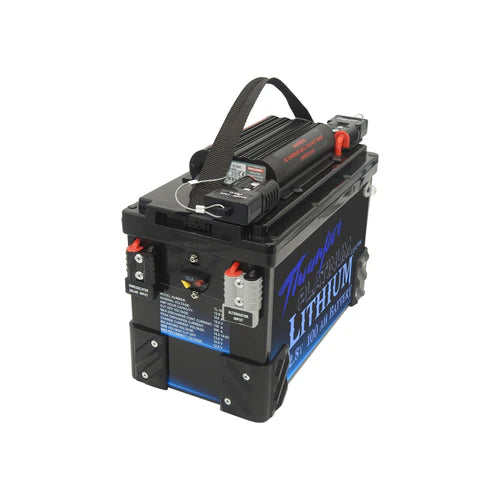

2. DC Vehicle Charging (Redarc BCDC1225D)

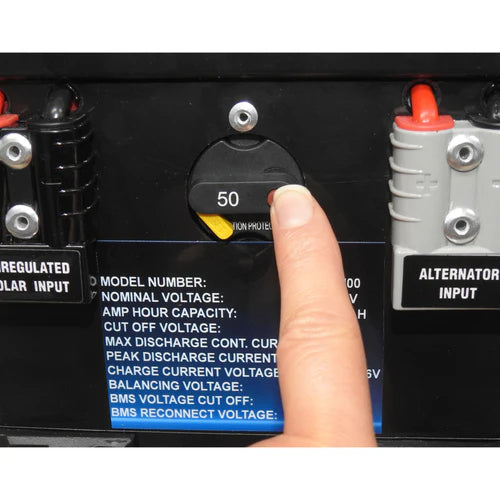

• Hardwired with circuit protection

• Alternator Input: regulated charging from vehicle

• Low Voltage Switch: ignition-activated charging option

• Supports unregulated solar input (9–33V, ≤420W)

3. MPPT Solar Input

• Up to 25A (400–450W)

• Connect via Anderson input

• Supports dual battery sensor monitoring

🛠 Easy Installation

• Complete mounting tray & strap included

• Full vehicle wiring loom with instructions included


🔒 Safety & Reliability

• Thermal stability & short-circuit protection

• Over-voltage & under-voltage protection

• Dual temperature sensors monitored via app

• Virtually maintenance-free

With Thumper, you get the most compact, powerful, and intelligent independent battery system for off-grid adventures, vehicles, or emergency power setups.
