THUMPER
Platinum Lithium 100Ah LiFePO4 Bluetooth Battery
Platinum Lithium 100Ah LiFePO4 Bluetooth Battery
SKU:TL100-100BMS
Couldn't load pickup availability
š Thumper Platinum Lithium 100Ah LiFePO4 Bluetooth Battery
12.8V 100Ah LiFePO4 Bluetooth battery with built-in Thumper app monitoring, serviceable design, 100A BMS, IP65 rating, upgradeable BMS option, and 5-year warranty.
The Thumper Platinum Lithium 100Ah LiFePO4 Bluetooth Battery is a high-quality deep cycle lithium battery designed for caravans, 4WDs, RVs, motorhomes, marine systems, camping setups, and off-grid auxiliary power applications.
Built with prismatic LiFePO4 cells, this battery delivers reliable 100Ah lithium capacity in a lightweight, fully sealed design that can be mounted on any angle for flexible installation.
What sets the Thumper Platinum Lithium range apart is its serviceable construction. The battery lid can be removed for servicing, and the BMS capacity can be upgraded if required. This makes it a flexible option for users who may need higher discharge capability in the future.
With built-in Bluetooth monitoring, an internal Battery Management System, IP65 protection, high cycle performance, and a 5-year warranty, the Thumper Platinum 100Ah battery is designed for dependable touring and off-grid power.
ā Key Benefits
š 100Ah Lithium Deep Cycle Capacity
Provides reliable 12.8V LiFePO4 power for auxiliary and off-grid applications.
š± Built-In Bluetooth Monitoring
Monitor battery status through the Thumper Batteries App.
š§ Internal Battery Management System
Provides protection for safe charging, discharging, temperature control, voltage protection, and short circuit protection.
š§ Serviceable Battery Design
The battery lid can be removed, allowing servicing or BMS upgrade work to be carried out.
ā” 100A Continuous Discharge
Supports up to 100A continuous discharge as standard.
š Upgradeable BMS Option
BMS upgrade available, with options to support 120A, 150A and 200A discharge capacity for larger loads, Select in drop down menu above.
š Supports Loads up to 1200W
With a 100A BMSĀ the battery can support inverter loads up to approximatelyĀ 1200W, subject to correct installation with suitable cable size.
š 300A Peak Discharge
Supports short peak loads up to 300A for 1ā3 seconds.
āļø Lightweight Lithium Construction
Less than half the weight of a traditional lead acid battery while still offering heavy-duty deep cycle performance.
š Higher Voltage for Longer Runtime
Maintains terminal voltage higher throughout the cycle, helping appliances run longer and more efficiently.
š§° Flexible Mounting
Fully sealed construction allows the battery to be mounted on any angle.
š”ļø IP65 Rated
Designed with IP65 protection for improved durability in demanding installations.
š Parallel & Series Connection Support
Parallel connection has no limit, and the battery is specified for 12V to 48V series use, maximum 4 batteries in series.
š ļø 5-Year Warranty
Backed by a 5-year warranty from date of purchase.
š§ Suitable Applications
š Caravan lithium battery systems
š 4WD auxiliary battery setups
šļø Camping and off-grid power systems
š Motorhomes and RVs
š„ļø Marine auxiliary systems
āļø Solar battery storage
š§ Fridges and freezers
š” Starlink and communications equipment
ā” Inverter power systems
š Parallel lithium battery banks
š 12V to 48V lithium systems

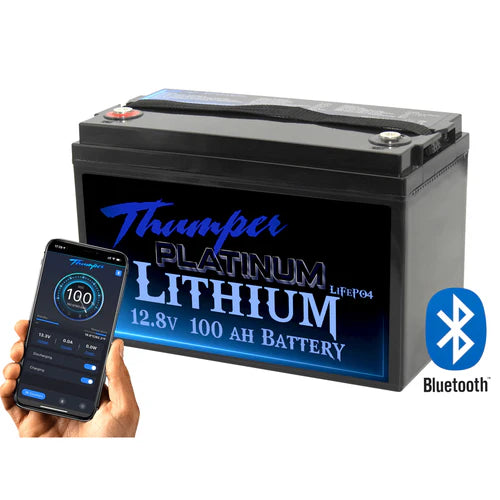

š± Bluetooth App Monitoring
The Thumper Batteries App is available as a free download and allows the battery to be monitored and controlled from your smartphone.
| Bluetooth App Feature | Details |
|---|---|
| Battery Capacity | View available battery capacity |
| Battery Voltage | Monitor live battery voltage |
| Percentage Remaining | View remaining battery level from 0ā100% |
| Charging Current | Monitor charge input current |
| Discharge Current | Monitor load output current |
| Battery Output Disconnect | Remotely disconnect discharge loads |
| Battery Charge Disconnect | Remotely disconnect charging inputs |
| Auto Cell Calibration | Supports automatic cell calibration |
| Auto Cell Protection | Helps protect internal cells |
| Estimated Time Remaining | View estimated runtime |
| Estimated Charging Time | View estimated recharge time |
| Ah Capacity Remaining | Monitor remaining amp hour capacity |
| Total Cell Balancing | View cell balancing data |
| High Cell Voltage | Monitor high cell voltage condition |
| Low Cell Voltage | Monitor low cell voltage condition |
| Cell Voltage Difference | View cell voltage variation |
| Dual Battery Sensor Monitoring | Supports dual battery sensor monitoring |
| Parallel Link Reprogramming | Ability to parallel link and reprogram Ah capacity, passcode required |
Some advanced app features may require a passcode.
š Bluetooth Charge & Discharge Control
The Bluetooth App allows remote control of charge and discharge functions.
| App Control | Function |
|---|---|
| Charge Switch | Remotely disconnects all charge loads from the battery |
| Discharge Switch | Remotely disconnects all discharge loads from the battery |
| Storage Use | Discharge switch can be turned off when storing the battery |
| Remote Isolation | Allows charge or discharge control through the app |
Turning the charge switch OFF prevents the battery from accepting charge from any charging source, including a DC battery charger.
Turning the discharge switch OFF prevents the battery from running appliances by disconnecting all loads from the battery. This is useful when storing the battery.
š§ Internal Battery Management System
The BMS is the internal protection and control system inside the lithium battery.
| BMS Function | Details |
|---|---|
| Safe Charging Control | Helps manage charge input |
| Safe Discharge Control | Helps manage output loads |
| Over Temperature Protection | Protects against excessive temperature |
| Under Voltage Cut-Off | Helps prevent excessive discharge |
| Over Voltage Cut-Off | Helps protect against overcharging |
| Short Circuit Protection | Built-in internal protection |
| Bluetooth Capability | Enables app-based monitoring and control |
| Protection Parameters | Controls safe battery operation |
The BMS helps protect the battery during charging, discharging, storage, and high-load use.
š§ Serviceable & Upgradeable Design
The Thumper Platinum Lithium range is designed with a serviceable construction.
| Feature | Details |
|---|---|
| Serviceable Battery | Lid can be removed for servicing |
| BMS Upgrade Available | BMS capacity can be upgraded after purchase |
| BMS Output | 100A continuous discharge |
| Inverter Load Support | Up to 1200W with 100A BMS |
Professional installation and correct cable sizing are required when increasing discharge capacity.
š Connection Options
| Connection Type | Details |
|---|---|
| Parallel Connection | Non-limited |
| Series Connection | 12V to 48V supported |
| Maximum Series Setup | Maximum 4 batteries in series |
| System Compatibility | Confirm charger, inverter, BMS, and installation requirements before series or parallel wiring |
Always confirm your full system requirements before wiring batteries in parallel or series.
š Technical Specifications
| Specification | Details |
|---|---|
| Product | Thumper Platinum Lithium 100Ah LiFePO4 Bluetooth Battery |
| Model No. | TL100-100BMS |
| Battery Type | LiFePO4 Lithium Deep Cycle |
| Cell Type / Chemistry | Prismatic / LiFePO4 |
| Nominal Voltage | 12.8V |
| Rated Capacity | 100Ah |
| Bluetooth | Yes |
| IP Rating | IP65 |
| Continuous Discharge | 100A |
| BMS Upgrade Option | Available |
| Parallel Connection | Non-limited |
| Series Connection | 12V to 48V, maximum 4 batteries in series |
| Warranty | 5 years from date of purchase |
š Dimensions & Weight
| Measurement | Details |
|---|---|
| Length | 328mm |
| Width | 172mm |
| Height | 220mm |
| Weight | 9.75kg |
š”ļø Operating Temperature Range
| Operating Condition | Rating |
|---|---|
| BMS High Temperature Cut-Out | 80Ā°C |
| BMS Reconnect Temperature | 50Ā°C |
| Discharge Temperature | -20Ā°C to 60Ā°C |
| Charge Temperature | -20Ā°C to 45Ā°C |
| Storage Temperature | -5Ā°C to 35Ā°C |
š Charging Specifications
| Charging Specification | Details |
|---|---|
| Recommended Charge Current | 10A ā 50A |
| Maximum Charge Current | 70A |
| Recommended Charger Type | Lithium charger |
| Compatible Charger Settings | Lithium setting |
Ā
ā” Discharge Specifications
| Discharge Specification | Details |
|---|---|
| Maximum Continuous Discharge Current | 100A |
| Inverter Load Support | Up to 1200W |
| Peak Discharge Current | 300A for 1ā3 seconds |
| BMS Current Cut-Off | >100.5A for 10 seconds |
| BMS Current Cut-Off | >120A for 3 seconds |
| BMS Current Cut-Off | >150A for 1 second |
| BMS Voltage Cut-Off | 10.0V |
| BMS Voltage Reconnect | 12.0V |
| Self Discharge Per Month | ā¤3% |
ā ļø Important Usage Notes
Please confirm your required battery capacity, charging system, cable sizing, fuse protection, inverter size, BMS rating, mounting space, parallel wiring setup, series wiring setup, and system compatibility before purchase or installation.
Important:
ā
Built-in Bluetooth monitoring system
ā
Serviceable battery design
ā
BMS upgrade available
ā
Fully sealed and can be mounted on any angle
ā
Parallel connection is non-limited
ā
Series connection supported from 12V to 48V, maximum 4 batteries in series
ā
Compatible with Lithium charging settings
ā Not designed for engine starting
ā Not designed for under-bonnet applications
š Why Choose the Thumper Platinum Lithium 100Ah Bluetooth Battery?
The Thumper Platinum Lithium 100Ah LiFePO4 Bluetooth Battery is designed for users who want reliable lithium power, Bluetooth monitoring, serviceable construction, and future upgrade flexibility.
With a standard 100A BMS, optional 120A,150A and 200A BMS upgrades, IP65 rating, prismatic LiFePO4 cells, lightweight construction, flexible mounting, and app-based battery control, it is a strong choice for caravans, 4WDs, RVs, marine systems, and off-grid power setups.
š¦ Whatās Included
š 1 x Thumper Platinum Lithium 100Ah LiFePO4 Bluetooth Battery ā TL100-100BMS
š Order with Confidence
Choose the Thumper Platinum Lithium 100Ah LiFePO4 Bluetooth Battery for reliable lithium deep cycle power, Bluetooth app monitoring, serviceable construction, BMS upgrade flexibility, and dependable performance for touring, auxiliary, and off-grid power systems.
