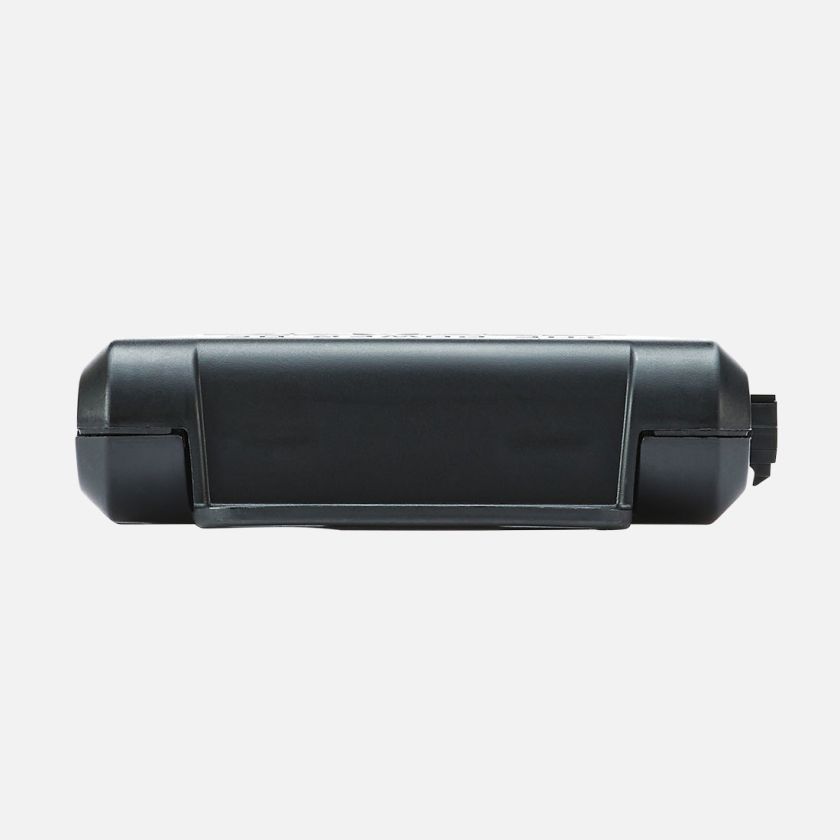

Tow-Pro Elite EBRH-ACCV3 Electric Brake Controller

🚐 REDARC TOW-PRO® ELITE ELECTRIC TRAILER BRAKE CONTROLLER

EBRH-ACCV3 – Proportional & User Controlled Trailer Braking for 12V & 24V Vehicles

⚡ Advanced electric trailer brake control with selectable braking modes, Active Calibration, compact remote operation and support for demanding towing applications.

The REDARC Tow-Pro® Elite EBRH-ACCV3 is a premium electric trailer brake controller designed to provide smooth, dependable and adjustable trailer braking across everyday road use, touring, off-road conditions and demanding towing environments.

Featuring selectable Proportional and User Controlled braking modes, the Tow-Pro® Elite allows the driver to choose the braking behaviour that best suits the road surface, terrain, trailer and vehicle combination.

Its compact remote-head design requires minimal dashboard space, while the main control unit can be securely installed in virtually any orientation inside the vehicle cabin. Active Calibration continuously learns and confirms the vehicle’s direction of travel, simplifying installation and helping deliver accurate proportional braking.

---

⚡ KEY FEATURES

🚐 Proportional Braking Mode
Automatically applies trailer braking in proportion to vehicle deceleration for smooth, predictable braking during highway and everyday towing.

🏕️ User Controlled Braking Mode
Applies trailer brakes according to the level selected by the driver, making it particularly useful for off-road, loose-surface and precision braking applications.

🧭 Active Calibration
Continuously monitors vehicle direction of travel and learns the controller’s installed orientation while driving.

🔄 Flexible Main Unit Mounting
The main controller can be securely mounted in any orientation inside the vehicle cabin without requiring manual levelling.

⚡ 12V & 24V Vehicle Compatibility
Designed to operate electric trailer brakes from compatible 12V or 24V vehicle electrical systems without manual voltage selection.

🚛 Supports Up to 3 Trailer Axles
Suitable for compatible electric-brake trailers with braking systems across up to three axles.

🎛️ Compact Remote Head
Keeps dashboard intrusion to a minimum while placing braking adjustment and manual override within convenient reach of the driver.

🛑 Manual Trailer Brake Override
Allows trailer brakes to be applied independently when required, including situations where trailer-only braking may help manage sway.

🔵 Easy LED Status Indication
The remote control LED provides clear feedback for operating mode, braking level, calibration and detected faults.

🧠 Intelligent Park Brake Feature
Can intelligently manage trailer braking when the vehicle remains stationary with the brakes applied.

🔌 Electric/Hydraulic Compatibility
Suitable for compatible electric/hydraulic trailer braking systems when installed according to the braking-system and vehicle requirements.

🛡️ Integrated Diagnostics
Built-in fault monitoring uses colour-coded LED sequences to alert the driver to potential controller, wiring or trailer-brake issues.

---

🔵 PROPORTIONAL BRAKING MODE

Proportional Mode is designed for normal road, highway and everyday towing applications.

In this mode, the Tow-Pro® Elite measures vehicle deceleration and applies the trailer brakes proportionally.

Simply put, the harder the tow vehicle brakes, the harder the trailer brakes are applied, up to the maximum level selected using the control knob.

This provides smooth and intuitive trailer braking with minimal driver input once the desired braking level has been set.

---

🟢 USER CONTROLLED BRAKING MODE

User Controlled Mode provides direct driver-selected trailer braking output.

Instead of automatically varying trailer brake output according to vehicle deceleration, the Tow-Pro® Elite applies the trailer brakes according to the braking level selected on the control knob.

This mode can be particularly useful for off-road towing, loose surfaces and other situations where the driver wants more direct control over trailer brake force.

The selected braking level should always be adjusted to suit the trailer load, road surface and operating conditions.

---

🧭 ACTIVE CALIBRATION TECHNOLOGY

The Tow-Pro® Elite incorporates Active Calibration technology to simplify installation and operation.

After installation, the controller learns and continually confirms its orientation and the vehicle’s direction of travel while the vehicle is driven and the brakes are applied.

Calibration can occur with or without a trailer connected.

Under normal driving conditions, the controller progressively becomes more confident in its orientation until full Proportional Mode operation is available.

This technology eliminates the need for the installer to manually level the main control unit.

---

🔄 FLEXIBLE INSTALLATION

The Tow-Pro® Elite main unit can be securely installed in any orientation inside the vehicle cabin.

This provides significant flexibility when finding a suitable installation position behind the dashboard or within another protected cabin location.

The unit must be securely mounted to a fixed surface so that its orientation cannot change after calibration.

⚠️ IMPORTANT: The main unit must be installed inside the vehicle cabin and protected from engine heat, water, salt spray, excessive humidity and other environmental conditions that may damage the controller.

---

🎛️ MINIMAL DASHBOARD SPACE REQUIRED

Unlike traditional brake controllers that require a large control box to be mounted on the dashboard, the Tow-Pro® Elite uses a separate compact remote head.

The main controller can be concealed behind the dashboard while the driver interacts with the small rotary control knob.

The remote head can be installed in a suitable dashboard, centre-console or compatible switch-panel position, helping maintain a clean factory-style interior.

---

🛑 MANUAL TRAILER BRAKE OVERRIDE

Pressing the Tow-Pro® Elite control knob while driving activates the manual trailer-brake override.

This applies the trailer brakes independently of the normal vehicle braking input.

The function can be useful where trailer-only braking is required, including certain trailer-sway situations.

In Proportional Mode, manual override applies a light trailer-braking level. In User Controlled Mode, it applies the braking level selected on the control knob.

⚠️ IMPORTANT: Manual override supplements the normal vehicle braking system and must not be used as a replacement for the vehicle foot brake.

---

⚡ 12V & 24V VEHICLE SYSTEMS

The Tow-Pro® Elite has an operating voltage range of approximately 9V to 32V and is designed for use with compatible 12V and 24V vehicle electrical systems.

For conventional electric trailer brakes, the controller can operate from either 12V or 24V vehicle electrical systems without requiring manual voltage selection or an additional voltage converter for the controller itself.

This makes the Tow-Pro® Elite particularly versatile across passenger vehicles, 4WDs, commercial vehicles and other compatible tow vehicles.

---

🔌 ELECTRIC/HYDRAULIC TRAILER BRAKE SUPPORT

The Tow-Pro® Elite can also be used with compatible electric/hydraulic trailer braking systems.

On compatible 12V vehicle systems, the controller can provide the brake-control signal required by suitable electric/hydraulic systems, although the hydraulic actuator may require its own separate power supply.

For a 24V vehicle supplying a braking system that requires 12V control signals, a suitable adapter such as the REDARC EB24A may be required.

⚠️ IMPORTANT: Always confirm compatibility and wiring requirements with the electric/hydraulic actuator manufacturer before installation.

---

🚛 SUPPORTS TRAILERS UP TO 3 AXLES

The Tow-Pro® Elite is designed to operate compatible electric trailer braking systems across trailers with up to three axles.

This makes it suitable for a broad range of caravans, camper trailers, boat trailers, car trailers, equipment trailers and other braked towing applications.

⚠️ IMPORTANT: Trailer mass, brake requirements and brake-controller regulations vary by jurisdiction. Always ensure the trailer, braking system and tow vehicle comply with applicable legal requirements.

---

🛡️ SWAY CONTROL & BRAKING SYSTEM COMPATIBILITY

The Tow-Pro® Elite is approved for use with compatible AL-KO ESC and Dexter DSC sway-control systems when installed according to the relevant manufacturer requirements.

The controller also provides support for AL-KO iQ7 electric/hydraulic systems, with configurable iQ7 warning functionality available through the Tow-Pro® Elite controls.

Always verify the installation requirements of any ESC, sway-control or electric/hydraulic system fitted to the trailer.

---

🚦 ADR-COMPLIANT REMOTE INSTALLATION

When correctly installed according to REDARC’s instructions, the compact Tow-Pro® Elite remote head is designed to comply with relevant Australian Design Rule requirements for dashboard-mounted controls.

Its remote-head architecture also helps avoid bulky equipment around the driver’s knees and lower dashboard area.

---

🧠 INTELLIGENT PARK BRAKE FEATURE

When the controller detects that the vehicle remains stationary with the brakes applied for more than approximately three seconds, the Tow-Pro® Elite can intelligently manage trailer-brake output.

This helps provide sufficient braking effort to reduce the risk of the trailer combination rolling while avoiding unnecessary continuous maximum trailer-brake application.

---

🔵 LED STATUS & FAULT INDICATION

The Tow-Pro® Elite remote-head LED provides clear visual feedback to the driver.

• Blue indication – Proportional Mode
• Green indication – User Controlled Mode
• Blue/Green flashing – Active Calibration in progress
• Increasing Red indication – Trailer braking output increasing
• Other flashing sequences – Diagnostic or fault indication

The integrated diagnostic system can detect a range of potential trailer-brake, wiring, supply and controller faults.

⚠️ IMPORTANT: Do not tow while an active fault code is present. A fault may indicate unreliable trailer braking, brake-light failure or another condition requiring investigation.

---

📐 PRODUCT SPECIFICATIONS

Brand: REDARC

Product: Tow-Pro® Elite Electric Trailer Brake Controller

Part number: EBRH-ACCV3

Controller type: Electric Trailer Brake Controller

Operating modes: Proportional & User Controlled

Operating voltage range: 9V–32V

Vehicle system compatibility: Compatible 12V & 24V systems

Maximum trailer axles: Up to 3 axles

Standby current: Less than 5mA

Operating temperature: -20°C to +60°C

Main unit weight: Approximately 200g / 7.05oz

Main unit mounting: Any secure fixed orientation inside vehicle cabin

Calibration: Automatic Active Calibration

Manual trailer brake override: Yes

Electric trailer brakes: Supported

Electric/hydraulic trailer brakes: Supported in compatible installations

24V electric/hydraulic applications: Suitable adapter such as REDARC EB24A may be required

Warranty: 2 years

---

📏 MAIN UNIT DIMENSIONS

Main unit length: Approximately 84.5mm

Main unit width: Approximately 67mm

Main unit height: Approximately 30mm

The remote-head installation requires considerably less visible dashboard space than a conventional dash-mounted brake controller.

---

🚙 IDEAL APPLICATIONS

• Caravans
• Camper trailers
• Boat trailers
• Car trailers
• Horse floats
• Equipment trailers
• Off-road trailers
• Touring and recreational towing
• 4WD towing applications
• Commercial towing applications
• Compatible single-, tandem- and triple-axle electric-brake trailers
• Compatible electric/hydraulic trailer braking systems

---

📦 WHAT’S INCLUDED?

• 1 × REDARC Tow-Pro® Elite EBRH-ACCV3 Main Unit
• 1 × Remote Head Assembly
• 1 × Remote Head Body
• 1 × Remote Head Nut
• 1 × Remote Head Knob
• 1 × Remote Head Bezel
• 1 × Main Unit Wiring Connector & 0.5m Wiring
• 1 × 1m Remote Head Cable

---

⚠️ INSTALLATION & COMPATIBILITY INFORMATION

The Tow-Pro® Elite is a safety-critical towing component and must be installed correctly to provide dependable trailer braking.

Before purchase and installation, confirm:

• Tow vehicle electrical system – 12V or 24V
• Trailer brake type
• Number of braked trailer axles
• Vehicle brake-light trigger compatibility
• Correct power and earth connections
• Required fuse or circuit-breaker protection
• Correct wiring gauge for the installation
• Remote-head mounting position
• Electric/hydraulic actuator requirements if applicable
• ESC or sway-control compatibility if fitted
• Vehicle and trailer legal towing requirements

⚠️ IMPORTANT: REDARC recommends installation by a suitably qualified person. Incorrect brake-controller wiring can result in reduced or complete loss of trailer braking.

⚠️ IMPORTANT: An appropriately rated fuse or circuit breaker must be installed close to the vehicle start battery in accordance with the installation instructions.

⚠️ IMPORTANT: Always test trailer brake operation at low speed each time a trailer is connected before commencing normal towing.

---

❓ FREQUENTLY ASKED QUESTIONS

What is the REDARC Tow-Pro® Elite?

The Tow-Pro® Elite EBRH-ACCV3 is an electronic trailer brake controller designed to operate compatible electric and electric/hydraulic trailer braking systems.

What is the difference between Proportional and User Controlled modes?

Proportional Mode varies trailer braking according to vehicle deceleration, making it well suited to normal road and highway towing. User Controlled Mode applies trailer braking according to the level selected by the driver and can be useful for off-road or precision braking applications.

Does the Tow-Pro® Elite automatically calibrate?

Yes. Active Calibration allows the controller to learn and continually confirm the direction of travel and its installed orientation while driving.

Can the Tow-Pro® Elite calibrate without a trailer attached?

Yes. Active Calibration can occur with or without a trailer connected.

How long does calibration take?

Under normal driving conditions, the controller is designed to learn its mounting orientation within approximately 20 perceptible brake applications.

Can the main unit be mounted at an angle?

Yes. The main controller can be installed in any orientation provided it is securely fixed and cannot move or change orientation after installation.

Does the controller have to be mounted level?

No. Active Calibration means the main unit does not require traditional manual levelling.

Can I install the main unit under the bonnet?

No. The main unit should be installed inside the vehicle cabin and protected from engine heat, water, salt spray, humidity and other damaging environmental conditions.

Will it work on a 12V vehicle?

Yes. The Tow-Pro® Elite is designed for compatible 12V vehicle electrical systems.

Will it work on a 24V vehicle?

Yes. The controller operates from compatible 24V vehicle systems and has an operating voltage range of approximately 9V to 32V.

Do I need to manually select 12V or 24V?

No manual voltage selection is required for conventional compatible electric trailer brake installations.

How many trailer axles can the Tow-Pro® Elite control?

The controller is designed for compatible electric-brake trailers with up to three axles.

Is it suitable for tandem-axle trailers?

Yes. A tandem-axle trailer falls within the controller’s maximum three-axle capability, provided the braking system and installation are otherwise compatible.

Can it operate electric-over-hydraulic trailer brakes?

Yes. The Tow-Pro® Elite can operate compatible electric/hydraulic braking systems when installed according to the actuator manufacturer’s electrical requirements.

What about electric/hydraulic brakes on a 24V vehicle?

A suitable adapter such as the REDARC EB24A may be required to provide the appropriate signals and supply arrangement for compatible 24V vehicle installations.

Is it compatible with AL-KO ESC?

Yes. The supplied product information identifies the Tow-Pro® Elite as approved for use with compatible AL-KO ESC systems when correctly installed.

Is it compatible with Dexter DSC?

Yes. The supplied product information identifies the Tow-Pro® Elite as approved for use with compatible Dexter DSC sway-control systems when correctly installed.

Does it work with AL-KO iQ7?

Yes. The Tow-Pro® Elite supports AL-KO iQ7 applications, with a configurable iQ7 warning function available through the controller.

Does the controller have a manual override?

Yes. Pressing the control knob while driving activates trailer-only manual braking.

Can I adjust the manual override braking force?

Yes. Braking force can be adjusted using the gain control knob while the manual override is being applied.

Can manual override be used instead of the vehicle brakes?

No. Manual override is designed to supplement the normal braking system and should not replace use of the vehicle foot brake.

Will the trailer brakes work while reversing?

The Tow-Pro® Elite is designed to apply trailer brakes while travelling either forward or in reverse. Actual braking effectiveness in reverse also depends on the mechanical design of the trailer braking system.

What does a Blue LED mean?

A solid Blue LED indicates Proportional Mode.

What does a Green LED mean?

A solid Green LED indicates User Controlled Mode.

Why is the LED flashing Blue and Green?

A Blue/Green flashing sequence normally indicates that Active Calibration is still in progress rather than a controller fault.

What does the Red LED indicate?

The LED transitions toward Red while trailer braking is being applied. Greater Red intensity corresponds with increased trailer-braking force.

Does the Tow-Pro® Elite have fault diagnostics?

Yes. The controller monitors its electrical system and uses various LED flash sequences to indicate detected wiring, supply or braking-system faults.

Can I keep towing if a fault code appears?

No. A fault code should be investigated before towing continues because it may indicate unreliable trailer braking, brake-light failure or another unsafe condition.

Can the remote head cable be extended?

REDARC advises against cutting and extending the supplied remote-head cable. Alternative purpose-built cable lengths should be used where required.

Can I power the Tow-Pro® Elite from a cigarette lighter socket?

No. Typical accessory power sockets are not suitable for the current requirements of a trailer brake controller and may not provide continuous power.

Does the controller require a fuse or circuit breaker?

Yes. An appropriately rated fuse or circuit breaker must be fitted close to the vehicle start battery in accordance with the REDARC installation instructions.

Does the Tow-Pro® Elite convert trailer-light voltage?

No. The Tow-Pro® Elite is not a trailer-light voltage converter. Vehicle and trailer lighting voltages must be compatible with the installation.

Is professional installation recommended?

Yes. Because correct wiring and reliable trailer braking are safety-critical, REDARC recommends installation by a suitably qualified person.

What should I check before towing?

Confirm correct trailer brake operation, brake-light operation, controller setting, breakaway-system condition where fitted, hitch security, safety chains and any weight-distribution equipment before each trip.

What is the operating temperature range?

The Tow-Pro® Elite has a specified operating temperature range of approximately -20°C to +60°C.

How much does the main controller weigh?

The main Tow-Pro® Elite controller weighs approximately 200g.

What warranty is supplied?

The supplied specifications list a 2-year warranty for the Tow-Pro® Elite.

---

🚐 ADVANCED TRAILER BRAKING CONTROL FOR ON-ROAD & OFF-ROAD TOWING

Choose the REDARC Tow-Pro® Elite EBRH-ACCV3 for intelligent, adjustable and compact trailer braking control across a broad range of towing applications.

With selectable Proportional and User Controlled modes, Active Calibration, 12V and 24V operation, support for up to three trailer axles, manual override and advanced fault diagnostics, the Tow-Pro® Elite provides serious braking control without taking over your dashboard.

Upgrade your towing setup with proven REDARC Tow-Pro® Elite trailer brake control.
